IP4788CZ32J
  • Share:

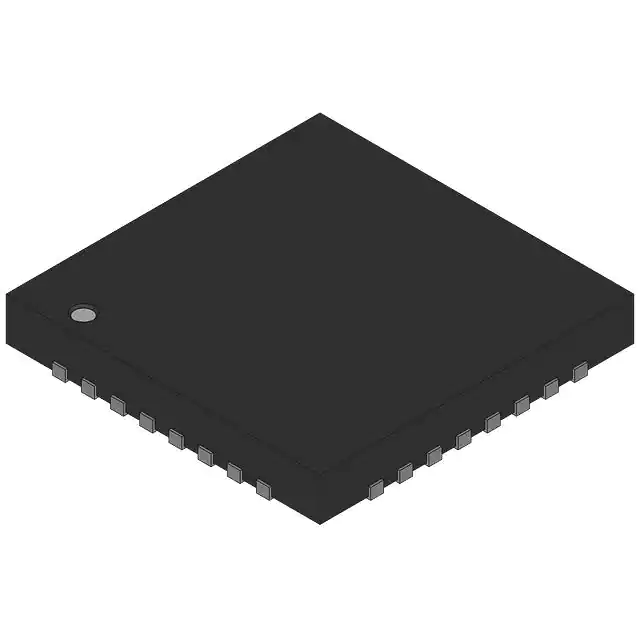

Nexperia USA Inc. IP4788CZ32J

Manufacturer No:
IP4788CZ32J
Manufacturer:
Nexperia USA Inc.
Package:
Bulk
Description:
IP4788CZ32 - DVI AND HDMI INTERF
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The IP4788CZ32J is a specialized interface IC produced by Nexperia USA Inc. This component is designed to provide robust interface solutions, particularly for DVI and HDMI applications. It features a 32-pin HVQFN (High-Voltage Quad Flat No-Lead) package with an exposed pad, which enhances thermal management and electrical performance. The IC is industrial-grade, ensuring reliability and durability in various operational environments.

Key Specifications

ParameterValue
ManufacturerNexperia USA Inc.
Part NumberIP4788CZ32J
Package Type32-HVQFN (5x5) with Exposed Pad
Number of Pins32
Supply Voltage5V
Power Consumption50mW
Interface SupportDVI and HDMI
ESD ProtectionYes
Overcurrent ProtectionYes
RoHS ComplianceROHS3 Compliant
Usage LevelIndustrial Grade

Key Features

  • Supports DVI and HDMI interfaces, making it suitable for high-speed video transmission applications.
  • Includes ESD (Electrostatic Discharge) protection to safeguard the IC from voltage spikes and other electrical stresses.
  • Features overcurrent protection to prevent damage from excessive current flow.
  • Industrial-grade reliability ensures performance in a wide range of environmental conditions.
  • 32-pin HVQFN package with an exposed pad for enhanced thermal management and electrical connections.

Applications

The IP4788CZ32J is primarily used in applications requiring robust and reliable DVI and HDMI interface solutions. These include:

  • High-definition video transmission systems.
  • Consumer electronics such as TVs, monitors, and projectors.
  • Professional audio-visual equipment.
  • Industrial control systems requiring high-speed video interfaces.

Q & A

  1. What is the package type of the IP4788CZ32J?
    The IP4788CZ32J comes in a 32-pin HVQFN (5x5) package with an exposed pad.
  2. What interfaces does the IP4788CZ32J support?
    The IP4788CZ32J supports DVI and HDMI interfaces.
  3. Does the IP4788CZ32J have ESD protection?
    Yes, the IP4788CZ32J includes ESD protection.
  4. What is the power consumption of the IP4788CZ32J?
    The power consumption of the IP4788CZ32J is 50mW.
  5. Is the IP4788CZ32J RoHS compliant?
    Yes, the IP4788CZ32J is ROHS3 compliant.
  6. What is the supply voltage for the IP4788CZ32J?
    The supply voltage for the IP4788CZ32J is 5V.
  7. What are the primary applications of the IP4788CZ32J?
    The IP4788CZ32J is used in high-definition video transmission systems, consumer electronics, professional audio-visual equipment, and industrial control systems.
  8. Does the IP4788CZ32J have overcurrent protection?
    Yes, the IP4788CZ32J features overcurrent protection.
  9. What is the usage level of the IP4788CZ32J?
    The IP4788CZ32J is industrial-grade.
  10. Where can I find the datasheet for the IP4788CZ32J?
    The datasheet for the IP4788CZ32J can be found on the Nexperia website or through distributors like Digi-Key and LCSC.

Product Attributes

Applications:-
Interface:-
Voltage - Supply:-
Package / Case:-
Supplier Device Package:-
Mounting Type:-
0 Remaining View Similar

In Stock

$0.47
2,024

Please send RFQ , we will respond immediately.
