Overview

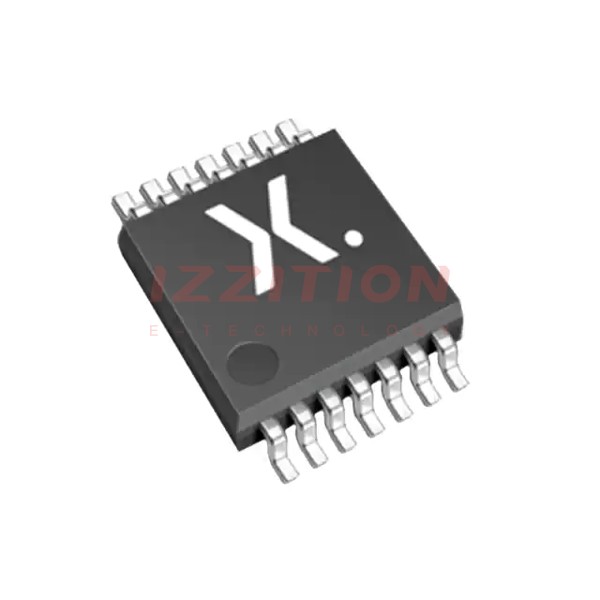

The HEF40106BTT-Q100J from Nexperia USA Inc. is a hex inverter integrated circuit with Schmitt-trigger inputs. This device is part of the 4000 series of CMOS logic ICs and is designed to provide high noise immunity and low power dissipation. It is qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1), making it suitable for use in automotive applications. The HEF40106BTT-Q100J operates over a wide supply voltage range from 3.0 V to 15.0 V and is fully static, meaning it can be used in a variety of digital logic circuits without the need for a clock signal.
Key Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Supply Voltage (VDD) | 3.0 | - | 15.0 | V |
| Input Voltage (VI) | 0 | - | VDD | V |
| Ambient Temperature (Tamb) | -40 | - | +125 | °C |
| Input Capacitance (CI) | - | - | 7.5 | pF |
| Positive-Going Threshold Voltage (VT+) | 2.0 (at 5V) | 3.0 (at 5V) | 3.5 (at 5V) | V |
| Negative-Going Threshold Voltage (VT-) | 0.5 (at 5V) | 0.8 (at 5V) | - | V |
| ESD Protection (HBM) | - | - | >2000 | V |
| ESD Protection (CDM) | - | - | >1000 | V |
| Package Type | - | - | TSSOP14 | - |
Key Features
- Automotive product qualification in accordance with AEC-Q100 (Grade 1)
- Wide supply voltage range from 3.0 V to 15.0 V
- CMOS low power dissipation
- High noise immunity due to Schmitt-trigger inputs
- Inputs include clamp diodes for interfacing with higher voltages using current limiting resistors
- Fully static operation
- Standardized symmetrical output characteristics
- Complies with JEDEC standard JESD 13-B
- ESD protection: HBM > 2000 V, CDM > 1000 V
Applications
- Wave and pulse shapers
- Astable multivibrators
- Monostable multivibrators
- Automotive electronics
Q & A
- What is the HEF40106BTT-Q100J?
The HEF40106BTT-Q100J is a hex inverter integrated circuit with Schmitt-trigger inputs, designed for use in digital logic circuits.
- What is the supply voltage range of the HEF40106BTT-Q100J?
The supply voltage range is from 3.0 V to 15.0 V.
- What are the operating temperature ranges for the HEF40106BTT-Q100J?
The device operates from -40 °C to +125 °C.
- What type of ESD protection does the HEF40106BTT-Q100J have?
The device has ESD protection exceeding 2000 V for HBM and 1000 V for CDM.
- What are some common applications of the HEF40106BTT-Q100J?
Common applications include wave and pulse shapers, astable and monostable multivibrators, and automotive electronics.
- What package types are available for the HEF40106BTT-Q100J?
The device is available in a TSSOP14 package.
- Does the HEF40106BTT-Q100J comply with any industry standards?
Yes, it complies with JEDEC standard JESD 13-B and is qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1).
- What is the significance of Schmitt-trigger inputs in the HEF40106BTT-Q100J?
Schmitt-trigger inputs provide high noise immunity and allow for clear signal discrimination.
- Can the HEF40106BTT-Q100J be used in static logic circuits?
Yes, the device operates fully statically, making it suitable for use in static logic circuits.
- How does the HEF40106BTT-Q100J handle input voltages exceeding VDD?
The device includes clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VDD.
