Overview

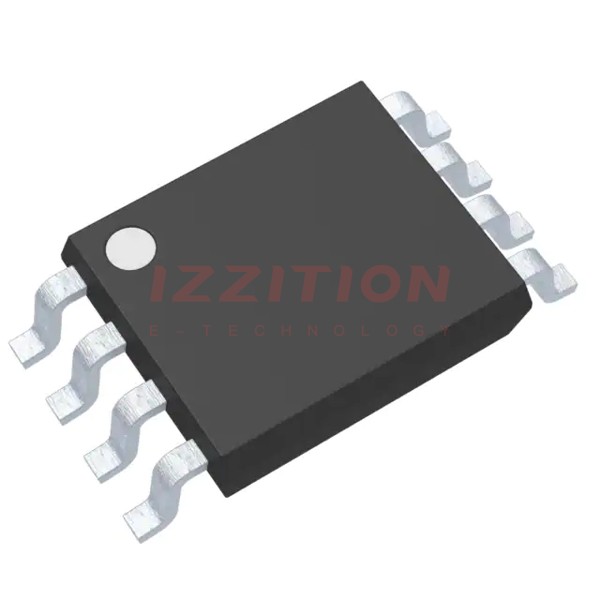

The 74LVC3G04DC-Q100H is a triple inverting buffer integrated circuit produced by Nexperia USA Inc. This component is designed to provide three independent inverting buffers, making it suitable for a variety of digital logic applications. The IC is housed in an 8-pin Very Small Outline Package (VSSOP) and is known for its compatibility with both 3.3 V and 5 V devices, enhancing its versatility in mixed-voltage environments.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Channels | 3 |
| Package Type | 8-VSSOP |
| Input Voltage Range | 3.3 V, 5 V |
| Operating Temperature Range | -40°C to +125°C |
| Supply Voltage Range | 1.65 V to 5.5 V |
| Propagation Delay | Typically 3.5 ns at 3.3 V, 5 ns at 5 V |
| Output Drive Capability | Up to 32 mA |
Key Features
- Three independent inverting buffers
- Compatible with both 3.3 V and 5 V devices
- Low power consumption
- High-speed operation with propagation delays as low as 3.5 ns at 3.3 V and 5 ns at 5 V
- Output drive capability up to 32 mA
- Operating temperature range from -40°C to +125°C
Applications
The 74LVC3G04DC-Q100H is suitable for various digital logic applications, including:
- Mixed-voltage systems where both 3.3 V and 5 V devices are used
- High-speed digital circuits requiring low propagation delays
- General-purpose logic circuits
- Interface circuits between different voltage domains
Q & A
- What is the package type of the 74LVC3G04DC-Q100H?
The 74LVC3G04DC-Q100H is packaged in an 8-pin Very Small Outline Package (VSSOP). - What is the input voltage range for this IC?
The input voltage range for the 74LVC3G04DC-Q100H is 3.3 V and 5 V. - What is the operating temperature range of this component?
The operating temperature range is from -40°C to +125°C. - How many inverting buffers does this IC provide?
The 74LVC3G04DC-Q100H provides three independent inverting buffers. - What is the typical propagation delay at 3.3 V and 5 V?
The typical propagation delay is 3.5 ns at 3.3 V and 5 ns at 5 V. - What is the output drive capability of this IC?
The output drive capability is up to 32 mA. - Is this IC suitable for mixed-voltage systems?
Yes, the 74LVC3G04DC-Q100H is compatible with both 3.3 V and 5 V devices, making it suitable for mixed-voltage systems. - What are some common applications for this IC?
Common applications include mixed-voltage systems, high-speed digital circuits, general-purpose logic circuits, and interface circuits between different voltage domains. - Where can I find detailed specifications for the 74LVC3G04DC-Q100H?
Detailed specifications can be found in the datasheet available on websites such as Mouser Electronics and Digi-Key. - Is the 74LVC3G04DC-Q100H available for immediate shipment?
Availability may vary; it is recommended to check with suppliers like Digi-Key or Mouser Electronics for current stock status.
