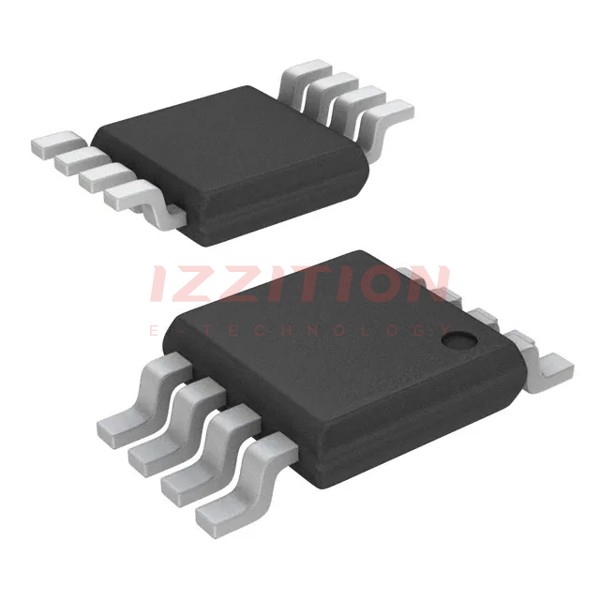

Nexperia USA Inc. 74HCT2G125DP-Q100H

Manufacturer No:
74HCT2G125DP-Q100H
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
IC BUF NON-INVERT 5.5V 8TSSOP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The 74HCT2G125DP-Q100H is a dual non-inverting buffer/line driver integrated circuit produced by Nexperia USA Inc. This component is part of the 74HCT series, which is known for its compatibility with TTL (Transistor-Transistor Logic) and CMOS (Complementary Metal-Oxide-Semiconductor) logic levels. It is designed to operate within a voltage range of 4.5V to 5.5V, making it suitable for a variety of digital circuit applications.

Key Specifications

ParameterValue
ManufacturerNexperia USA Inc.
Part Number74HCT2G125DP-Q100H
Package TypeTSSOP-8
Supply Voltage4.5V ~ 5.5V
Output Current6mA
Logic TypeNon-inverting Buffer/Line Driver
Operating Temperature-40°C ~ 125°C
Moisture Sensitivity Level (MSL)1 (Unlimited)
Lead Free / RoHS StatusLead free / RoHS Compliant

Key Features

  • Dual non-inverting buffer/line driver
  • Compatible with TTL and CMOS logic levels
  • Operating voltage range: 4.5V to 5.5V
  • Output current capability: 6mA
  • Surface mount TSSOP-8 package
  • Wide operating temperature range: -40°C to 125°C
  • Lead free and RoHS compliant

Applications

The 74HCT2G125DP-Q100H is versatile and can be used in various digital circuit applications, including:

  • Buffering and driving signals in digital systems
  • Level translation between different logic families
  • Signal amplification and isolation
  • General-purpose digital logic circuits

Q & A

  1. What is the part number of this component?
    The part number is 74HCT2G125DP-Q100H.
  2. Who is the manufacturer of this component?
    The manufacturer is Nexperia USA Inc.
  3. What is the package type of this component?
    The package type is TSSOP-8.
  4. What is the operating voltage range of this component?
    The operating voltage range is 4.5V to 5.5V.
  5. What is the output current capability of this component?
    The output current capability is 6mA.
  6. Is this component lead free and RoHS compliant?
    Yes, it is lead free and RoHS compliant.
  7. What is the operating temperature range of this component?
    The operating temperature range is -40°C to 125°C.
  8. What is the moisture sensitivity level (MSL) of this component?
    The MSL is 1 (Unlimited).
  9. What are some common applications of this component?
    Common applications include buffering and driving signals, level translation, signal amplification, and general-purpose digital logic circuits.
  10. Is this component compatible with TTL and CMOS logic levels?
    Yes, it is compatible with both TTL and CMOS logic levels.

Product Attributes

Logic Type:Buffer, Non-Inverting
Number of Elements:2
Number of Bits per Element:1
Input Type:-
Output Type:3-State
Current - Output High, Low:6mA, 6mA
Voltage - Supply:4.5V ~ 5.5V
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package:8-TSSOP
