Overview
The 74HC2G08DP-Q100/AH, produced by Nexperia USA Inc., is a dual 2-input AND gate integrated circuit. This component is part of the 74HC and 74HCT logic families, known for their wide supply voltage range and low power dissipation. The device is designed to operate with CMOS logic levels, making it versatile for various electronic designs. It features clamp diodes on the inputs, allowing the use of current limiting resistors to interface inputs to voltages beyond the VCC supply voltage.
Key Specifications
| Parameter | Value |
|---|---|
| Type Number | 74HC2G08DP |
| Supply Voltage (VCC) | 2.0 V to 6.0 V |
| Logic Switching Levels | CMOS |
| Output Drive Capability | ± 5.2 mA |
| Propagation Delay (tpd) | 9.0 ns |
| Maximum Frequency (fmax) | 36 MHz |
| Number of Bits | 2 |
| Power Dissipation | Low |
| Operating Temperature (Tamb) | -40 °C to +125 °C |

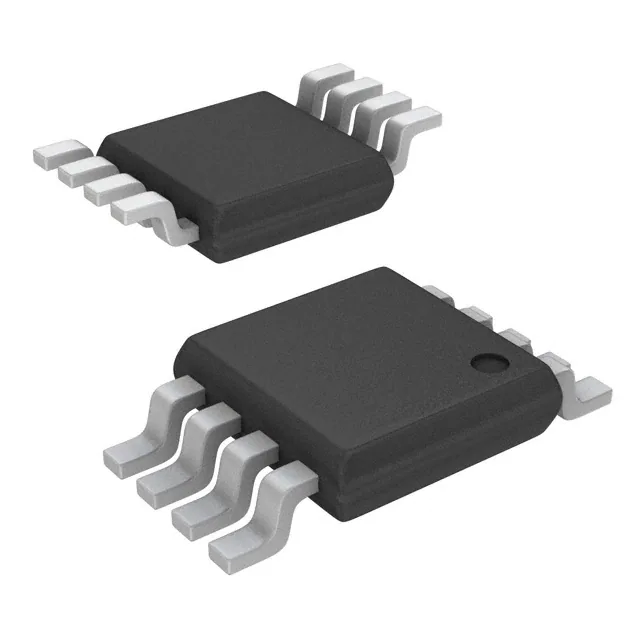

| Package | TSSOP8 (SOT505-2) |
Key Features
- Wide supply voltage range from 2.0 V to 6.0 V.
- CMOS low power dissipation.
- High noise immunity.
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
- ESD protection: HBM (Human Body Model) exceeds 2000 V, CDM (Charged Device Model) exceeds 1000 V.
- Inputs include clamp diodes for interfacing with higher voltage levels using current limiting resistors.
Applications
The 74HC2G08DP-Q100/AH is suitable for a wide range of applications across various industries, including automotive, industrial, power, computing, consumer electronics, mobile devices, and wearables. Its versatility and robust performance make it an ideal choice for designs requiring reliable and efficient logic operations.
Q & A
- What is the supply voltage range of the 74HC2G08DP-Q100/AH?
The supply voltage range is from 2.0 V to 6.0 V. - What type of logic switching levels does the 74HC2G08DP-Q100/AH support?
The device supports CMOS logic levels. - What is the output drive capability of the 74HC2G08DP-Q100/AH?
The output drive capability is ± 5.2 mA. - What is the propagation delay of the 74HC2G08DP-Q100/AH?
The propagation delay is 9.0 ns. - What is the maximum frequency of operation for the 74HC2G08DP-Q100/AH?
The maximum frequency is 36 MHz. - What is the operating temperature range of the 74HC2G08DP-Q100/AH?
The operating temperature range is from -40 °C to +125 °C. - What type of package does the 74HC2G08DP-Q100/AH come in?
The device comes in a TSSOP8 (SOT505-2) package. - Does the 74HC2G08DP-Q100/AH have ESD protection?
Yes, it has ESD protection exceeding 2000 V for HBM and 1000 V for CDM. - What are some common applications for the 74HC2G08DP-Q100/AH?
It is used in automotive, industrial, power, computing, consumer electronics, mobile devices, and wearables. - Is the 74HC2G08DP-Q100/AH still in production?
No, the 74HC2G08DP-Q100/AH is obsolete and no longer manufactured, but substitutes are available.
