Overview

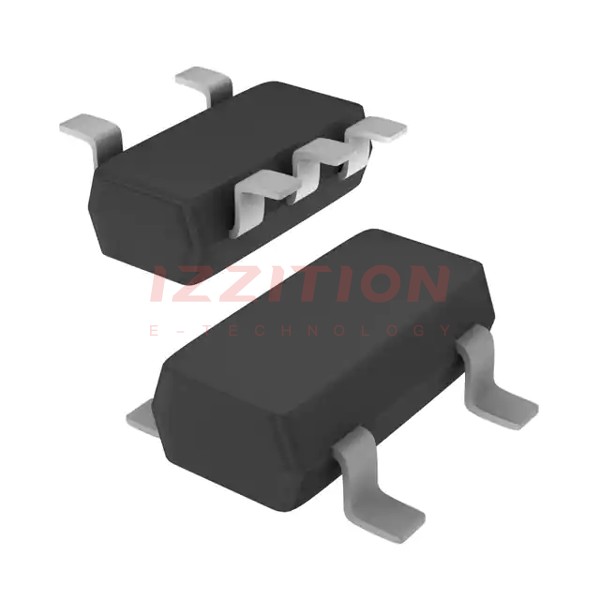

The 74HC1G86GV-Q100H is a single 2-input EXCLUSIVE-OR (XOR) gate integrated circuit produced by Nexperia USA Inc. This component is part of the 74HC and 74HCT series, known for their high performance and reliability in various electronic applications. The 74HC1G86GV-Q100H is qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1), making it suitable for use in automotive and other demanding environments.
Key Specifications
| Parameter | Value |
|---|---|
| Type Number | 74HC1G86GV-Q100H |
| Package | SC-74A (SOT-753) |
| Supply Voltage (VCC) | 2.0 V to 6.0 V |
| Input Levels | CMOS level |
| Output Drive Capability | ± 2.6 mA |
| Propagation Delay (tpd) | 9 ns |
| Maximum Frequency (fmax) | 36 MHz |
| Operating Temperature | -40 °C to +125 °C |
| ESD Protection | HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V, CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V |
| Logic Type | XOR Gate |
| Number of Inputs | 2 |
| Number of Circuits | 1 |
Key Features
- Single 2-input EXCLUSIVE-OR gate with clamp diodes on inputs, enabling the use of current limiting resistors to interface inputs to voltages in excess of VCC.
- Wide supply voltage range from 2.0 V to 6.0 V.
- CMOS low power dissipation.
- High noise immunity.
- Symmetrical output impedance and balanced propagation delays.
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
- ESD protection: HBM exceeds 2000 V, CDM exceeds 1000 V.
- Qualified to AEC-Q100 (Grade 1) for automotive applications.
- Small footprint, up to 60% space saving over equivalent leaded packages.
Applications
The 74HC1G86GV-Q100H is versatile and can be used in a variety of applications, including:
- Automotive systems: Due to its AEC-Q100 qualification, it is suitable for use in automotive electronics.
- Industrial control systems: Its high noise immunity and balanced propagation delays make it reliable in industrial environments.
- Consumer electronics: It can be used in mobile, computing, and consumer devices where low power consumption and high performance are required.
- Power and computing systems: Its wide supply voltage range and low power dissipation make it suitable for power management and computing applications.
Q & A
- What is the primary function of the 74HC1G86GV-Q100H?
The primary function is to perform a 2-input EXCLUSIVE-OR (XOR) logical operation. - What is the supply voltage range for this IC?
The supply voltage range is from 2.0 V to 6.0 V. - What are the input levels for this IC?
The input levels are CMOS level. - What is the operating temperature range for this IC?
The operating temperature range is from -40 °C to +125 °C. - Does this IC have ESD protection?
Yes, it has ESD protection: HBM exceeds 2000 V, CDM exceeds 1000 V. - Is this IC suitable for automotive applications?
Yes, it is qualified to AEC-Q100 (Grade 1) for automotive applications. - What is the propagation delay of this IC?
The propagation delay (tpd) is 9 ns. - What is the maximum frequency this IC can handle?
The maximum frequency (fmax) is 36 MHz. - What is the package type of this IC?
The package type is SC-74A (SOT-753). - Does this IC have low power consumption?
Yes, it has CMOS low power dissipation.
