Overview
The 74CBTLV3257PW/S911, produced by Nexperia USA Inc., is a quad 1-of-2 high-speed multiplexer/demultiplexer. This device features common select (S) and output enable (OE) inputs, making it versatile for various digital switching applications. The low ON-state resistance of the switch allows connections to be made with minimal propagation delay and without generating additional ground bounce noise. This component is fully specified for partial-power-down applications, ensuring isolation during power-off and supporting Ioff for safe operation in power-down modes.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| VCC Supply Voltage | 2.3 - 3.6 | V |
| VPASS Voltage | 3.3 | V |
| Logic Switching Levels | CMOS/LVTTL | |
| RON ON-State Resistance | 7 | Ω |
| f (-3dB) Bandwidth | 400 | MHz |
| Number of Bits | 4 | |
| tpd Propagation Delay | 0.2 | ns |
| Tamb Operating Temperature | -40 to 125 | °C |
| Rth(j-a) Junction-to-Ambient Thermal Resistance | 125 | K/W |

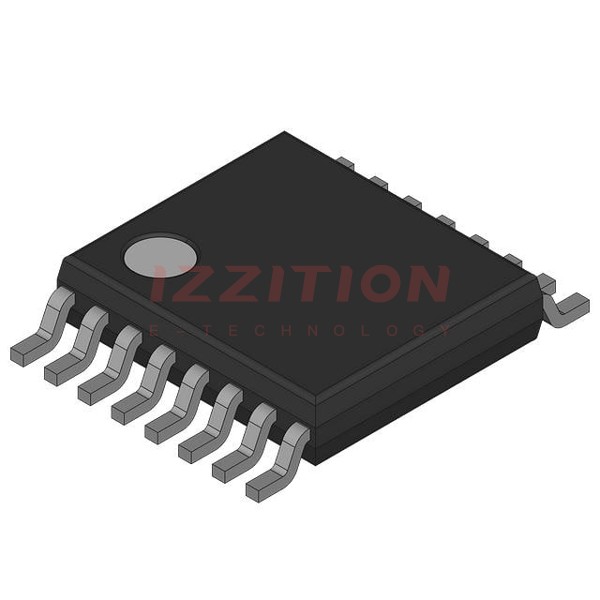

| Package | TSSOP16 (SOT403-1) |
Key Features
- Low ON-State Resistance: The switch has a low ON-state resistance, allowing connections to be made with minimal propagation delay and without generating additional ground bounce noise.
- Rail-to-Rail Switching: Supports rail-to-rail switching on data I/O ports.
- Partial-Power-Down Mode: The device supports partial-power-down mode operation with Ioff, ensuring isolation during power-off and preventing backflow of damaging current.
- ESD Protection: Exceeds 2000 V Human-Body Model (HBM) and 1000 V Charged-Device Model (CDM) for robust ESD protection.
- Low Power Dissipation: Very low power dissipation considerations.
Applications
- Internet of Things (IoT): Suitable for various IoT applications requiring high-speed data switching.
- Wireless Headphones: Used in audio and communication devices where low noise and high-speed switching are critical.
- Television Sets: Employed in consumer electronics for efficient data multiplexing and demultiplexing.
- 4-Bit Bus Multiplexing and Demultiplexing: Ideal for applications requiring the multiplexing and demultiplexing of 4-bit data buses.
Q & A
- What is the primary function of the 74CBTLV3257PW/S911?
The primary function is to act as a quad 1-of-2 high-speed multiplexer/demultiplexer with common select and output enable inputs.
- What is the operating voltage range of the 74CBTLV3257PW/S911?
The operating voltage range is from 2.3 V to 3.6 V.
- What is the ON-state resistance of the switch?
The ON-state resistance is approximately 7 Ω.
- What is the propagation delay of the device?
The propagation delay is 0.2 ns.
- What are the ESD protection levels of the device?
The device exceeds 2000 V Human-Body Model (HBM) and 1000 V Charged-Device Model (CDM).
- What is the operating temperature range of the device?
The operating temperature range is from -40 °C to 125 °C.
- What package options are available for the 74CBTLV3257PW/S911?
The device is available in a TSSOP16 (SOT403-1) package.
- Does the device support partial-power-down mode?
Yes, the device supports partial-power-down mode operation with Ioff.
- What are some common applications of the 74CBTLV3257PW/S911?
Common applications include IoT, wireless headphones, television sets, and 4-bit bus multiplexing and demultiplexing.
- Is the device RoHS compliant?
Yes, the device is RoHS compliant.
