Overview
The 74AUP2G04GW-Q100H is a quad buffer/inverter integrated circuit produced by Nexperia USA Inc. This component is designed for automotive applications and is qualified to the AEC-Q100 standard, ensuring high reliability and performance in demanding environments. The IC features low power consumption and high speed, making it suitable for a variety of digital logic applications.
Key Specifications
| Parameter | Value |
|---|---|

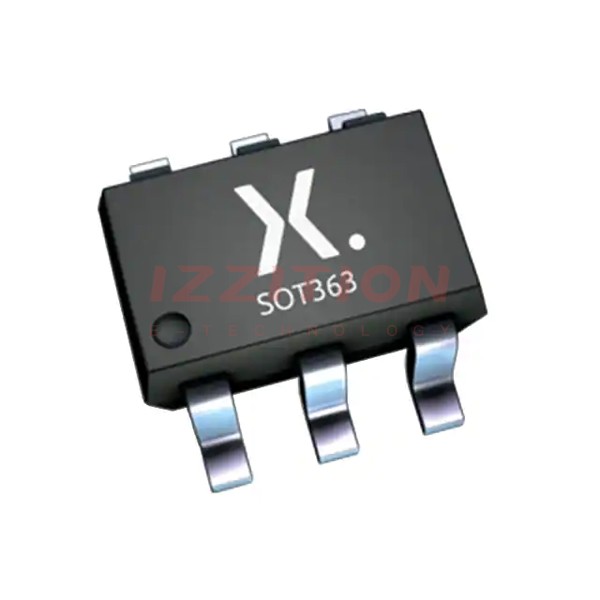

| Package Type | 6-TSSOP |
| Number of Channels | 2 |
| Maximum Propagation Delay @ VCC Max, CL | 5.4 ns @ 3.3V, 30 pF |
| Operating Temperature Range | -40°C to 125°C |
| Qualification | AEC-Q100 |
| Grade | Automotive |
Key Features
- Low power consumption
- High speed operation with a maximum propagation delay of 5.4 ns @ 3.3V, 30 pF
- AEC-Q100 qualified for automotive applications
- Wide operating temperature range from -40°C to 125°C
- 6-TSSOP package for compact design
Applications
The 74AUP2G04GW-Q100H is primarily used in automotive systems where reliability and high performance are critical. It can be applied in various digital logic circuits, including signal buffering, inverting, and level shifting. Other potential applications include industrial control systems, consumer electronics, and any environment requiring low power and high-speed digital logic functions.
Q & A
- What is the package type of the 74AUP2G04GW-Q100H?
The package type is 6-TSSOP. - How many channels does the 74AUP2G04GW-Q100H have?
The IC has 2 channels. - What is the maximum propagation delay of the 74AUP2G04GW-Q100H?
The maximum propagation delay is 5.4 ns @ 3.3V, 30 pF. - What is the operating temperature range of the 74AUP2G04GW-Q100H?
The operating temperature range is from -40°C to 125°C. - Is the 74AUP2G04GW-Q100H qualified for automotive applications?
Yes, it is AEC-Q100 qualified. - What are the primary applications of the 74AUP2G04GW-Q100H?
The primary applications include automotive systems, industrial control systems, and consumer electronics requiring low power and high-speed digital logic functions. - What is the significance of AEC-Q100 qualification?
AEC-Q100 qualification ensures that the component meets the stringent reliability and performance standards required for automotive applications. - Can the 74AUP2G04GW-Q100H be used in non-automotive applications?
Yes, it can be used in any application requiring low power and high-speed digital logic functions. - What is the typical power consumption of the 74AUP2G04GW-Q100H?
The component is designed for low power consumption, but specific values depend on the operating conditions. - Where can I find detailed technical documentation for the 74AUP2G04GW-Q100H?
Detailed technical documentation, including datasheets, can be found on the Nexperia website or through distributors like Digi-Key, Mouser, and Farnell.
