Overview

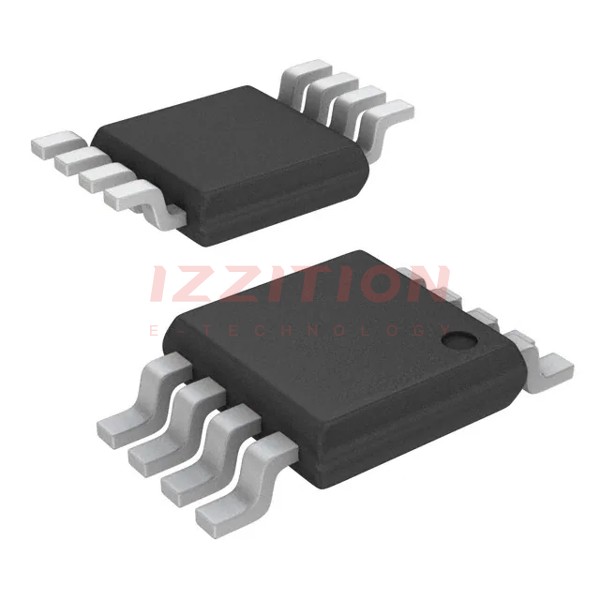

The 74AHCT2G125DP-Q10H is a non-inverting buffer IC produced by Nexperia USA Inc. This component is part of the 74AHCT series, known for its high-speed CMOS logic. It features two independent buffer elements, each with a 3-state output, making it suitable for a variety of digital logic applications. The IC is housed in an 8-pin TSSOP package, ensuring compactness and ease of integration into modern electronic designs.
Key Specifications
| Specification | Value |
|---|---|
| Number of Channels | 2 |
| Output Type | 3-State |
| Power Dissipation (Pd) | 250 mW |
| Logic Type | Buffer, Non-Inverting |
| Number of Bits per Element | 1 |
| Package Type | 8-TSSOP |
| RoHS Compliance | Yes |
Key Features
- High-speed CMOS logic with TTL-compatible inputs
- Two independent non-inverting buffer elements
- 3-state outputs for each buffer element
- Compact 8-pin TSSOP package
- Low power dissipation of 250 mW
- RoHS compliant, ensuring environmental sustainability
Applications
The 74AHCT2G125DP-Q10H is versatile and can be used in a variety of digital logic applications, including:
- Buffering and driving digital signals in high-speed circuits
- Level shifting and signal conditioning
- Interface circuits between different logic families
- General-purpose digital logic circuits in consumer electronics, industrial control systems, and automotive applications
Q & A
- What is the primary function of the 74AHCT2G125DP-Q10H IC?
The primary function is to act as a non-inverting buffer, providing two independent buffer elements with 3-state outputs. - What is the package type of the 74AHCT2G125DP-Q10H?
The IC is housed in an 8-pin TSSOP package. - Is the 74AHCT2G125DP-Q10H RoHS compliant?
Yes, it is RoHS compliant. - What is the power dissipation of the 74AHCT2G125DP-Q10H?
The power dissipation is 250 mW. - How many channels does the 74AHCT2G125DP-Q10H have?
It has 2 channels. - What is the logic type of the 74AHCT2G125DP-Q10H?
The logic type is Buffer, Non-Inverting. - What is the number of bits per element in the 74AHCT2G125DP-Q10H?
Each element processes 1 bit. - Can the 74AHCT2G125DP-Q10H be used in high-speed applications?
Yes, it is designed for high-speed CMOS logic applications. - What are some common applications of the 74AHCT2G125DP-Q10H?
Common applications include buffering and driving digital signals, level shifting, signal conditioning, and general-purpose digital logic circuits. - Is the 74AHCT2G125DP-Q10H suitable for use in automotive applications?
Yes, it can be used in automotive applications due to its robust specifications and RoHS compliance.
