Overview

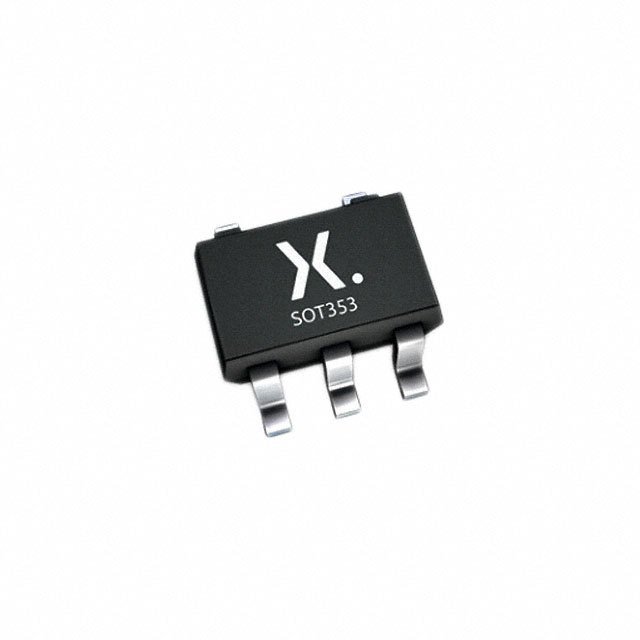

The 74AHCT1G08GW,165 is a single 2-input AND gate integrated circuit produced by Nexperia USA Inc. This component belongs to the 74AHCT series, which is known for its high-speed CMOS logic with TTL input levels. The device is packaged in a TSSOP-5 (Thin Shrink Small Outline Package) and is designed for use in a variety of digital logic applications.
Key Specifications
| Specification | Value |
|---|---|
| Logic Family | AHCT |
| Number of Input Lines | 2 |
| Number of Output Lines | 1 |
| Package / Case | TSSOP-5 |
| Operating Temperature Range | -40°C to 125°C |
| VCC (Supply Voltage) | 4.5V to 5.5V |
Key Features
The 74AHCT1G08GW,165 features high-speed operation with propagation delays as low as 5 ns, making it suitable for high-frequency applications. It has TTL-compatible inputs, allowing it to interface directly with TTL logic levels. The device also has a low power consumption and is designed to be used in a wide range of digital logic circuits.
Applications
This component is commonly used in digital logic circuits, including but not limited to, data processing, control systems, and communication equipment. Its high speed and TTL compatibility make it particularly useful in applications requiring fast and reliable logical operations.
Q & A
- What is the logic family of the 74AHCT1G08GW,165?
The logic family of the 74AHCT1G08GW,165 is AHCT. - How many input lines does the 74AHCT1G08GW,165 have?
The 74AHCT1G08GW,165 has 2 input lines. - What is the package type of the 74AHCT1G08GW,165?
The package type is TSSOP-5. - What is the operating temperature range of the 74AHCT1G08GW,165?
The operating temperature range is -40°C to 125°C. - Is the 74AHCT1G08GW,165 still in production?
No, the 74AHCT1G08GW,165 is obsolete and no longer manufactured. - What are some common applications of the 74AHCT1G08GW,165?
Common applications include digital logic circuits, data processing, control systems, and communication equipment. - What is the supply voltage range for the 74AHCT1G08GW,165?
The supply voltage range is 4.5V to 5.5V. - Does the 74AHCT1G08GW,165 have TTL-compatible inputs?
Yes, the 74AHCT1G08GW,165 has TTL-compatible inputs. - What is the propagation delay of the 74AHCT1G08GW,165?
The propagation delay is as low as 5 ns. - What package options are available for the 74AHCT1G08GW,165?
The component is available in a TSSOP-5 package.
