Overview

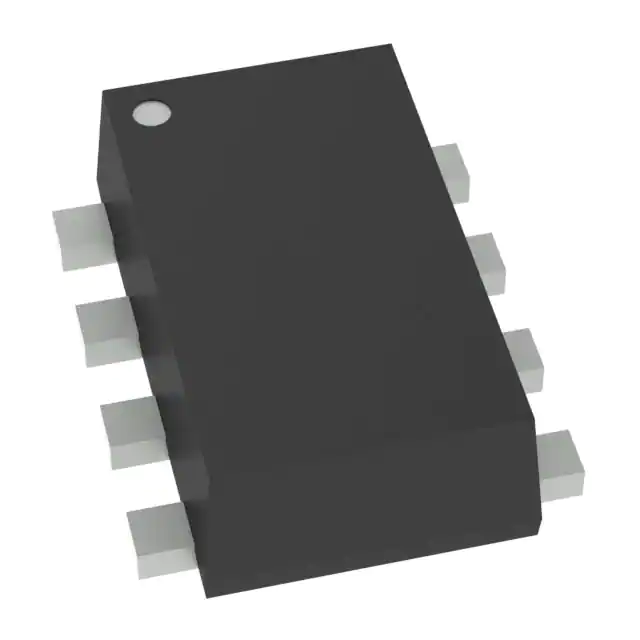

The MP2182GTL-Z is a high-efficiency, synchronous buck switching regulator IC designed by Monolithic Power Systems Inc. (MPS). This device is optimized for high-performance applications requiring a compact solution with low power loss. It operates over a wide input voltage range and supports adjustable output voltages, making it versatile for various power management needs.
Key Specifications
| Parameter | Value |
|---|---|
| Input Voltage - Max | 5.5 V |
| Input Voltage - Min | 2.5 V |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
| Output Voltage | Adjustable, 0.6V to VIN |
| Output Current | Up to 2A |
| Package Type | SOT-23 |
Key Features
- High efficiency synchronous buck converter
- Wide input voltage range: 2.5V to 5.5V
- Adjustable output voltage from 0.6V to VIN
- High output current capability up to 2A
- Compact SOT-23 package
- Low dropout voltage and low quiescent current
- Internal compensation and soft-start
Applications
The MP2182GTL-Z is suitable for a variety of applications requiring efficient power conversion, including:
- Portable electronics such as smartphones, tablets, and laptops
- Consumer electronics like set-top boxes and gaming consoles
- Industrial control systems and automation equipment
- Automotive systems and infotainment systems
- Medical devices and healthcare equipment
Q & A
- What is the input voltage range of the MP2182GTL-Z?
The input voltage range is from 2.5V to 5.5V. - What is the maximum output current of the MP2182GTL-Z?
The maximum output current is up to 2A. - What is the package type of the MP2182GTL-Z?
The package type is SOT-23. - What is the operating temperature range of the MP2182GTL-Z?
The operating temperature range is from -40°C to +125°C. - Is the output voltage of the MP2182GTL-Z adjustable?
Yes, the output voltage is adjustable from 0.6V to VIN. - What are some typical applications of the MP2182GTL-Z?
Typical applications include portable electronics, consumer electronics, industrial control systems, automotive systems, and medical devices. - Does the MP2182GTL-Z have internal compensation and soft-start features?
Yes, it does have internal compensation and soft-start features. - What is the efficiency of the MP2182GTL-Z?
The MP2182GTL-Z is designed for high efficiency, though specific efficiency values depend on the application and operating conditions. - Where can I find detailed specifications and datasheets for the MP2182GTL-Z?
Detailed specifications and datasheets can be found on the official MPS website, as well as on distributor websites like Mouser and Digi-Key. - Is the MP2182GTL-Z suitable for high-power applications?
While it can handle up to 2A, it is generally suited for medium to low-power applications due to its compact package and efficiency characteristics.
