Overview

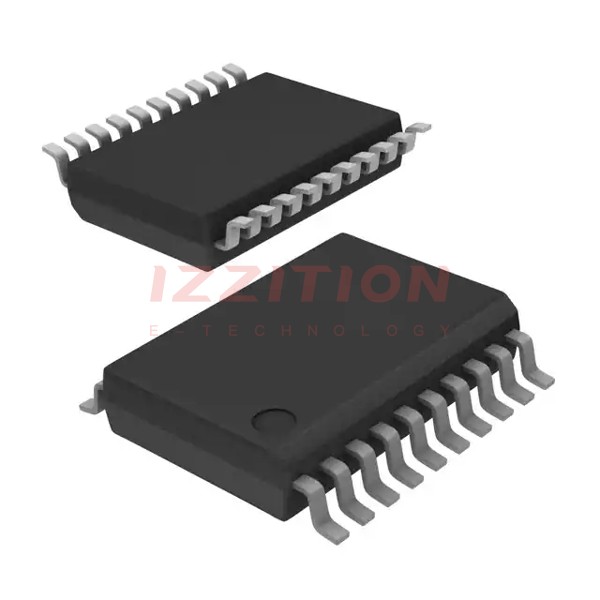

The PIC24F32KA301T-I/SS is a 16-bit microcontroller produced by Microchip Technology, designed for low-power and high-performance applications. This model is part of the PIC24F series, known for its robust architecture and versatile functionality. It is particularly suited for embedded systems requiring efficient power management and reliable operation in various environments. The target user groups include industrial automation, consumer electronics, and automotive electronics developers. Its unique selling points include its low power consumption, high processing speed, and extensive peripheral integration.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Flash Memory | 32 | KB | Non-volatile |
| RAM | 2 | KB | Volatile |
| Operating Voltage | 1.8 to 3.6 | V | Wide range |
| Operating Temperature | -40 to 85 | °C | Industrial range |
| Speed | 32 | MHz | High performance |
| I/O Pins | 24 | - | Versatile connectivity |
Key Features
- Enhanced 16-bit RISC architecture for high-speed processing.
- Multiple low-power modes to optimize energy consumption.
- Integrated peripherals including I2C, SPI, UART, and PWM.
- Robust memory options with 32KB Flash and 2KB RAM.
- Wide operating voltage range for flexible power supply options.
Applications
The PIC24F32KA301T-I/SS is widely used in various fields such as industrial automation for control systems, consumer electronics for smart devices, and automotive electronics for vehicle control units. Its low power consumption and high reliability make it ideal for battery-powered and harsh environment applications.
Q & A
What is the operating voltage range of the PIC24F32KA301T-I/SS?
The operating voltage range is from 1.8V to 3.6V.
How much Flash memory does this microcontroller have?
It has 32KB of Flash memory.
What is the maximum operating temperature?
The maximum operating temperature is 85°C.
Can this microcontroller operate in low-power modes?
Yes, it supports multiple low-power modes.
What peripherals are integrated into the PIC24F32KA301T-I/SS?
Integrated peripherals include I2C, SPI, UART, and PWM.
What is the speed of the microcontroller?
It operates at a speed of 32MHz.
How many I/O pins are available?
There are 24 I/O pins.
Is this microcontroller suitable for automotive applications?
Yes, it is suitable for automotive electronics due to its robust design.
What is the RAM size of the PIC24F32KA301T-I/SS?
It has 2KB of RAM.
What is the typical application of this microcontroller?
Typical applications include industrial control systems and consumer electronics.
