Overview

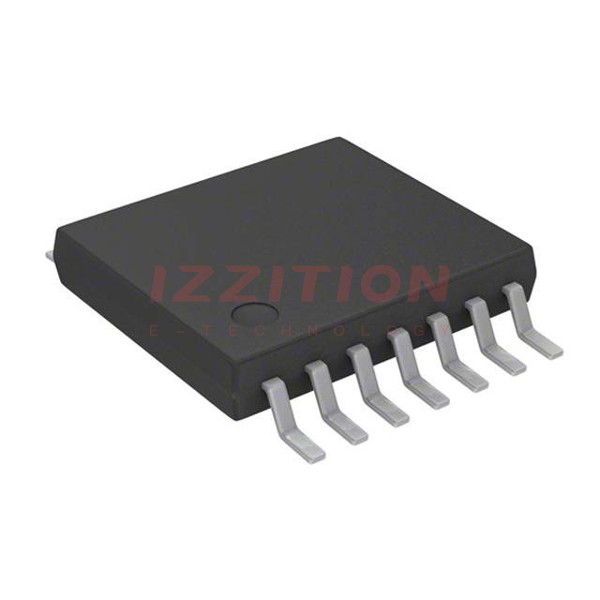

The MCP6L04T-E/ST is a quad operational amplifier produced by Microchip Technology. This component is designed for general-purpose applications and features a rail-to-rail input and output architecture. It operates within a wide supply voltage range of 1.8V to 6V, making it versatile for various electronic systems. The MCP6L04T-E/ST is housed in a 14-pin TSSOP package and is RoHS compliant, ensuring environmental sustainability.
Key Specifications
| Specification | Value |
|---|---|
| Part Number | MCP6L04T-E/ST |
| Manufacturer | Microchip Technology |
| Package / Case | 14-TSSOP (0.173, 4.40mm Width) |
| Number of Pins | 14 |
| Operating Temperature | -40°C ~ 125°C |
| Supply Voltage | 1.8V ~ 6V |
| Output Type | Rail-to-Rail |
| Unity Gain BW-Nom | 1000 kHz |
| Slew Rate | 0.6 V/μs |
| Input Offset Voltage (Vos) | 5 mV |
| Common Mode Rejection Ratio | 78 dB |
| Current - Input Bias | 2 pA |
| Output Current per Channel | 20 mA |
| Operating Supply Current | 85 μA |
Key Features
- Rail-to-rail input and output capability
- Quad operational amplifier configuration
- Wide supply voltage range: 1.8V to 6V
- High unity gain bandwidth: 1 MHz
- Low input bias current: 2 pA
- High common mode rejection ratio: 78 dB
- Low operating supply current: 85 μA
- Rail-to-rail output swing
- RoHS compliant and lead-free
Applications
The MCP6L04T-E/ST is suitable for a variety of applications, including:
- Audio and video processing
- Medical devices and equipment
- Industrial control systems
- Automotive electronics
- Consumer electronics such as audio amplifiers and signal processing circuits
Q & A
- What is the part number of this operational amplifier?
The part number is MCP6L04T-E/ST. - Who is the manufacturer of the MCP6L04T-E/ST?
The manufacturer is Microchip Technology. - What is the package type of the MCP6L04T-E/ST?
The package type is 14-TSSOP. - What is the operating temperature range of the MCP6L04T-E/ST?
The operating temperature range is -40°C to 125°C. - What is the supply voltage range for the MCP6L04T-E/ST?
The supply voltage range is 1.8V to 6V. - What is the unity gain bandwidth of the MCP6L04T-E/ST?
The unity gain bandwidth is 1 MHz. - What is the slew rate of the MCP6L04T-E/ST?
The slew rate is 0.6 V/μs. - What is the input offset voltage of the MCP6L04T-E/ST?
The input offset voltage is 5 mV. - Is the MCP6L04T-E/ST RoHS compliant?
Yes, the MCP6L04T-E/ST is RoHS compliant. - What are some typical applications of the MCP6L04T-E/ST?
Typical applications include audio and video processing, medical devices, industrial control systems, automotive electronics, and consumer electronics.
