Overview
The AT91SAM9X25-CU is a high-performance 32-bit microcontroller from Microchip Technology, based on the ARM926 processor core. This microcontroller is designed to offer a balance of high processing power, low power consumption, and a wide range of peripherals, making it suitable for a variety of embedded system applications.
Key Specifications
| Specification | Value |
|---|---|
| Processor Core | ARM926 |
| Clock Frequency | 400 MHz |
| Memory | 32 kB SRAM |
| Operating Temperature | -40°C to 85°C |
| Mounting | SMD |

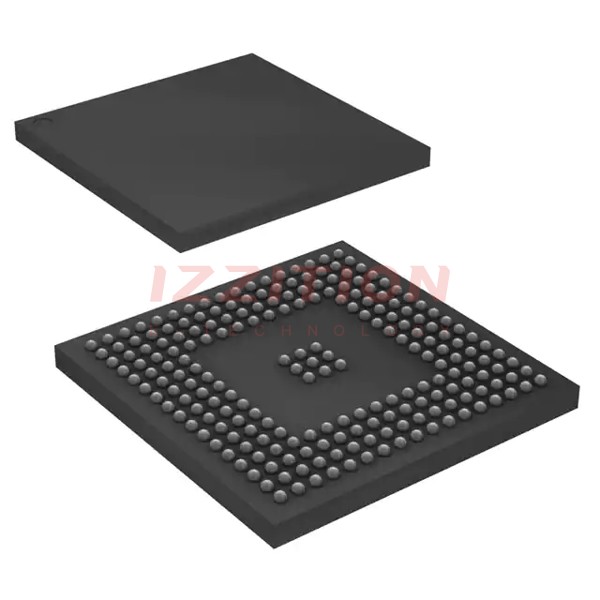

| Case | LFBGA217 |
| Number of 32-bit Timers | 6 |
| Number of PWM Channels | 4 |
Key Features
- High-performance ARM926 processor core at 400 MHz
- 32 kB of SRAM for efficient data processing
- Wide operating temperature range from -40°C to 85°C
- Surface Mount Device (SMD) with LFBGA217 package
- Multiple 32-bit timers and PWM channels for precise control
- Support for in-system programming using SAM-BA software tool
Applications
The AT91SAM9X25-CU is versatile and can be used in various applications, including industrial control systems, medical devices, consumer electronics, and automotive systems. Its high processing power and extensive peripheral set make it an ideal choice for complex embedded systems that require robust performance and reliability.
Q & A
- What is the processor core of the AT91SAM9X25-CU?
The processor core is the ARM926. - What is the clock frequency of the AT91SAM9X25-CU?
The clock frequency is 400 MHz. - How much SRAM does the AT91SAM9X25-CU have?
The AT91SAM9X25-CU has 32 kB of SRAM. - What is the operating temperature range of the AT91SAM9X25-CU?
The operating temperature range is from -40°C to 85°C. - What type of mounting does the AT91SAM9X25-CU use?
The AT91SAM9X25-CU uses Surface Mount Device (SMD) mounting. - What is the package type of the AT91SAM9X25-CU?
The package type is LFBGA217. - How many 32-bit timers does the AT91SAM9X25-CU have?
The AT91SAM9X25-CU has 6 32-bit timers. - How many PWM channels does the AT91SAM9X25-CU have?
The AT91SAM9X25-CU has 4 PWM channels. - Is the AT91SAM9X25-CU supported by any in-system programming tools?
Yes, it is supported by the SAM-BA software tool. - What are some common applications of the AT91SAM9X25-CU?
Common applications include industrial control systems, medical devices, consumer electronics, and automotive systems.
