Overview

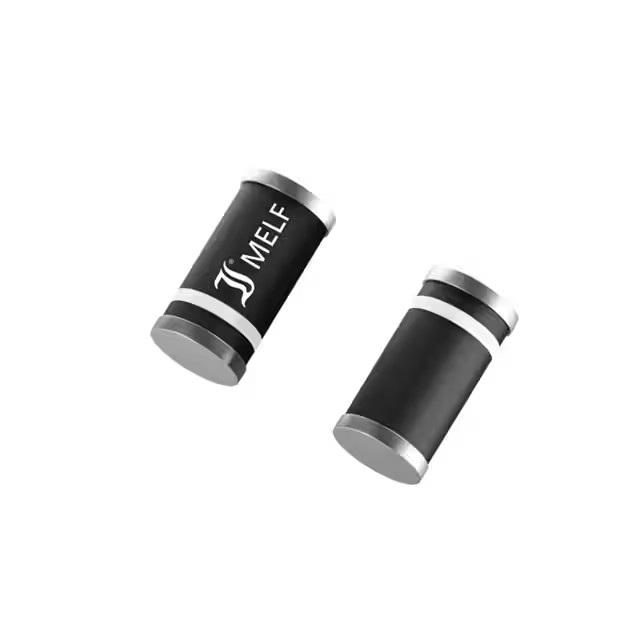

The 1N4733AUR/TR is a Zener diode produced by Microchip Technology, designed to provide voltage regulation in various electronic circuits. This component is part of the 1N47xx series, known for its reliability and stability in voltage regulation applications. The 1N4733AUR/TR is packaged in a MELF (Metal Electrode Leadless Face) DO-213AB case, which is compact and suitable for surface mount applications.
Key Specifications
| Parameter | Value |
|---|---|
| Zener Voltage (Vz) | 5.1V |
| Tolerance | ±5% |
| Power Dissipation (Pd) | 1W |
| Package Type | MELF DO-213AB |
| No. of Pins | 2 |
| Operating Temperature Max | 200°C |
| Mounting Type | Surface Mount |
| RoHS Compliance | Yes |
Key Features
- Compact MELF DO-213AB package suitable for surface mount applications.
- Stable Zener voltage of 5.1V with a tolerance of ±5%.
- High power dissipation of 1W, making it suitable for a variety of voltage regulation tasks.
- Operating temperature up to 200°C, ensuring reliability in diverse environmental conditions.
- RoHS compliant, making it environmentally friendly and compliant with current regulations.
Applications
The 1N4733AUR/TR Zener diode is widely used in various electronic circuits for voltage regulation, such as:
- Voltage stabilizers and regulators.
- Overvoltage protection circuits.
- Signal clipping and limiting circuits.
- Power supplies and DC-DC converters.
- Audio and RF circuits requiring stable voltage references.
Q & A
- What is the Zener voltage of the 1N4733AUR/TR?
The Zener voltage of the 1N4733AUR/TR is 5.1V. - What is the tolerance of the Zener voltage?
The tolerance of the Zener voltage is ±5%. - What is the power dissipation of the 1N4733AUR/TR?
The power dissipation of the 1N4733AUR/TR is 1W. - What type of package does the 1N4733AUR/TR come in?
The 1N4733AUR/TR comes in a MELF DO-213AB package. - Is the 1N4733AUR/TR RoHS compliant?
Yes, the 1N4733AUR/TR is RoHS compliant. - What is the maximum operating temperature of the 1N4733AUR/TR?
The maximum operating temperature of the 1N4733AUR/TR is 200°C. - How is the 1N4733AUR/TR typically mounted?
The 1N4733AUR/TR is typically mounted using surface mount technology. - What are some common applications of the 1N4733AUR/TR?
The 1N4733AUR/TR is commonly used in voltage stabilizers, overvoltage protection circuits, signal clipping and limiting circuits, power supplies, and DC-DC converters. - Can the 1N4733AUR/TR be used in audio circuits?
Yes, the 1N4733AUR/TR can be used in audio circuits requiring stable voltage references. - Is the 1N4733AUR/TR suitable for high-power applications?
Yes, with a power dissipation of 1W, the 1N4733AUR/TR is suitable for various high-power voltage regulation tasks.
