Overview

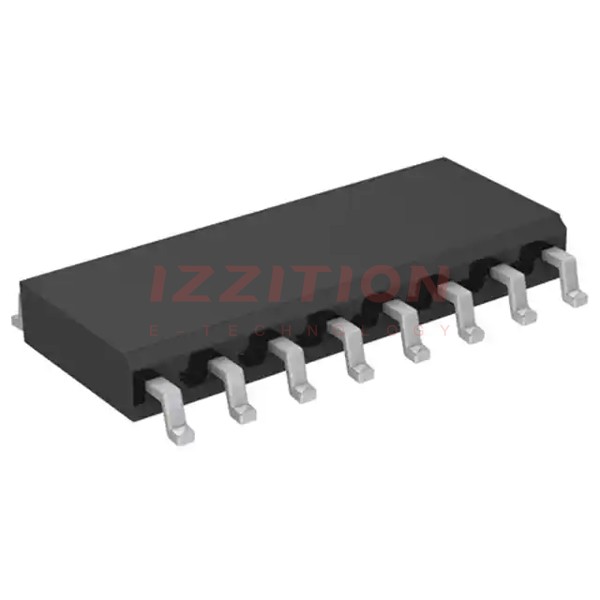

The PM7524FSR7 is a digital-to-analog converter (DAC) produced by Analog Devices Inc. This component is part of the data acquisition family and is designed to provide high precision and reliability in various electronic systems. It is widely used in applications that require accurate analog signal generation from digital inputs.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Package Type | SOIC-8 |
| Number of Channels | 1 |
| Resolution | 8-bit |
| Interface Type | Serial |
| Supply Voltage | 2.7V to 5.5V |
| Operating Temperature Range | -40°C to 85°C |
| Current Consumption | Typically 200 μA |
Key Features
- High accuracy and linearity
- Low power consumption
- Compact SOIC-8 package
- Wide operating temperature range
- Serial interface for easy communication
- Single supply voltage operation
Applications
- Industrial control systems
- Aerospace and defense systems
- Medical devices
- Automotive systems
- Consumer electronics
Q & A
- What is the PM7524FSR7 used for? The PM7524FSR7 is a digital-to-analog converter used to generate accurate analog signals from digital inputs.
- What is the resolution of the PM7524FSR7? The PM7524FSR7 has an 8-bit resolution.
- What is the package type of the PM7524FSR7? The PM7524FSR7 comes in an SOIC-8 package.
- What is the operating voltage range of the PM7524FSR7? The PM7524FSR7 operates within a supply voltage range of 2.7V to 5.5V.
- What is the typical current consumption of the PM7524FSR7? The typical current consumption is 200 μA.
- What is the operating temperature range of the PM7524FSR7? The operating temperature range is -40°C to 85°C.
- What interface type does the PM7524FSR7 use? The PM7524FSR7 uses a serial interface.
- Where can I purchase the PM7524FSR7? The PM7524FSR7 can be purchased from various electronics distributors such as Digi-Key, JAK Electronics, and Bowell-IC.
- What are some common applications of the PM7524FSR7? Common applications include industrial control systems, aerospace and defense systems, medical devices, automotive systems, and consumer electronics.
- Is the PM7524FSR7 suitable for high-temperature environments? Yes, the PM7524FSR7 is suitable for high-temperature environments with an operating temperature range of -40°C to 85°C.
