Overview

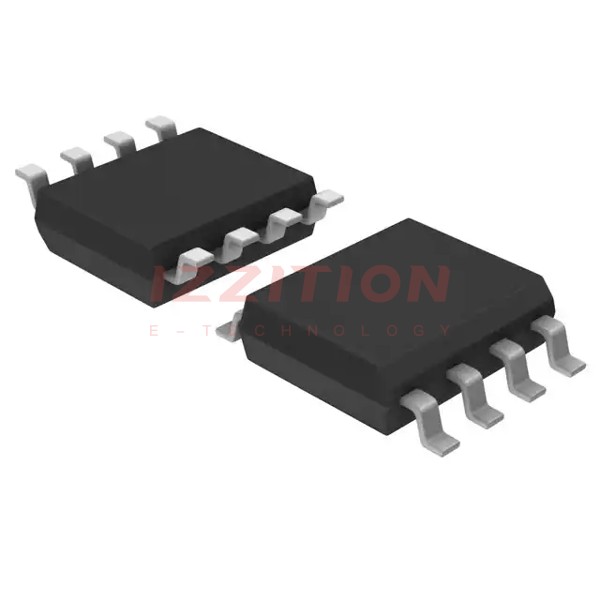

The OP37GS8#TRPBF is a high-performance, low-noise, precision operational amplifier produced by Analog Devices Inc. This device is renowned for its high gain bandwidth product, low input bias current, and low input offset voltage, making it suitable for a wide range of applications requiring high precision and reliability.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Package | SOP-8 (Small Outline Package) |
| Number of Channels | 1 |
| Gain Bandwidth Product (GBP) | 63 MHz |
| Input Offset Voltage (VOS) | 30 μV (typical) |
| Input Bias Current (IB) | 15 nA (typical) |
| Operating Temperature Range | -55°C to 125°C |
| Supply Voltage Range | ±4.5 V to ±18 V (8 V to 36 V total) |
| Common Mode Rejection Ratio (CMRR) | 94 dB (typical) |
| Power Supply Rejection Ratio (PSRR) | 2 to 32 mV/V (typical) |
| Output Voltage Swing | ±11.4 V (typical at RL ≥ 2 kΩ) |
| RoHS Compliance | Non-RoHS Compliant |
Key Features
- High gain bandwidth product of 63 MHz
- Low input bias current of 15 nA (typical)
- Low input offset voltage of 30 μV (typical)
- Wide operating temperature range from -55°C to 125°C
- Supply voltage range from ±4.5 V to ±18 V (8 V to 36 V total)
- High common mode rejection ratio (CMRR) of 94 dB (typical)
Applications
- Audio amplification
- Instrumentation amplification
- Medical devices
- Industrial control systems
- Automotive electronics
Q & A
- Q: What is the gain bandwidth product of the OP37GS8#TRPBF?
A: The gain bandwidth product is 63 MHz. - Q: What is the typical input offset voltage of the OP37GS8#TRPBF?
A: The typical input offset voltage is 30 μV. - Q: What is the operating temperature range of the OP37GS8#TRPBF?
A: The operating temperature range is from -55°C to 125°C. - Q: What is the supply voltage range for the OP37GS8#TRPBF?
A: The supply voltage range is from ±4.5 V to ±18 V (8 V to 36 V total). - Q: Is the OP37GS8#TRPBF RoHS compliant?
A: No, the OP37GS8#TRPBF is not RoHS compliant. - Q: What are the typical applications of the OP37GS8#TRPBF?
A: Typical applications include audio amplification, instrumentation amplification, medical devices, industrial control systems, and automotive electronics. - Q: What is the package type of the OP37GS8#TRPBF?
A: The package type is SOP-8 (Small Outline Package). - Q: What is the common mode rejection ratio (CMRR) of the OP37GS8#TRPBF?
A: The typical CMRR is 94 dB. - Q: How do I obtain technical support for the OP37GS8#TRPBF?
A: Technical support, including pinout information, application notes, and datasheets, can be provided by the manufacturer's technical engineers. - Q: What is the process for returning or replacing a defective OP37GS8#TRPBF?
A: Returns or replacements are accepted if the product is defective, and the conditions specified by the supplier (e.g., informing within 90 days, returning in original packaging) are met.
