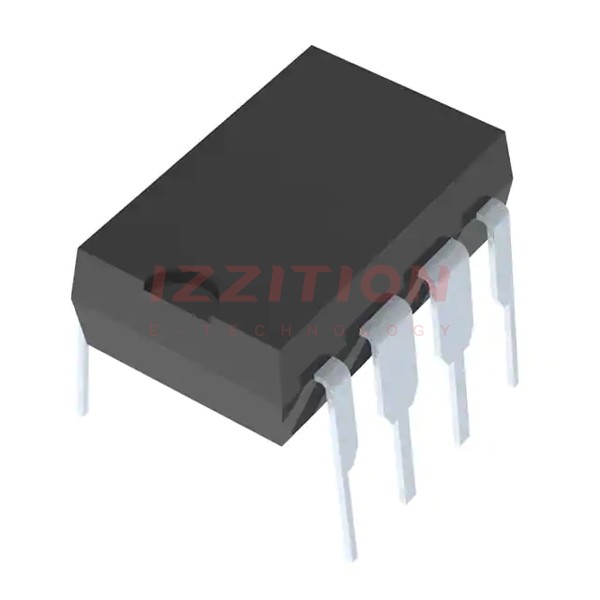

OP177GP
  • Share:

Analog Devices Inc. OP177GP

Manufacturer No:
OP177GP
Manufacturer:
Analog Devices Inc.
Package:
Tube
Description:
IC OPAMP GP PREC LN 8DIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The OP177GP, produced by Analog Devices Inc., is a high-performance, ultraprecision operational amplifier. It is renowned for its exceptional precision and stability, making it an ideal choice for a wide range of applications requiring high accuracy and reliability. The OP177GP features an ultralow offset voltage, outstanding offset voltage drift, and excellent open-loop gain, ensuring accurate performance in high closed-loop gain applications.

Key Specifications

ParameterSymbolMinTypMaxUnit
Input Offset VoltageVOS102560µV
Long-Term Input Offset Voltage Stability∆VOS/Time0.30.4µV/Mo
Input Offset CurrentIOS0.31.52.8nA
Input Bias CurrentIB-0.21.22.8nA
Input Noise Voltageen118150nV rms
Input Noise Currentin38pA rms
Input Resistance (Differential-Mode)RIN2645MΩ
Input Resistance (Common-Mode)RINCM200GΩ
Input Voltage RangeIVR±13±14V
Common-Mode Rejection RatioCMRR130140dB
Power Supply Rejection RatioPSRR115125dB
Supply CurrentIS1.62mA
Gain Bandwidth ProductGBP600kHz
Slew RateSr0.3V/μs
Operating TemperatureTa-40+85°C

Key Features

  • Ultralow Offset Voltage: The OP177GP has an offset voltage of only 10 µV max at room temperature and 20 µV max over the full military temperature range, ensuring high precision and accuracy.
  • Exceptional Offset Voltage Drift: With a drift of 0.1 µV/°C max, this amplifier eliminates the need for external offset voltage adjustment and maintains system accuracy over temperature.
  • Excellent Open-Loop Gain and Gain Linearity: The OP177GP maintains an open-loop gain of 12 V/µV over the full ±10 V output range.
  • High CMRR and PSRR: Common-Mode Rejection Ratio (CMRR) of 130 dB min and Power Supply Rejection Ratio (PSRR) of 115 dB min ensure excellent performance in various applications.
  • Low Supply Current: The amplifier has a maximum supply current of 2 mA, making it power-efficient.
  • Compatibility with Standard Sockets: It fits industry-standard precision op-amp sockets (OP07/OP77).
  • Low Noise and Drift: The OP177GP features low noise and drift, making it suitable for high-precision applications.

Applications

  • Instrumentation and Measurement Systems: Ideal for precision measurement and instrumentation due to its high accuracy and stability.
  • Analog Signal Processing: Suitable for various analog signal processing tasks requiring high precision.
  • Precision Voltage Regulation: Used in precision voltage regulation applications where stability and accuracy are crucial.
  • Filtering and Signal Conditioning: Effective in filtering and signal conditioning applications due to its excellent noise and drift characteristics.
  • Data Acquisition and Control Systems: Utilized in data acquisition and control systems where high precision and reliability are necessary.

Q & A

  1. What is the maximum input offset voltage of the OP177GP at room temperature?
    The maximum input offset voltage of the OP177GP at room temperature is 25 µV.
  2. What is the typical slew rate of the OP177GP?
    The typical slew rate of the OP177GP is 0.3 V/μs.
  3. What is the common-mode rejection ratio (CMRR) of the OP177GP?
    The CMRR of the OP177GP is 130 dB min.
  4. What is the power supply rejection ratio (PSRR) of the OP177GP?
    The PSRR of the OP177GP is 115 dB min.
  5. What is the operating temperature range of the OP177GP?
    The operating temperature range of the OP177GP is -40°C to +85°C.
  6. What is the gain bandwidth product of the OP177GP?
    The gain bandwidth product of the OP177GP is 600 kHz.
  7. Is the OP177GP RoHS compliant?
    Yes, the OP177GP is RoHS compliant.
  8. What are the typical input noise voltage and current of the OP177GP?
    The typical input noise voltage is 150 nV rms, and the typical input noise current is 8 pA rms.
  9. What is the maximum supply current of the OP177GP?
    The maximum supply current of the OP177GP is 2 mA.
  10. In what packages is the OP177GP available?
    The OP177GP is available in 8-pin epoxy DIP and 8-pin Small-Outline (SO) packages.

Product Attributes

Amplifier Type:General Purpose
Number of Circuits:1
Output Type:-
Slew Rate:0.3V/µs
Gain Bandwidth Product:600 kHz
-3db Bandwidth:-
Current - Input Bias:1.2 nA
Voltage - Input Offset:20 µV
Current - Supply:1.6mA
Current - Output / Channel:-
Voltage - Supply Span (Min):6 V
Voltage - Supply Span (Max):36 V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Through Hole
Package / Case:8-DIP (0.300", 7.62mm)
Supplier Device Package:8-PDIP
0 Remaining View Similar

In Stock

$1.45
289

Please send RFQ , we will respond immediately.

Same Series
DD15S2S5WV5X
DD15S2S5WV5X
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S200V3S/AA
DD15S200V3S/AA
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S20LVL0/AA
DD15S20LVL0/AA
CONN D-SUB HD RCPT 15P SLDR CUP
RD15S10HV50/AA
RD15S10HV50/AA
CONN D-SUB RCPT 15POS CRIMP
DD15S20Z00
DD15S20Z00
CONN D-SUB HD RCPT 15P SLDR CUP
DD26M20HT20/AA
DD26M20HT20/AA
CONN D-SUB HD PLUG 26P SLDR CUP
DD26S200T0/AA
DD26S200T0/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S5000/AA
DD26S2S5000/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S0V3X/AA
DD26S2S0V3X/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S20W0X/AA
DD26S20W0X/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD44S32S60T2X
DD44S32S60T2X
CONN D-SUB HD RCPT 44P VERT SLDR
CBC47W1S1S50V5S
CBC47W1S1S50V5S
CONN D-SUB RCPT 47POS CRIMP

Similar Products

Part Number OP177GP OP177GPZ OP177GZ OP177GS OP177FP
Manufacturer Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc.
Product Status Obsolete Active Active Obsolete Obsolete
Amplifier Type General Purpose General Purpose General Purpose General Purpose General Purpose
Number of Circuits 1 1 1 1 1
Output Type - - Differential - -
Slew Rate 0.3V/µs 0.3V/µs 0.3V/µs 0.3V/µs 0.3V/µs
Gain Bandwidth Product 600 kHz 600 kHz 600 kHz 600 kHz 600 kHz
-3db Bandwidth - - - - -
Current - Input Bias 1.2 nA 1.2 nA 1.2 nA 1.2 nA 1.2 nA
Voltage - Input Offset 20 µV 20 µV 20 µV 20 µV 10 µV
Current - Supply 1.6mA 1.6mA 1.6mA 1.6mA 1.6mA
Current - Output / Channel - - - - -
Voltage - Supply Span (Min) 6 V 6 V 6 V 6 V 6 V
Voltage - Supply Span (Max) 36 V 36 V 36 V 36 V 36 V
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Mounting Type Through Hole Through Hole Surface Mount Surface Mount Through Hole
Package / Case 8-DIP (0.300", 7.62mm) 8-DIP (0.300", 7.62mm) 8-SOIC (0.154", 3.90mm Width) 8-SOIC (0.154", 3.90mm Width) 8-DIP (0.300", 7.62mm)
Supplier Device Package 8-PDIP 8-PDIP 8-SOIC 8-SOIC 8-PDIP
