Overview
The MAX7651CCB is a 12-bit analog-to-digital converter (ADC) produced by Analog Devices Inc./Maxim Integrated. This integrated circuit is designed to provide high accuracy and reliability in various analog-to-digital conversion applications. The MAX7651CCB features a successive approximation register (SAR) architecture, which is known for its balance between speed and power efficiency.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Number of Inputs | 8 |
| Conversion Type | Successive Approximation Register (SAR) |
| Analog Supply Voltage | 4.5V to 5.5V |
| Digital Supply Voltage | 4.5V to 5.5V |
| Operating Temperature | -40°C to 85°C (typical range, may vary) |

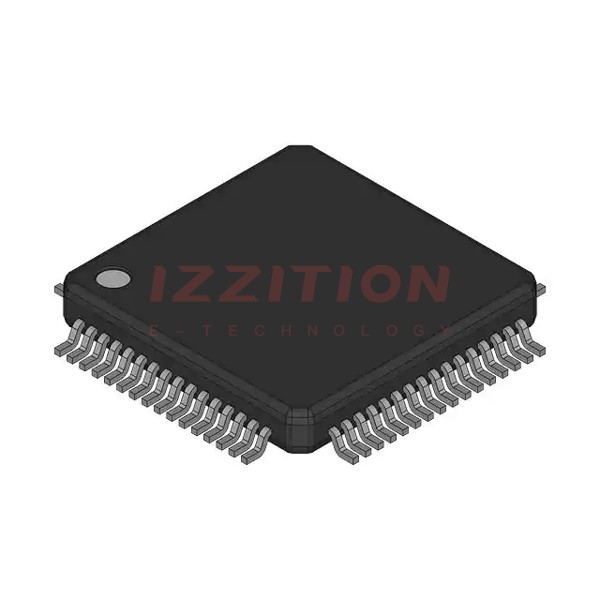

| Package/Case | 64-LQFP (10x10 mm) |
Key Features
- High-resolution 12-bit SAR ADC for precise analog-to-digital conversion.
- Eight analog input channels for multiple signal processing.
- Low power consumption, making it suitable for battery-powered devices.
- Wide operating temperature range for robust performance in various environments.
- Compact 64-LQFP package for space-efficient design.
Applications
The MAX7651CCB is versatile and can be used in a variety of applications, including:
- Industrial automation and control systems.
- Medical devices requiring precise analog-to-digital conversion.
- Aerospace and defense systems where reliability and accuracy are critical.
- Automotive systems, such as sensor interfaces and data acquisition.
- Consumer electronics, including audio and video equipment.
Q & A
- What is the resolution of the MAX7651CCB ADC?
The MAX7651CCB has a resolution of 12 bits. - How many analog input channels does the MAX7651CCB have?
The MAX7651CCB has eight analog input channels. - What is the conversion type of the MAX7651CCB?
The MAX7651CCB uses a Successive Approximation Register (SAR) conversion type. - What is the operating temperature range of the MAX7651CCB?
The operating temperature range is typically -40°C to 85°C. - What package type is the MAX7651CCB available in?
The MAX7651CCB is available in a 64-LQFP package. - What are the typical supply voltage ranges for the MAX7651CCB?
The analog and digital supply voltage ranges are 4.5V to 5.5V. - Is the MAX7651CCB suitable for battery-powered devices?
Yes, the MAX7651CCB is suitable for battery-powered devices due to its low power consumption. - Can the MAX7651CCB be used in medical devices?
Yes, the MAX7651CCB can be used in medical devices where precise analog-to-digital conversion is required. - Is the MAX7651CCB compatible with automotive systems?
Yes, the MAX7651CCB is compatible with automotive systems, including sensor interfaces and data acquisition. - Where can I find detailed specifications and datasheets for the MAX7651CCB?
Detailed specifications and datasheets can be found on the official Analog Devices Inc./Maxim Integrated website, as well as on distributor websites like Digi-Key and Mouser.
