Overview
The MAX19588ETN+D is a high-performance, 16-bit analog-to-digital converter (ADC) produced by Analog Devices Inc./Maxim Integrated. This component is designed to meet the stringent dynamic performance requirements of multichannel, multimode receivers. It features a fully differential wideband track-and-hold (T/H) stage and operates at a conversion rate of up to 100Msps. The MAX19588 is optimized for applications requiring superior sensitivity and dynamic range, making it ideal for high-performance digital receivers.
Key Specifications
| Parameter | Value |
|---|---|
| Conversion Rate | Up to 100Msps |
| Noise Floor | -82dBFS |
| Signal-to-Noise Ratio (SNR) | 79.4dB at fIN = 10MHz, 79dB at fIN = 70MHz |
| Spurious-Free Dynamic Range (SFDR) | 93.2dBc/102.5dBc at fIN = 10MHz, 82.1dBc/97.7dBc at fIN = 70MHz |
| Sampling Jitter | Less than 0.1ps |
| Power Dissipation | 1275mW |
| Analog Input Voltage Range | 2.56V P-P (fully differential) |
| Output Format | CMOS-compatible two's-complement |

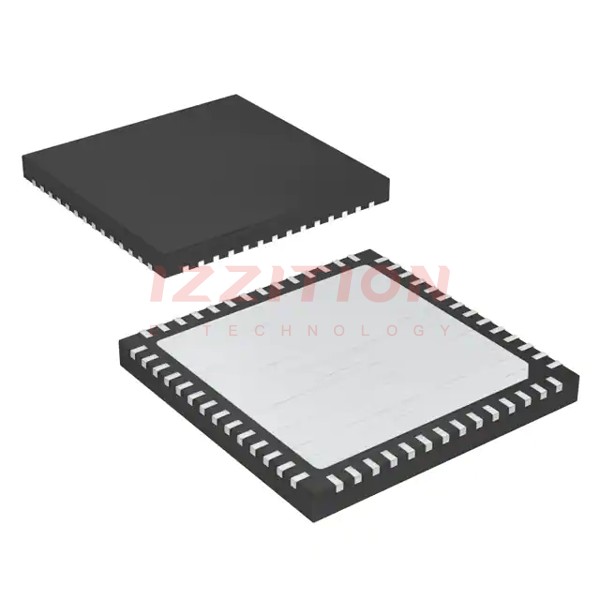

| Package Type | 56-pin, 8mm x 8mm x 0.8mm thin QFN with exposed paddle (EP) |
| Temperature Range | -40°C to +85°C |
Key Features
- High-speed conversion rate of up to 100Msps
- Excellent low-noise characteristics with a -82dBFS noise floor
- High dynamic range with SNR of 79.4dB at fIN = 10MHz and 79dB at fIN = 70MHz
- Low sampling jitter of less than 0.1ps
- Flexible input clock buffer and separate data valid clock and over-range outputs
- CMOS-compatible two's-complement data output
- Small 56-pin thin QFN package with exposed paddle for low thermal resistance
- Evaluation kit available (MAX19588EVKIT)
Applications
- Antenna Array Processing
- Cellular Base-Station Transceiver Systems (BTS)
- E911 Location Receivers
- High-Performance Instrumentation
- Multicarrier Receivers
- Multistandard Receivers
- Wireless Local Loop (WLL)
Q & A
- What is the conversion rate of the MAX19588ETN+D?
The MAX19588ETN+D has a conversion rate of up to 100Msps. - What is the noise floor of the MAX19588ETN+D?
The noise floor is -82dBFS. - What is the signal-to-noise ratio (SNR) of the MAX19588ETN+D at different input frequencies?
The SNR is 79.4dB at fIN = 10MHz and 79dB at fIN = 70MHz. - What is the spurious-free dynamic range (SFDR) of the MAX19588ETN+D?
The SFDR is 93.2dBc/102.5dBc at fIN = 10MHz and 82.1dBc/97.7dBc at fIN = 70MHz. - What is the sampling jitter of the MAX19588ETN+D?
The sampling jitter is less than 0.1ps. - What is the power dissipation of the MAX19588ETN+D?
The power dissipation is 1275mW. - What is the analog input voltage range of the MAX19588ETN+D?
The analog input voltage range is 2.56V P-P (fully differential). - What is the output format of the MAX19588ETN+D?
The output format is CMOS-compatible two's-complement. - What is the package type and size of the MAX19588ETN+D?
The package type is a 56-pin, 8mm x 8mm x 0.8mm thin QFN with exposed paddle (EP). - What is the temperature range of the MAX19588ETN+D?
The temperature range is -40°C to +85°C.
