MAX19191ETI+T
  • Share:

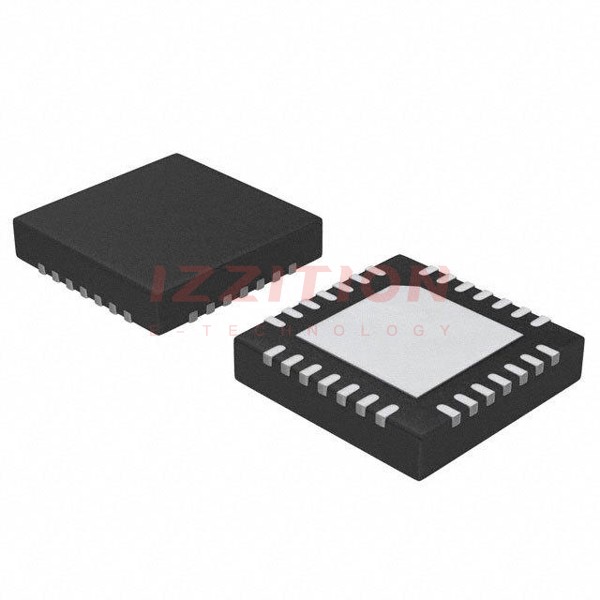

Analog Devices Inc./Maxim Integrated MAX19191ETI+T

Manufacturer No:
MAX19191ETI+T
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tape & Reel (TR)
Description:
IC ADC 8BIT PIPELINED 28TQFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MAX19191ETI+T is an ultra-low-power, 8-bit analog-to-digital converter (ADC) produced by Analog Devices Inc./Maxim Integrated. This device is designed for high-performance applications requiring low power consumption and excellent dynamic performance. The MAX19191 features a fully differential wideband track-and-hold (T/H) input with a 440MHz bandwidth, capable of accepting both fully differential and single-ended analog signals. It operates at a maximum sampling rate of 10Msps and consumes only 15.3mW during normal operation, with a shutdown mode power consumption of just 2µW. The ADC is ideal for various applications including imaging, instrumentation, and digital communications due to its ultra-low power, high dynamic performance, and compact size.

Key Specifications

ParameterValue
Resolution8-bit
Maximum Sampling Rate10Msps
Analog Supply Voltage2.7V to 3.6V
Digital Output Supply Voltage1.8V to 3.6V
Input Bandwidth440MHz
Signal-to-Noise and Distortion (SINAD)48.6dB at fIN= 1.875MHz
Spurious-Free Dynamic Range (SFDR)70dBc at fIN= 1.875MHz
Power Consumption (Normal Operation)15.3mW
Power Consumption (Shutdown Mode)2µW
Package Type28-pin Thin QFN
Operating Temperature Range-40°C to +85°C

Key Features

  • Ultra-low power consumption: 15.3mW at 10Msps and 2µW in shutdown mode
  • Excellent dynamic performance: 48.6dB SINAD and 70dBc SFDR at fIN= 1.875MHz
  • Fully differential or single-ended analog inputs with AC- or DC-coupled configuration
  • Internal or external reference option with a precision bandgap reference
  • Parallel, CMOS-compatible three-state outputs with offset binary format
  • Three power-down modes for power conservation
  • Compact 5mm × 5mm, 28-pin thin QFN package

Applications

  • Battery-Powered Portable Instruments
  • Digital Audio Receiver Front-End
  • Low-Power Video
  • Ultrasound and Medical Imaging
  • WLAN, Mobile DSL, WLL Receiver

Q & A

  1. What is the maximum sampling rate of the MAX19191?
    The MAX19191 has a maximum sampling rate of 10Msps.
  2. What is the power consumption of the MAX19191 during normal operation?
    The power consumption during normal operation is 15.3mW.
  3. What is the power consumption in shutdown mode?
    The power consumption in shutdown mode is 2µW.
  4. What types of analog inputs does the MAX19191 support?
    The MAX19191 supports both fully differential and single-ended analog inputs.
  5. What is the input bandwidth of the track-and-hold amplifier?
    The input bandwidth of the track-and-hold amplifier is 440MHz.
  6. What is the typical SINAD of the MAX19191 at an input frequency of 1.875MHz?
    The typical SINAD is 48.6dB at an input frequency of 1.875MHz.
  7. Can the MAX19191 use an external reference?
    Yes, the MAX19191 can use either its internal reference or an externally applied reference.
  8. What is the operating temperature range of the MAX19191?
    The operating temperature range is -40°C to +85°C.
  9. What package type is the MAX19191 available in?
    The MAX19191 is available in a 28-pin thin QFN package.
  10. Is an evaluation kit available for the MAX19191?
    Yes, an evaluation kit (MAX19191EVKIT+) is available for evaluating the performance of the MAX19191.

Product Attributes

Number of Bits:8
Sampling Rate (Per Second):10M
Number of Inputs:1
Input Type:Differential, Single Ended
Data Interface:Parallel
Configuration:S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:Pipelined
Reference Type:-
Voltage - Supply, Analog:2.7V ~ 3.6V
Voltage - Supply, Digital:1.8V ~ 3.6V
Features:Simultaneous Sampling
Operating Temperature:-40°C ~ 85°C
Package / Case:28-WFQFN Exposed Pad
Supplier Device Package:28-TQFN (5x5)
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$5.46
150

Please send RFQ , we will respond immediately.
