Overview

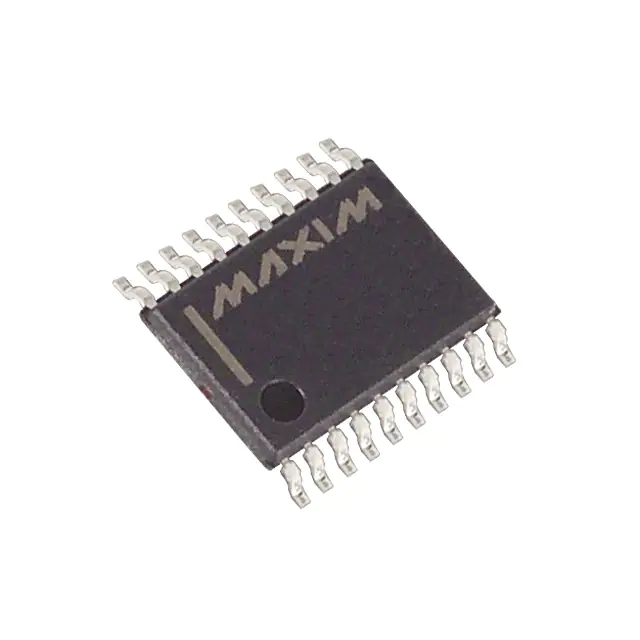

The MAX1773AEUP+T, produced by Analog Devices Inc./Maxim Integrated, is a highly integrated IC designed to serve as the control logic for systems with multiple power sources. This component is part of the MAX1773/MAX1773A family and is specifically tailored for power management and control in various applications.
Key Specifications
| Parameter | Value |
|---|---|
| Input Voltage Range | 4.75V to 28V |
| Current Consumption | 1mA |
| Package Type | 20-Pin TSSOP |
| Operating Temperature | -40°C to +85°C (typical) |
| Power Source Selection | Dual-Battery System |
Key Features
- Direct drive of external P-channel MOSFETs
- Cable drop compensation
- Current limit switches
- Digital power system management
- Energy monitoring
- High-side switches and MOSFET drivers
- Hot swap controllers
- Ideal diode bridge
Applications
- Power management in dual-battery systems
- Hot swap applications
- Energy monitoring and control systems
- High-reliability power systems requiring redundant power sources
- Industrial and automotive power management systems
Q & A
- What is the input voltage range of the MAX1773AEUP+T?
The input voltage range is from 4.75V to 28V. - What type of package does the MAX1773AEUP+T come in?
The component comes in a 20-Pin TSSOP package. - What is the typical current consumption of the MAX1773AEUP+T?
The typical current consumption is 1mA. - What is the operating temperature range of the MAX1773AEUP+T?
The operating temperature range is from -40°C to +85°C. - What is the primary function of the MAX1773AEUP+T?
The primary function is to serve as the control logic for systems with multiple power sources, including dual-battery systems. - Does the MAX1773AEUP+T support hot swap operations?
Yes, it supports hot swap operations. - What kind of MOSFETs can the MAX1773AEUP+T drive?
The MAX1773AEUP+T can directly drive external P-channel MOSFETs. - Is the MAX1773AEUP+T suitable for energy monitoring applications?
Yes, it is suitable for energy monitoring and control systems. - Can the MAX1773AEUP+T be used in industrial applications?
Yes, it can be used in industrial and automotive power management systems. - What other features does the MAX1773AEUP+T include?
It includes features such as cable drop compensation, current limit switches, and ideal diode bridge.
