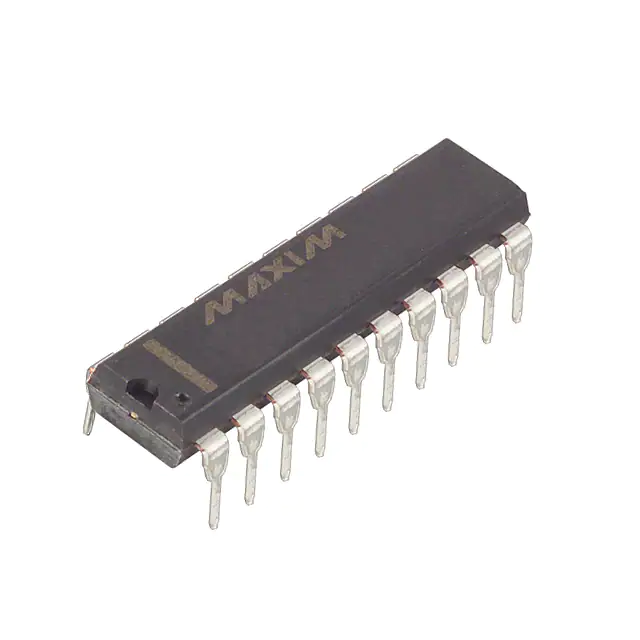

Analog Devices Inc./Maxim Integrated MAX153CPP+CGP

Manufacturer No:
MAX153CPP+CGP
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tube
Description:
IC ADC 8BIT FLASH 20DIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MAX153CPP+CGP is a high-speed, microprocessor (µP)-compatible, 8-bit analog-to-digital converter (ADC) produced by Maxim Integrated, now part of Analog Devices Inc. This ADC utilizes a half-flash conversion technique to achieve a conversion time of 660ns and a sampling rate of 1 million samples per second (Msps). It is designed to operate with either single +5V or dual ±5V supplies and can accept both unipolar and bipolar input signals. The device features a power-down mode that reduces current consumption to a typical value of 1µA, making it suitable for applications requiring low power consumption.

Key Specifications

Parameter Min Typ Max Unit Description
Conversion Time - 660 - ns Half-flash conversion time
Sampling Rate - 1 Msps - - Million samples per second
Supply Voltage +4.75 +5 +5.25 V Single +5V or dual ±5V supplies
Power-Down Current (VDD) - 1 - µA Typical current in power-down mode
Power-Down Current (VSS) - 25 100 µA Typical current in power-down mode
Power-Supply Rejection - ±1/16 ±1/4 LSB Power-supply rejection ratio

Key Features

  • High-Speed Conversion: Achieves a conversion time of 660ns using a half-flash technique.
  • Microprocessor Compatibility: The µP interface appears as a memory location or input/output port, requiring no external interface logic.
  • Low Power Consumption: Power-down mode reduces current consumption to 1µA.
  • Flexible Supply Options: Operates with single +5V or dual ±5V supplies.
  • Input Flexibility: Accepts both unipolar and bipolar input signals.
  • Fast Recovery from Power-Down: Returns from power-down to normal operating mode in less than 200ns.
  • Latched, Three-State Buffered Outputs: For direct connection to a µP data bus or system input port.

Applications

  • Data Acquisition Systems: Suitable for high-speed data acquisition applications.
  • Industrial Control Systems: Used in control systems requiring fast and accurate analog-to-digital conversion.
  • Medical Devices: Applicable in medical devices that need high-speed ADCs with low power consumption.
  • Aerospace and Defense: Used in various aerospace and defense applications requiring high reliability and performance.
  • Automotive Systems: Suitable for automotive systems that require fast and accurate analog-to-digital conversion.

Q & A

  1. What is the conversion time of the MAX153CPP+CGP?

    The conversion time of the MAX153CPP+CGP is 660ns.

  2. What is the sampling rate of the MAX153CPP+CGP?

    The sampling rate is 1 million samples per second (Msps).

  3. What are the supply voltage options for the MAX153CPP+CGP?

    The device can operate with either single +5V or dual ±5V supplies.

  4. What is the current consumption in power-down mode?

    The current consumption in power-down mode is typically 1µA.

  5. How quickly does the MAX153CPP+CGP recover from power-down mode?

    The device returns from power-down to normal operating mode in less than 200ns.

  6. Is the MAX153CPP+CGP compatible with microprocessors?

    Yes, the device is microprocessor-compatible and appears as a memory location or input/output port.

  7. What type of input signals can the MAX153CPP+CGP accept?

    The device can accept both unipolar and bipolar input signals.

  8. What is the purpose of the POWERDN pin?

    The POWERDN pin is used to reduce current consumption to a low power-down mode.

  9. How are the data outputs of the MAX153CPP+CGP configured?

    The data outputs use latched, three-state buffered circuitry for direct connection to a µP data bus or system input port.

  10. What are some typical applications of the MAX153CPP+CGP?

    Typical applications include data acquisition systems, industrial control systems, medical devices, aerospace and defense systems, and automotive systems.

Product Attributes

Number of Bits:8
Sampling Rate (Per Second):1M
Number of Inputs:1
Input Type:Single Ended
Data Interface:Parallel
Configuration:S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:Flash
Reference Type:External
Voltage - Supply, Analog:5V
Voltage - Supply, Digital:-
Features:-
Operating Temperature:0°C ~ 70°C
Package / Case:20-DIP (0.300", 7.62mm)
Supplier Device Package:20-PDIP
Mounting Type:Through Hole
