Overview

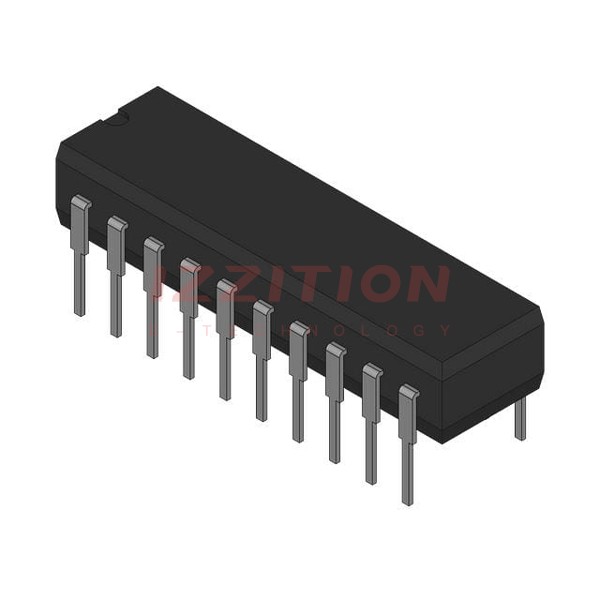

The MAX150, specifically the MAX150BMJP, is a high-speed, microprocessor-compatible, 8-bit analog-to-digital converter (ADC) produced by Analog Devices Inc./Maxim Integrated. This component utilizes a half-flash technique to achieve a conversion time of 1.34 μs, making it suitable for applications requiring rapid analog-to-digital conversion. The MAX150 features a built-in track-and-hold function and an on-chip 2.5 V reference output, enhancing its functionality and ease of integration into various systems.
Key Specifications
| Specification | Value |
|---|---|
| Conversion Time | 1.34 μs |
| Analog Input Range | 0V to +5V |
| Supply Voltage | Single +5V |
| Resolution | 8-bit |
| Track-and-Hold Function | Built-in, supports input slew rates up to 100mV/μs |
| Reference Output | On-chip 2.5 V reference |
| Interface Compatibility | Microprocessor compatible, appears as a memory location or I/O port |
| Data Outputs | Latched, three-state buffer circuitry |
| Package Options | Plastic Dual-In-Line, Narrow (0.3in), Small-Outline IC, Wide (0.3in) |
Key Features
- High-speed conversion with a conversion time of 1.34 μs
- Built-in track-and-hold function, eliminating the need for external track-and-hold for input slew rates up to 100mV/μs
- On-chip 2.5 V reference output for complete ADC functionality
- Microprocessor compatibility, allowing it to appear as a memory location or I/O port without external interfacing logic
- Latched, three-state buffer circuitry for direct connection to microprocessor data bus or system input port
- Overflow output for cascading devices to achieve higher resolution
Applications
The MAX150 is suitable for a variety of applications that require high-speed analog-to-digital conversion. These include:
- Industrial control systems
- Medical devices
- Aerospace and defense systems
- Automotive systems
- Data acquisition systems
Q & A
- What is the conversion time of the MAX150 ADC?
The conversion time of the MAX150 ADC is 1.34 μs. - What is the analog input range of the MAX150?
The analog input range of the MAX150 is 0V to +5V. - Does the MAX150 require an external track-and-hold circuit?
No, the MAX150 has a built-in track-and-hold function. - What is the resolution of the MAX150 ADC?
The resolution of the MAX150 ADC is 8-bit. - Is the MAX150 compatible with microprocessors?
- What type of data output does the MAX150 use?
The MAX150 uses latched, three-state buffer circuitry for its data outputs.- Can the MAX150 be cascaded for higher resolution?
- What are the package options for the MAX150?
The MAX150 is available in Plastic Dual-In-Line, Narrow (0.3in), and Small-Outline IC, Wide (0.3in) packages.- Does the MAX150 have an on-chip reference output?
- What is the supply voltage requirement for the MAX150?
The MAX150 requires a single +5V supply voltage. - What type of data output does the MAX150 use?
