Overview
The MAX1437ECQ+D, produced by Analog Devices Inc./Maxim Integrated, is an octal, 12-bit analog-to-digital converter (ADC) designed for high-dynamic performance and low power consumption. This ADC features a pipelined architecture and digital error correction, incorporating a fully differential signal path. It is optimized for applications in medical imaging instrumentation and digital communications. The device operates from a single 1.8V supply, consuming 768mW (96mW per channel), and delivers a 69.9dB signal-to-noise ratio (SNR) at a 5.3MHz input frequency. It also includes a power-down mode for idle periods to further reduce power consumption.
Key Specifications
| Parameter | Value | Units |
|---|---|---|
| Resolution | 12-bit | |
| Sample Rate | Up to 50Msps | |
| Analog Supply Voltage | 1.7V to 1.9V | V |
| Digital Supply Voltage | 1.7V to 1.9V | V |
| Signal-to-Noise Ratio (SNR) | 69.9dB | dB |
| Spurious-Free Dynamic Range (SFDR) | 96dBc at 5.3MHz | dBc |
| Channel Isolation | 95dB | dB |
| Power Consumption | 96mW per channel | mW |

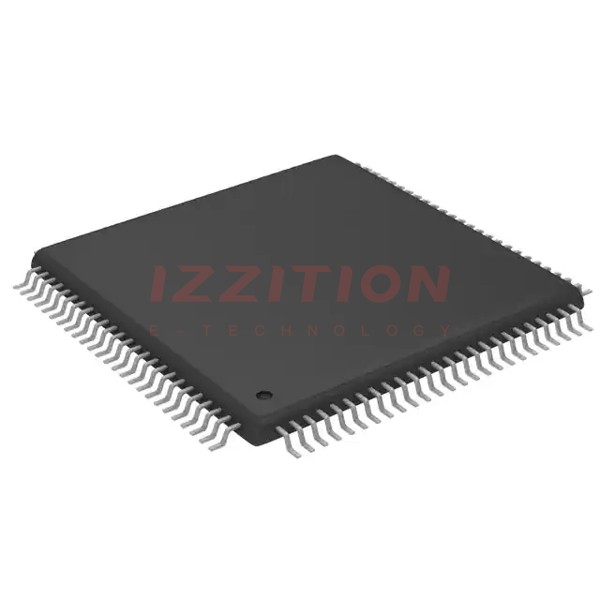

| Package Type | 100-Pin TQFP with Exposed Pad | |
| Operating Temperature Range | -40°C to +85°C | °C |
Key Features
- Excellent dynamic performance with 69.9dB SNR and 96dBc SFDR at 5.3MHz
- Ultra-low power consumption of 96mW per channel
- Serial LVDS outputs supporting up to 30 inches FR-4 backplane connections
- Pin-selectable LVDS/SLVS (Scalable Low-Voltage Signal) mode
- Test mode for digital signal integrity
- Fully differential analog inputs with a wide differential input voltage range (1.4V P-P)
- On-chip 1.24V precision bandgap reference
- Clock duty-cycle equalizer
- Compact 100-Pin TQFP package with exposed pad
- Evaluation kit available (MAX1437EVKIT)
Applications
- Instrumentation
- Multichannel Communications
- Ultrasound and Medical Imaging
Q & A
- What is the resolution of the MAX1437ECQ+D ADC?
The MAX1437ECQ+D is a 12-bit analog-to-digital converter. - What is the maximum sample rate of the MAX1437ECQ+D?
The maximum sample rate is up to 50Msps. - What is the power consumption per channel of the MAX1437ECQ+D?
The power consumption is 96mW per channel. - What type of output does the MAX1437ECQ+D use?
The MAX1437ECQ+D uses serial LVDS outputs. - What is the operating temperature range of the MAX1437ECQ+D?
The operating temperature range is -40°C to +85°C. - Does the MAX1437ECQ+D support external reference voltage?
Yes, the MAX1437ECQ+D supports both internal and external reference voltages. - What is the package type of the MAX1437ECQ+D?
The package type is a 100-Pin TQFP with an exposed pad. - Is an evaluation kit available for the MAX1437ECQ+D?
Yes, an evaluation kit (MAX1437EVKIT) is available. - What are the typical applications of the MAX1437ECQ+D?
The typical applications include instrumentation, multichannel communications, and ultrasound and medical imaging. - Does the MAX1437ECQ+D have a power-down mode?
Yes, the MAX1437ECQ+D features a power-down mode for idle periods.
