Overview

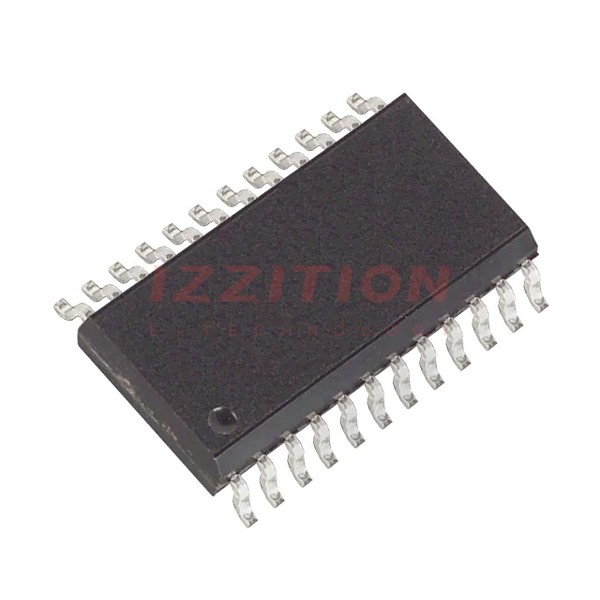

The MAX132CWG+C10203 is an 18-bit analog-to-digital converter (ADC) produced by Maxim Integrated, now part of Analog Devices Inc. This component is designed with a serial interface and is known for its high accuracy and low power consumption. It is suitable for a variety of applications requiring precise analog-to-digital conversion.
Key Specifications
| Parameter | Specification |
|---|---|
| Resolution | 18 bits |
| Supply Current | 60μA (Normal Operation), 1μA (Sleep-Mode Operation) |
| Accuracy | ±0.006% FSR at 16 conversions per second |
| Noise | 15μVRMS |
| Interface | Serial Interface |
Key Features
The MAX132CWG+C10203 features several key attributes that make it a robust choice for various applications:
- High Accuracy: The ADC offers ±0.006% full-scale range (FSR) accuracy at 16 conversions per second.
- Low Power Consumption: It operates with a low supply current of 60μA in normal operation and 1μA in sleep mode.
- Low Noise: The component has a low noise level of 15μVRMS.
- Serial Interface: It includes a serial interface for easy communication with other components.
Applications
The MAX132CWG+C10203 is versatile and can be used in a variety of applications, including:
- Industrial Automation: For precise measurement and control in industrial settings.
- Medical Devices: Where high accuracy and low noise are critical for diagnostic and monitoring equipment.
- Aerospace and Defense: In systems requiring high reliability and precision.
- Test and Measurement Equipment: For applications needing accurate analog-to-digital conversion.
Q & A
- What is the resolution of the MAX132CWG+C10203 ADC?
The MAX132CWG+C10203 has a resolution of 18 bits. - What is the typical supply current for the MAX132CWG+C10203 in normal operation?
The typical supply current is 60μA in normal operation and 1μA in sleep mode. - What is the accuracy of the MAX132CWG+C10203 at 16 conversions per second?
The accuracy is ±0.006% FSR at 16 conversions per second. - What is the noise level of the MAX132CWG+C10203?
The noise level is 15μVRMS. - What type of interface does the MAX132CWG+C10203 use?
The MAX132CWG+C10203 uses a serial interface. - Who is the manufacturer of the MAX132CWG+C10203?
The manufacturer is Maxim Integrated, now part of Analog Devices Inc. - What are some common applications for the MAX132CWG+C10203?
Common applications include industrial automation, medical devices, aerospace and defense, and test and measurement equipment. - How does the MAX132CWG+C10203 handle power consumption?
The component is designed for low power consumption, with 60μA in normal operation and 1μA in sleep mode. - Is the MAX132CWG+C10203 suitable for high-reliability applications?
Yes, it is suitable for high-reliability applications due to its high accuracy and low noise. - Where can I find detailed specifications for the MAX132CWG+C10203?
Detailed specifications can be found in the datasheet available on the Maxim Integrated website or through distributors like Digi-Key, Mouser, etc.
