Overview
The MAX12553ETL+T is a 14-bit, 65Msps analog-to-digital converter (ADC) designed by Analog Devices Inc./Maxim Integrated. This device is optimized for low power consumption, small size, and high dynamic performance, making it ideal for various high-speed data acquisition applications. The MAX12553 operates from a single 3.15V to 3.60V supply and features a fully differential wideband track-and-hold (T/H) input amplifier, driving a low-noise internal quantizer. It supports both single-ended and differential analog input signals and is particularly suited for intermediate-frequency (IF) sampling applications.
Key Specifications
| Parameter | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Resolution | - | - | 14 bits | - | - |
| Sampling Rate | - | - | 65 Msps | - | - |
| Analog Supply Voltage (VDD) | - | 3.15 | 3.3 | 3.60 | V |
| Power Consumption (Normal Operating Mode) | fIN = 175MHz, single-ended clock | - | 337 mW | - | mW |
| Power Consumption (Normal Operating Mode) | fIN = 175MHz, differential clock | - | 363 mW | - | mW |
| Power Consumption (Power-Down Mode) | - | - | 150 µW | - | µW |
| Signal-to-Noise Ratio (SNR) | fIN = 3MHz | - | 74 dB | - | dB |
| Signal-to-Noise Ratio (SNR) | fIN = 175MHz | - | 71 dB | - | dB |
| Spurious-Free Dynamic Range (SFDR) | fIN = 3MHz | - | 90.6 dBc | - | dBc |
| Spurious-Free Dynamic Range (SFDR) | fIN = 175MHz | - | 80.7 dBc | - | dBc |
| Noise Floor | - | - | -76 dBFS | - | dBFS |
| Analog Input Range | - | ±0.35V | - | ±1.10V | V |
Key Features
- Fully differential wideband track-and-hold (T/H) input amplifier
- Supports single-ended or differential analog input signals
- Low power consumption: 337mW (single-ended clock mode) and 363mW (differential clock mode)
- Low noise floor: -76 dBFS
- Adjustable full-scale analog input range: ±0.35V to ±1.10V
- CMOS-compatible outputs in Two’s Complement or Gray Code
- Data-Valid Indicator and Data Out-of-Range Indicator for simplified digital interface
- Miniature 40-pin Thin QFN package with exposed paddle
- Evaluation kit available (MAX12553EVKIT)
Applications
- Intermediate-frequency (IF) sampling applications
- High-speed data acquisition systems
- Radar and communication systems
- Medical imaging and diagnostics
- Aerospace and defense applications
Q & A
- What is the resolution and sampling rate of the MAX12553 ADC?
The MAX12553 ADC has a resolution of 14 bits and a sampling rate of 65 Msps.
- What is the operating voltage range for the MAX12553?
The MAX12553 operates from a single 3.15V to 3.60V supply.
- How much power does the MAX12553 consume in normal operating mode?
The MAX12553 consumes 337mW in single-ended clock mode and 363mW in differential clock mode at an input frequency of 175MHz.
- What is the signal-to-noise ratio (SNR) of the MAX12553 at different input frequencies?
The SNR is 74 dB at 3 MHz and 71 dB at 175 MHz.
- Does the MAX12553 support both single-ended and differential analog input signals?
Yes, the MAX12553 supports both single-ended and differential analog input signals.
- What is the noise floor of the MAX12553?
The noise floor of the MAX12553 is -76 dBFS.
- What is the adjustable full-scale analog input range of the MAX12553?
The adjustable full-scale analog input range is ±0.35V to ±1.10V.
- Does the MAX12553 have any indicators for digital interface?
Yes, it has a Data-Valid Indicator and a Data Out-of-Range Indicator.

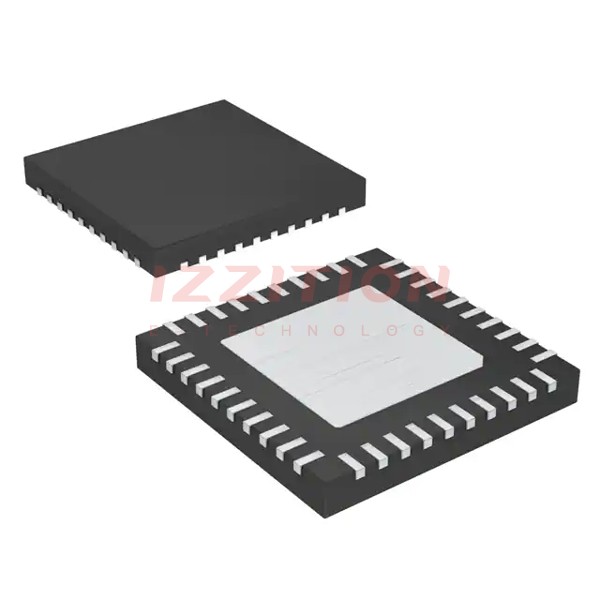

- What type of package does the MAX12553 come in?
The MAX12553 comes in a miniature 40-pin Thin QFN package with an exposed paddle.
- Is an evaluation kit available for the MAX12553?
Yes, an evaluation kit (MAX12553EVKIT) is available.
