MAX1245BCPP
  • Share:

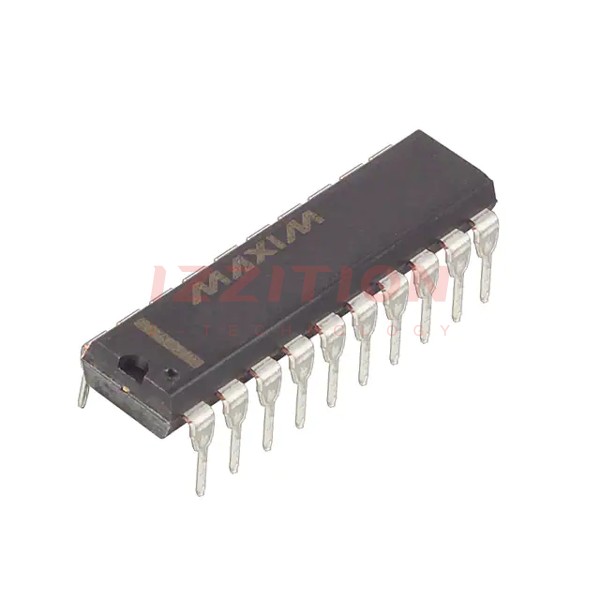

Analog Devices Inc./Maxim Integrated MAX1245BCPP

Manufacturer No:
MAX1245BCPP
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tube
Description:
IC ADC 12BIT SAR 20DIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MAX1245BCPP is a 12-bit analog-to-digital converter (ADC) produced by Analog Devices Inc./Maxim Integrated. This component is part of the SAR (Successive Approximation Register) ADC family, known for its high accuracy and reliability. The MAX1245BCPP is designed to provide precise analog-to-digital conversion, making it suitable for a variety of applications that require high-resolution data acquisition.

Key Specifications

SpecificationValue
Number of Converters1 Converter
Resolution12 bits
Operating Supply Voltage2.375 V to 3.3 V
Power Dissipation889 mW
Package Type20-PDIP
Number of Inputs4 or 8 inputs

Key Features

  • High-resolution 12-bit analog-to-digital conversion
  • Single converter with 4 or 8 input channels
  • Operating supply voltage range: 2.375 V to 3.3 V
  • Low power dissipation of 889 mW
  • 20-PDIP package for ease of integration
  • SAR architecture for precise and reliable conversions

Applications

The MAX1245BCPP is versatile and can be used in various applications requiring high-precision analog-to-digital conversion. Some common applications include:

  • Data acquisition systems
  • Industrial control systems
  • Medical devices
  • Aerospace and defense systems
  • Automotive systems

Q & A

  1. What is the resolution of the MAX1245BCPP ADC?
    The MAX1245BCPP has a resolution of 12 bits.
  2. How many input channels does the MAX1245BCPP support?
    The MAX1245BCPP supports either 4 or 8 input channels.
  3. What is the operating supply voltage range for the MAX1245BCPP?
    The operating supply voltage range is 2.375 V to 3.3 V.
  4. What is the power dissipation of the MAX1245BCPP?
    The power dissipation is 889 mW.
  5. In what package is the MAX1245BCPP available?
    The MAX1245BCPP is available in a 20-PDIP package.
  6. What type of ADC architecture does the MAX1245BCPP use?
    The MAX1245BCPP uses the SAR (Successive Approximation Register) architecture.
  7. What are some common applications for the MAX1245BCPP?
    Common applications include data acquisition systems, industrial control systems, medical devices, aerospace and defense systems, and automotive systems.
  8. Who manufactures the MAX1245BCPP?
    The MAX1245BCPP is manufactured by Analog Devices Inc./Maxim Integrated.
  9. Where can I purchase the MAX1245BCPP?
    You can purchase the MAX1245BCPP from distributors such as Digi-Key, Mouser, and others.
  10. What is the significance of the SAR architecture in the MAX1245BCPP?
    The SAR architecture provides precise and reliable analog-to-digital conversions, making it suitable for high-accuracy applications.

Product Attributes

Number of Bits:12
Sampling Rate (Per Second):100k
Number of Inputs:4, 8
Input Type:Differential, Single Ended
Data Interface:SPI
Configuration:MUX-S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:SAR
Reference Type:External
Voltage - Supply, Analog:2.375V ~ 3.3V
Voltage - Supply, Digital:2.375V ~ 3.3V
Features:-
Operating Temperature:0°C ~ 70°C
Package / Case:20-DIP (0.300", 7.62mm)
Supplier Device Package:20-PDIP
Mounting Type:Through Hole
0 Remaining View Similar

In Stock

$8.62
62

Please send RFQ , we will respond immediately.
