Overview
The MAX1219ECQ+TD, produced by Maxim Integrated (now part of Analog Devices Inc.), is a dual, monolithic, 12-bit analog-to-digital converter (ADC) designed for high-performance applications. This device is notable for its outstanding dynamic performance, making it ideal for wideband applications such as communications receivers, cable head-end receivers, and power-amplifier predistortion in cellular base-station transceivers. The MAX1219 operates from a single 1.8V power supply and supports AC-coupled, differential, or single-ended analog input operations.
Key Specifications
| Parameter | Value | Conditions |
|---|---|---|
| Resolution | 12-bit | |
| Sampling Rate | Up to 210Msps | |
| Input Frequency Range | Up to 250MHz | |
| Signal-to-Noise Ratio (SNR) | 65.5dB at 200MHz | fSAMPLE = 210MHz, fIN = 200MHz |
| Spurious-Free Dynamic Range (SFDR) | 79dBc at 200MHz | fSAMPLE = 210MHz, fIN = 200MHz |
| Power Supply | Single 1.8V | |
| Power Consumption | 800mW per channel | fSAMPLE = 210MHz |
| Operating Temperature Range | -40°C to +85°C | |

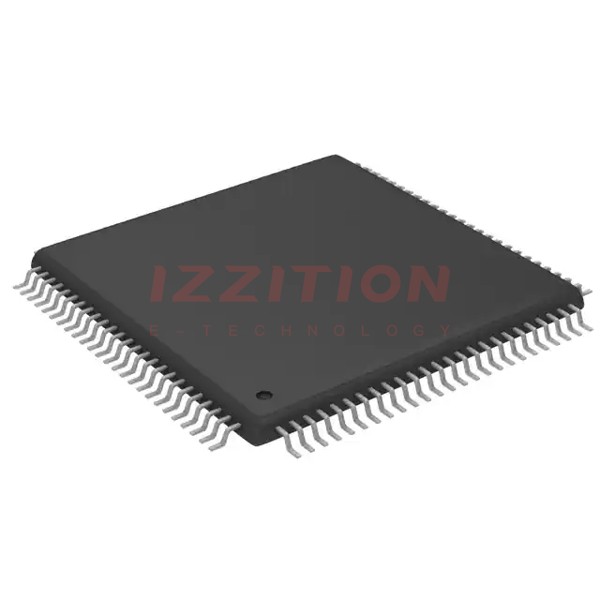

| Package | 100-TQFP Exposed Paddle |
Key Features
- Dual-channel, 12-bit ADC with up to 210Msps sampling rate.
- Outstanding dynamic performance with 65.5dB SNR and 79dBc SFDR at 200MHz input frequency.
- Single 1.8V power supply operation.
- Support for AC-coupled, differential, or single-ended analog input operations.
- Selectable on-chip divide-by-2 clock divider.
- Low power consumption of 800mW per channel at 210Msps.
Applications
- Communications receivers
- Cable head-end receivers
- Power-amplifier predistortion in cellular base-station transceivers
- Wideband applications requiring high dynamic performance
Q & A
- What is the resolution of the MAX1219ECQ+TD ADC?
The MAX1219ECQ+TD has a 12-bit resolution.
- What is the maximum sampling rate of the MAX1219ECQ+TD?
The maximum sampling rate is up to 210Msps.
- What is the input frequency range supported by the MAX1219ECQ+TD?
The device supports input frequencies up to 250MHz.
- What is the power supply requirement for the MAX1219ECQ+TD?
The device operates from a single 1.8V power supply.
- What is the power consumption of the MAX1219ECQ+TD at 210Msps?
The power consumption is 800mW per channel at 210Msps.
- What types of analog input operations are supported by the MAX1219ECQ+TD?
The device supports AC-coupled, differential, or single-ended analog input operations.
- What is the operating temperature range of the MAX1219ECQ+TD?
The operating temperature range is -40°C to +85°C.
- What package type is the MAX1219ECQ+TD available in?
The device is available in a 100-TQFP Exposed Paddle package.
- What are some typical applications of the MAX1219ECQ+TD?
Typical applications include communications receivers, cable head-end receivers, and power-amplifier predistortion in cellular base-station transceivers.
- How does the MAX1219ECQ+TD achieve high dynamic performance?
The device achieves high dynamic performance with a 65.5dB SNR and 79dBc SFDR at 200MHz input frequency.
