Overview
The MAX1168CEEG is a multichannel, 16-bit analog-to-digital converter (ADC) produced by Analog Devices Inc./Maxim Integrated. This device is part of the MAX1167/MAX1168 family, known for its low power consumption, high resolution, and versatile interface options. The MAX1168CEEG features a successive-approximation ADC architecture, an integrated +4.096V reference, and a high-speed SPI/QSPI/MICROWIRE-compatible serial interface. It is designed to operate with a single +5V analog supply and can interface directly with digital logic ranging from +2.7V to +5.5V.
Key Specifications
| Parameter | Value | Units |
|---|---|---|
| Resolution | 16-bit | |
| Sampling Rate | 200ksps | |
| Analog Supply Voltage | +5V | |
| Digital Supply Voltage | +2.7V to +5.5V | |
| Input Channels | 8 channels | |
| Internal Reference | +4.096V | |
| Interface | SPI/QSPI/MICROWIRE-compatible | |

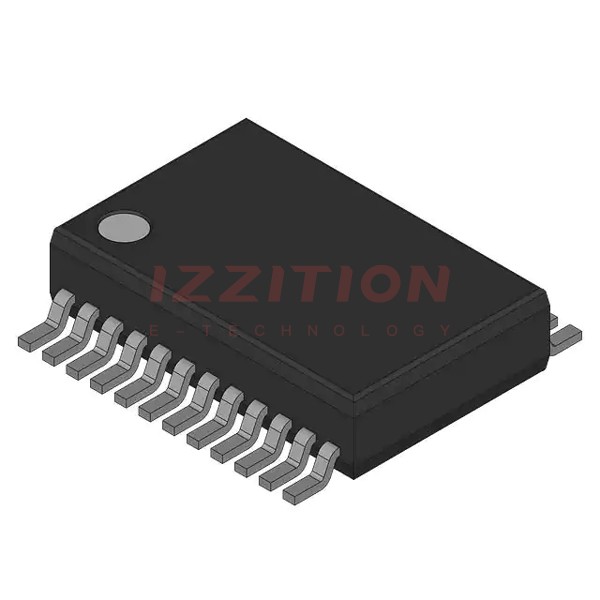

| Package | 24-pin QSOP | |
| Operating Temperature Range | -40°C to +85°C | |
| Power Consumption | 3.6mA at 200ksps, < 10µA in full power-down mode |
Key Features
- 16-bit resolution with no missing codes
- Single +5V analog supply operation
- Adjustable logic level (+2.7V to +5.25V)
- Input voltage range: 0 to VREF
- Internal (+4.096V) or external reference option
- Internal track/hold, 4MHz input bandwidth
- Internal or external clock option
- SPI/QSPI/MICROWIRE-compatible serial interface
- Scan mode for sequential or continuous conversion of multiple channels
- Low power consumption: 3.6mA at 200ksps, < 10µA in full power-down mode
- Small package size: 24-pin QSOP
- DSP-initiated conversions with DSP frame-sync input and output
- 8-bit-wide or 16-bit-wide data-transfer mode
Applications
- Motor Control
- Industrial Process Control
- Industrial I/O Modules
- Data-Acquisition Systems
- Thermocouple Measurements
- Accelerometer Measurements
Q & A
- What is the resolution of the MAX1168CEEG ADC?
The MAX1168CEEG has a 16-bit resolution.
- What is the maximum sampling rate of the MAX1168CEEG?
The maximum sampling rate is 200ksps.
- What is the operating voltage range for the analog supply of the MAX1168CEEG?
The analog supply operates at a single +5V.
- How many input channels does the MAX1168CEEG support?
The MAX1168CEEG supports up to 8 analog input channels.
- What type of serial interface does the MAX1168CEEG use?
The MAX1168CEEG uses a SPI/QSPI/MICROWIRE-compatible serial interface.
- What is the package type of the MAX1168CEEG?
The MAX1168CEEG is available in a 24-pin QSOP package.
- What is the operating temperature range of the MAX1168CEEG?
The operating temperature range is -40°C to +85°C.
- How much power does the MAX1168CEEG consume at 200ksps?
The MAX1168CEEG consumes 3.6mA at 200ksps.
- Does the MAX1168CEEG support DSP-initiated conversions?
- Can the MAX1168CEEG operate in different data-transfer modes?
