MAX11628EEE/V+
  • Share:

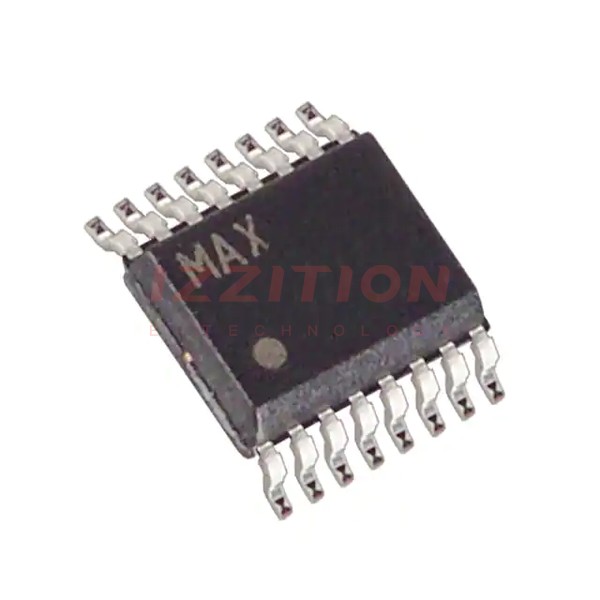

Analog Devices Inc./Maxim Integrated MAX11628EEE/V+

Manufacturer No:
MAX11628EEE/V+
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tube
Description:
IC ADC 12BIT SAR 16QSOP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MAX11628EEE/V+ is a 12-bit analog-to-digital converter (ADC) produced by Maxim Integrated, now part of Analog Devices Inc. This device is part of a family of low-cost, multichannel ADCs that feature an internal reference, a first-in/first-out (FIFO) buffer, and a serial peripheral interface (SPI) for communication. It is designed for various applications including system monitoring, process control, and instrumentation.

Key Specifications

Parameter Value Units
Resolution 12 bits
Sampling Rate Up to 300 ksps
Number of Channels 8 channels
Supply Voltage 4.75V to 5.25V V
Internal Reference Voltage 4.096V V
External Reference Voltage Range 1V to VDD + 50mV V
Conversion Time (Internally Clocked) 3.5 µs µs
Conversion Time (Externally Clocked) 2.7 µs µs
Aperture Delay 30 ns ns
Aperture Jitter < 50 ps ps
Input Leakage Current ±0.01 µA µA
Input Capacitance During Acquisition 24 pF pF
Interface 10MHz 3-Wire SPI-/QSPI-/MICROWIRE-Compatible
Package 16-Pin QSOP

Key Features

  • Analog Multiplexer with Track/Hold: Supports single-ended inputs with 8 channels.
  • Internal Reference: 4.096V reference voltage.
  • External Reference Input: Accepts reference voltages from 1V to VDD + 50mV.
  • FIFO Buffer: 16-entry first-in/first-out buffer for efficient data handling.
  • Scan Mode and Internal Averaging: Enhances data acquisition flexibility.
  • Internal Clock Mode: Allows for internal clock operation.
  • AutoShutdown™: Reduces power consumption during idle periods.
  • High Accuracy: ±1 LSB INL, ±1 LSB DNL, no missing codes over temperature.
  • Low Power Consumption: Suitable for battery-powered and power-sensitive applications.

Applications

  • System Monitoring: Ideal for monitoring various system parameters.
  • Process Control: Used in industrial control systems to measure and control process variables.
  • Instrumentation: Suitable for precision measurement instruments and data acquisition systems.
  • Medical Devices: Can be used in medical equipment for precise analog-to-digital conversion.
  • Automotive Systems: Applicable in automotive systems for sensor data acquisition and monitoring.

Q & A

  1. What is the resolution of the MAX11628EEE/V+ ADC?

    The MAX11628EEE/V+ has a 12-bit resolution.

  2. What is the maximum sampling rate of the MAX11628EEE/V+?

    The maximum sampling rate is up to 300 ksps.

  3. How many channels does the MAX11628EEE/V+ support?

    The device supports 8 channels.

  4. What is the supply voltage range for the MAX11628EEE/V+?

    The supply voltage range is from 4.75V to 5.25V.

  5. What is the internal reference voltage of the MAX11628EEE/V+?

    The internal reference voltage is 4.096V.

  6. Does the MAX11628EEE/V+ support external reference voltage?

    Yes, it supports external reference voltages from 1V to VDD + 50mV.

  7. What is the conversion time for the MAX11628EEE/V+ when internally clocked?

    The conversion time is 3.5 µs when internally clocked.

  8. What is the aperture delay of the MAX11628EEE/V+?

    The aperture delay is 30 ns.

  9. What is the interface type of the MAX11628EEE/V+?

    The device uses a 10MHz 3-Wire SPI-/QSPI-/MICROWIRE-Compatible interface.

  10. In what package is the MAX11628EEE/V+ available?

    The device is available in a 16-Pin QSOP package.

Product Attributes

Number of Bits:12
Sampling Rate (Per Second):300k
Number of Inputs:8
Input Type:Single Ended
Data Interface:SPI
Configuration:S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:SAR
Reference Type:External, Internal
Voltage - Supply, Analog:-
Voltage - Supply, Digital:4.75V ~ 5.25V
Features:-
Operating Temperature:-40°C ~ 85°C
Package / Case:16-SSOP (0.154", 3.90mm Width)
Supplier Device Package:16-QSOP
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

-
573

Please send RFQ , we will respond immediately.

Same Series
DD15S200V3S/AA
DD15S200V3S/AA
CONN D-SUB HD RCPT 15P SLDR CUP
DD26M20HT20/AA
DD26M20HT20/AA
CONN D-SUB HD PLUG 26P SLDR CUP
CBC9W4S10HV5S/AA
CBC9W4S10HV5S/AA
CONN D-SUB RCPT 9POS CRIMP
CBC9W4S10HE3S/AA
CBC9W4S10HE3S/AA
CONN D-SUB RCPT 9POS CRIMP
DD26S2S50T0/AA
DD26S2S50T0/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S50TX
DD26S2S50TX
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S0V50
DD26S2S0V50
CONN D-SUB HD RCPT 26P SLDR CUP
RD50S1S500S
RD50S1S500S
CONN D-SUB RCPT 50POS CRIMP
DD44S32S600X
DD44S32S600X
CONN D-SUB HD RCPT 44P VERT SLDR
DD44S32S600X/AA
DD44S32S600X/AA
CONN D-SUB HD RCPT 44P VERT SLDR
CBC21W1S10HE2X/AA
CBC21W1S10HE2X/AA
CONN D-SUB RCPT 21POS CRIMP
DD44S32S500X
DD44S32S500X
CONN D-SUB HD RCPT 44P VERT SLDR

Similar Products

Part Number MAX11628EEE/V+ MAX11628EEE/V+T
Manufacturer Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated
Product Status Active Active
Number of Bits 12 12
Sampling Rate (Per Second) 300k 300k
Number of Inputs 8 8
Input Type Single Ended Single Ended
Data Interface SPI SPI
Configuration S/H-ADC S/H-ADC
Ratio - S/H:ADC 1:1 1:1
Number of A/D Converters 1 1
Architecture SAR SAR
Reference Type External, Internal External, Internal
Voltage - Supply, Analog - -
Voltage - Supply, Digital 4.75V ~ 5.25V 4.75V ~ 5.25V
Features - -
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C
Package / Case 16-SSOP (0.154", 3.90mm Width) 16-SSOP (0.154", 3.90mm Width)
Supplier Device Package 16-QSOP 16-QSOP
Mounting Type Surface Mount Surface Mount
