Overview
The MAX11253ATJ+T, produced by Analog Devices Inc./Maxim Integrated, is a 6-channel, 16-bit delta-sigma analog-to-digital converter (ADC) that stands out for its exceptional performance and low power consumption. This device is designed to handle precision DC measurements with sample rates up to 64ksps. It communicates via a SPI serial interface and is packaged in a compact 5mm x 5mm TQFN package, making it suitable for a variety of applications where space and power efficiency are critical.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 16-bit |
| Number of Channels | 6 |
| Sample Rate | Up to 64ksps |
| Analog Supply Voltage | 2.7V to 3.6V or ±1.8V |
| Digital Supply Voltage | 1.7V to 2.0V or 2.0V to 3.6V |
| Programmable Gain Amplifier (PGA) | Gain settings from 1x to 128x, 6.2nV/√Hz noise |
| Interface | SPI serial interface |

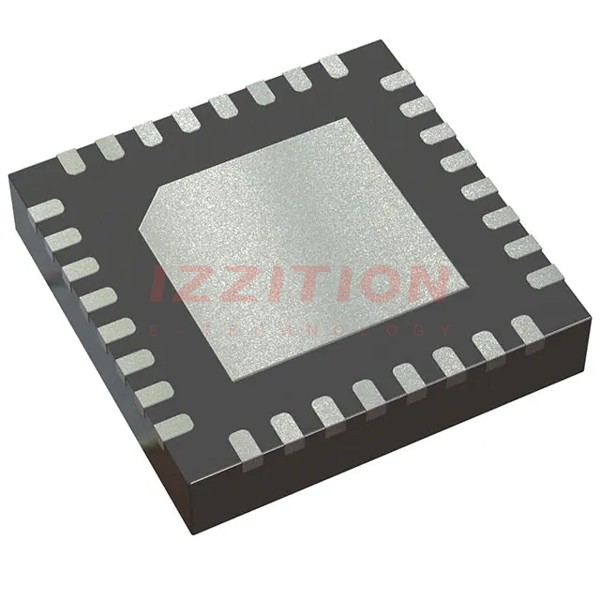

| Package | 5mm x 5mm TQFN |
| Internal Oscillator | 8.192MHz, trimmed for digital and analog timing |
| Voltage Reference Inputs | Differential inputs REFP and REFN for external reference voltage |
Key Features
- Low Power Consumption: The MAX11253 is designed to consume very low power, making it ideal for battery-powered and power-sensitive applications.
- High Precision: With a 16-bit resolution and sample rates up to 64ksps, this ADC is suitable for precision DC measurements.
- Programmable Gain Amplifier (PGA): The integrated PGA offers gain settings from 1x to 128x and a low noise of 6.2nV/√Hz, enabling direct interface with high-impedance sources.
- Flexible Power Supply: The device operates from a single 2.7V to 3.6V analog supply or split ±1.8V analog supplies, and supports digital supply voltages from 1.7V to 3.6V.
- Compact Package: Available in a small 5mm x 5mm TQFN package, making it suitable for space-constrained applications.
- Internal Oscillator and External Clock Mode: The device includes a highly stable internal oscillator and supports an external clock mode for flexibility in system design.
Applications
- Industrial Automation: Suitable for precision measurement and control in industrial automation systems.
- Medical Devices: Ideal for medical devices requiring high precision and low power consumption.
- Aerospace and Defense: Used in various aerospace and defense applications where precision and reliability are critical.
- Automotive Systems: Applicable in automotive systems for sensor measurements and data acquisition.
- Portable Data Acquisition Systems: Perfect for battery-powered data acquisition systems due to its low power consumption.
Q & A
- What is the resolution of the MAX11253ATJ+T ADC?
The MAX11253ATJ+T has a 16-bit resolution. - How many channels does the MAX11253ATJ+T support?
The device supports 6 channels. - What are the sample rates available for the MAX11253ATJ+T?
The sample rates can go up to 64ksps. - What is the range of the analog supply voltage for the MAX11253ATJ+T?
The analog supply voltage range is 2.7V to 3.6V or ±1.8V. - What is the noise level of the PGA in the MAX11253ATJ+T?
The PGA has a noise level of 6.2nV/√Hz. - How does the MAX11253ATJ+T communicate with other devices?
The device communicates via a SPI serial interface. - What is the package size of the MAX11253ATJ+T?
The device is packaged in a 5mm x 5mm TQFN package. - Does the MAX11253ATJ+T support an external clock mode?
Yes, the device supports both an internal oscillator and an external clock mode. - Can the MAX11253ATJ+T interface directly with high-impedance sources?
Yes, the integrated PGA enables the device to interface directly with high-impedance sources without compromising the dynamic range. - What are some common applications of the MAX11253ATJ+T?
The device is commonly used in industrial automation, medical devices, aerospace and defense, automotive systems, and portable data acquisition systems.
