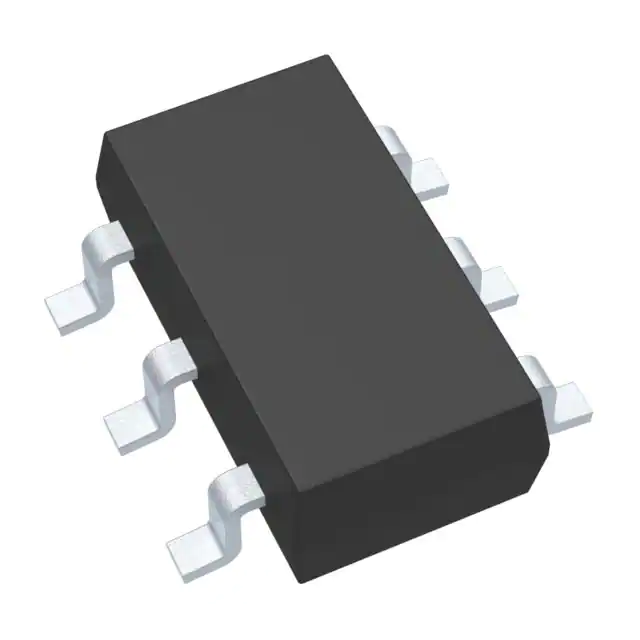

Analog Devices Inc./Maxim Integrated MAX11105AUT+TCBG

Manufacturer No:
MAX11105AUT+TCBG
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tape & Reel (TR)
Description:
IC ADC 12BIT SAR SOT23-6
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MAX11105AUT+TCBG is a high-performance, low-power analog-to-digital converter (ADC) produced by Analog Devices Inc./Maxim Integrated. This device is part of the MAX11105 series, which includes compact, high-speed, successive approximation ADCs. The MAX11105AUT+TCBG is designed for applications requiring low power consumption, high dynamic range, and minimal space.

Key Specifications

Parameter Value
Conversion Rate 2Msps/3Msps
Resolution 12-/10-/8-Bit
Number of Channels 1-/2-Channel, Single-Ended Analog Inputs
Signal-to-Noise Ratio (SNR) 73dB
Supply Voltage 2.2V to 3.6V
Power Consumption 5.2mW at 3Msps, 3.7mW at 2Msps
Interface High-Speed 3-Wire Serial Interface (SPI, QSPI, MICROWIRE)
Package 10-pin TDFN, 10-pin µMAX

Key Features

  • No pipeline delay for real-time conversion
  • Low-noise operation with 73dB SNR
  • Variable I/O configuration
  • Full power-down mode and fast wake-up for optimal power management
  • High-dynamic range sample-and-hold circuitry
  • Separate supply input for data interface and dedicated input for reference voltage

Applications

The MAX11105AUT+TCBG is ideal for portable battery-powered data-acquisition applications and other scenarios that demand low-power consumption and minimal space. These include:

  • Portable medical devices
  • Industrial automation systems
  • Consumer electronics requiring low power and high performance
  • Automotive systems where space and power efficiency are critical

Q & A

  1. What is the conversion rate of the MAX11105AUT+TCBG?

    The conversion rate is 2Msps or 3Msps.

  2. What are the available resolutions for this ADC?

    The available resolutions are 12-bit, 10-bit, and 8-bit.

  3. How many channels does the MAX11105AUT+TCBG support?

    It supports 1 or 2 single-ended analog input channels.

  4. What is the signal-to-noise ratio (SNR) of this ADC?

    The SNR is 73dB.

  5. What is the operating supply voltage range for this device?

    The operating supply voltage range is from 2.2V to 3.6V.

  6. How much power does the MAX11105AUT+TCBG consume at different conversion rates?

    It consumes 5.2mW at 3Msps and 3.7mW at 2Msps.

  7. What type of interface does the MAX11105AUT+TCBG use?

    It uses a high-speed 3-wire serial interface compatible with SPI, QSPI, and MICROWIRE.

  8. What are the available package options for this device?

    The available packages are 10-pin TDFN and 10-pin µMAX.

  9. Does the MAX11105AUT+TCBG have a power-down mode?

    Yes, it has a full power-down mode and fast wake-up for optimal power management.

  10. What are some typical applications for the MAX11105AUT+TCBG?

    Typical applications include portable medical devices, industrial automation systems, consumer electronics, and automotive systems.

Product Attributes

Number of Bits:12
Sampling Rate (Per Second):2M
Number of Inputs:1
Input Type:Single Ended
Data Interface:SPI
Configuration:S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:SAR
Reference Type:Internal
Voltage - Supply, Analog:-
Voltage - Supply, Digital:2.2V ~ 3.6V
Features:-
Operating Temperature:-40°C ~ 125°C
Package / Case:SOT-23-6
Supplier Device Package:SOT-6
Mounting Type:Surface Mount
