MAX11100EWC+
  • Share:

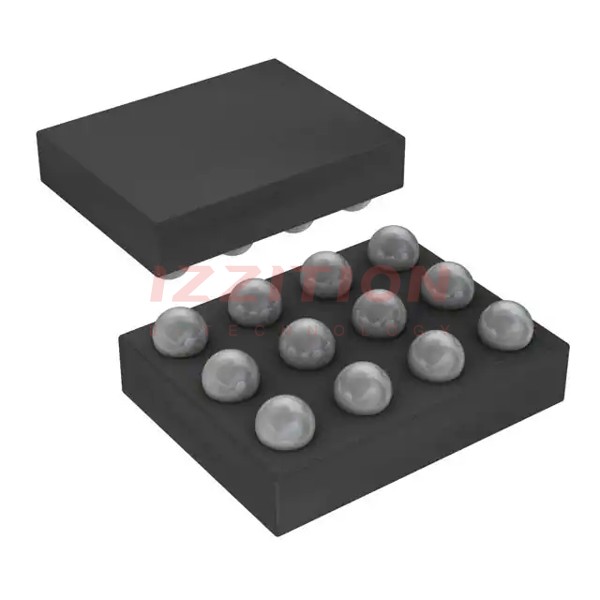

Analog Devices Inc./Maxim Integrated MAX11100EWC+

Manufacturer No:
MAX11100EWC+
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tube
Description:
IC ADC 16BIT SAR 12WLP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MAX11100EWC+ is a low-power, 16-bit analog-to-digital converter (ADC) produced by Analog Devices Inc./Maxim Integrated. This successive-approximation ADC is designed for high-performance and low-power applications, making it ideal for battery-powered devices and data-acquisition systems. It operates with a single +5V analog supply and features a separate digital supply, allowing direct interfacing with 2.7V to 5.25V digital logic.

Key Specifications

ParameterValue
Resolution16 bits
Sampling RateUp to 200ksps
Analog Supply Voltage+5V
Digital Supply Voltage2.7V to 5.25V
Power Consumption (at 200ksps)Typically 2.45mA, 12.25mW
Shutdown CurrentLess than 10µA at reduced sampling rates
InterfaceSPI/QSPI/MICROWIRE compatible
Package Options10-pin µMAX, 12-bump WLP

Key Features

  • 16-bit resolution with no missing codes
  • Single +5V supply operation
  • Adjustable logic level (2.7V to 5.25V)
  • Input voltage range: 0 to VREF
  • High-speed SPI/QSPI/MICROWIRE-compatible interface
  • Automatic power-down and fast wake-up (1.1Fs)
  • Excellent dynamic performance and low power consumption
  • Small package size (10-pin µMAX and 12-bump WLP)

Applications

  • Motor Control
  • Industrial Process Control
  • Industrial I/O Modules
  • Data-Acquisition Systems
  • Thermocouple Measurements
  • Accelerometer Measurements
  • Portable- and Battery-Powered Equipment

Q & A

  1. What is the resolution of the MAX11100EWC+ ADC?
    The MAX11100EWC+ has a 16-bit resolution.
  2. What is the maximum sampling rate of the MAX11100EWC+?
    The maximum sampling rate is up to 200ksps.
  3. What is the typical power consumption at the maximum sampling rate?
    The typical power consumption is 2.45mA, which translates to 12.25mW at VAVDD = VDVDD = +5V.
  4. How does the MAX11100EWC+ manage power consumption in shutdown mode?
    In shutdown mode, the supply current reduces to less than 10µA at reduced sampling rates.
  5. What types of interfaces does the MAX11100EWC+ support?
    The MAX11100EWC+ supports SPI/QSPI/MICROWIRE-compatible interfaces.
  6. What are the package options for the MAX11100EWC+?
    The MAX11100EWC+ is available in 10-pin µMAX and 12-bump WLP packages.
  7. What is the input voltage range for the MAX11100EWC+?
    The input voltage range is from 0 to VREF.
  8. Is the MAX11100EWC+ suitable for battery-powered devices?
    Yes, the MAX11100EWC+ is ideal for battery-powered devices due to its low power consumption.
  9. How does the MAX11100EWC+ handle automatic power-down and wake-up?
    The MAX11100EWC+ features automatic power-down and fast wake-up (1.1Fs).
  10. What are some common applications of the MAX11100EWC+?
    Common applications include motor control, industrial process control, data-acquisition systems, thermocouple measurements, and portable equipment.

Product Attributes

Number of Bits:16
Sampling Rate (Per Second):200k
Number of Inputs:1
Input Type:Single Ended
Data Interface:SPI
Configuration:S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:SAR
Reference Type:External
Voltage - Supply, Analog:5V
Voltage - Supply, Digital:2.7V ~ 5.25V
Features:-
Operating Temperature:-40°C ~ 85°C
Package / Case:12-WFBGA, WLBGA
Supplier Device Package:12-WLP (2.14x1.56)
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

-
78

Please send RFQ , we will respond immediately.
