Overview

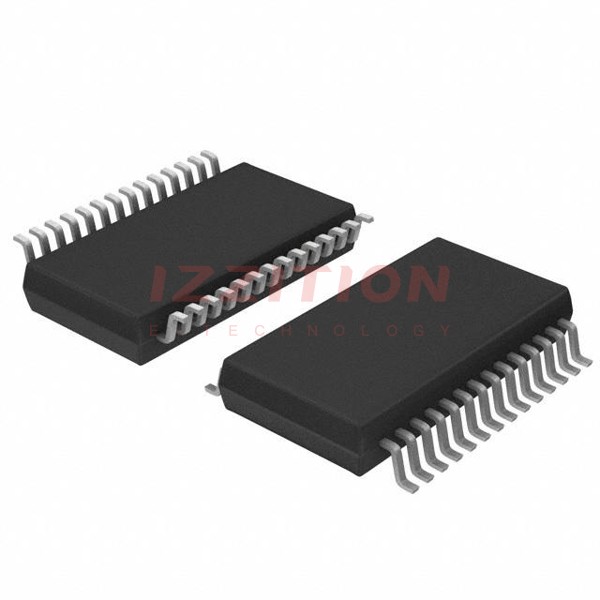

The MAX1090AEEI+ is a low-power, 10-bit analog-to-digital converter (ADC) produced by Analog Devices Inc./Maxim Integrated. This component features a successive-approximation ADC architecture and is designed for high-performance applications requiring low power consumption and fast conversion times. The MAX1090AEEI+ is available in a 28-pin QSOP package, making it suitable for a variety of embedded systems and industrial applications.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 10-bit |
| Conversion Rate | Up to 400 ksamples/s |
| Supply Voltage | +5V |
| Number of Channels | 8-/4-Channel (depending on configuration) |
| Package Type | 28-pin QSOP |
| Wake-Up Time | 2µs |
| Power Consumption | Low power, automatic power-down |
Key Features
- Successive-approximation ADC architecture for high accuracy and speed.
- Low power consumption with automatic power-down feature.
- Fast wake-up time of 2µs.
- Available in 8- or 4-channel configurations.
- Compact 28-pin QSOP package.
Applications
The MAX1090AEEI+ is suitable for a wide range of applications, including industrial control systems, medical devices, data acquisition systems, and embedded systems where low power consumption and high conversion speed are critical. Its compact package and low power features make it ideal for battery-powered devices and space-constrained designs.
Q & A
- What is the resolution of the MAX1090AEEI+ ADC?
The MAX1090AEEI+ has a 10-bit resolution. - What is the maximum conversion rate of the MAX1090AEEI+?
The MAX1090AEEI+ can convert up to 400 ksamples/s. - What is the supply voltage for the MAX1090AEEI+?
The supply voltage for the MAX1090AEEI+ is +5V. - How many channels does the MAX1090AEEI+ support?
The MAX1090AEEI+ supports either 8 or 4 channels, depending on the configuration. - What is the package type of the MAX1090AEEI+?
The MAX1090AEEI+ is packaged in a 28-pin QSOP. - What is the wake-up time of the MAX1090AEEI+?
The wake-up time of the MAX1090AEEI+ is 2µs. - Is the MAX1090AEEI+ power-efficient?
Yes, the MAX1090AEEI+ features low power consumption with automatic power-down. - What are some typical applications for the MAX1090AEEI+?
The MAX1090AEEI+ is used in industrial control systems, medical devices, data acquisition systems, and embedded systems. - Where can I find detailed specifications for the MAX1090AEEI+?
Detailed specifications can be found on the official Analog Devices website, as well as on distributor sites like Digi-Key and Mouser. - What is the ADC architecture used in the MAX1090AEEI+?
The MAX1090AEEI+ uses a successive-approximation ADC architecture.
