MAX1083BEUE+
  • Share:

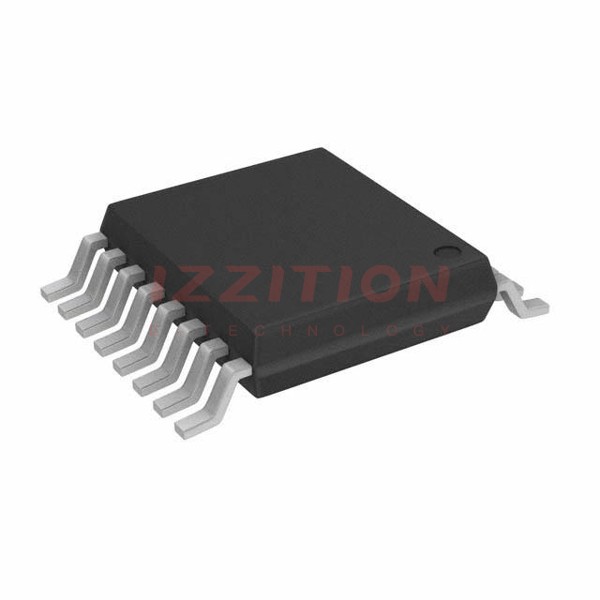

Analog Devices Inc./Maxim Integrated MAX1083BEUE+

Manufacturer No:
MAX1083BEUE+
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tube
Description:
IC ADC 10BIT 300KSPS 16-TSSOP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MAX1083BEUE+ is a 10-bit analog-to-digital converter (ADC) produced by Analog Devices Inc./Maxim Integrated. This device is part of the MAX1082/MAX1083 family, which combines a 4-channel analog-input multiplexer, high-bandwidth track/hold (T/H), and a serial interface. The MAX1083 operates from a single supply voltage ranging from +2.7V to +3.6V, making it suitable for low-power applications. It features an internal +2.5V reference and supports various serial communication protocols such as SPI, QSPI, MICROWIRE, and TMS320-compatible 4-wire serial interface.

Key Specifications

ParameterValueUnits
Resolution10-bit
Sampling Rate300ksps/400ksps
Supply Voltage+2.7V to +3.6VV
Supply Current (Normal Operating Mode)2.5mA (400ksps)mA
Supply Current (Reduced Power Mode)1.3mAmA
Supply Current (Fast Power-Down Mode)0.9mAmA
Supply Current (Full Power-Down Mode)2µAµA
Internal Reference Voltage+2.5VV
Aperture Jitter<50 psps
Aperture Delay10 nsns
Track/Hold Acquisition Time625 nsns
Conversion Time3.3 µsµs
Serial Clock Frequency4.8 MHzMHz
Package Type16-Pin TSSOP

Key Features

  • Single-supply operation: +2.7V to +3.6V
  • Internal +2.5V reference
  • 4-channel analog-input multiplexer
  • High-bandwidth track/hold (T/H)
  • SPI, QSPI, MICROWIRE, and TMS320-compatible 4-wire serial interface
  • Software-configurable unipolar or bipolar inputs
  • Low power consumption: 2.5mA (400ksps), 1.3mA (reduced power), 0.9mA (fast power-down), 2µA (full power-down)
  • 16-Pin TSSOP package

Applications

The MAX1083BEUE+ is suitable for a variety of applications requiring low-power, high-speed analog-to-digital conversion. These include:

  • Industrial automation and control systems
  • Medical devices and diagnostic equipment
  • Aerospace and defense systems
  • Automotive systems, especially those requiring low power consumption
  • Data acquisition systems

Q & A

  1. What is the resolution of the MAX1083BEUE+ ADC?
    The MAX1083BEUE+ has a 10-bit resolution.
  2. What is the operating supply voltage range for the MAX1083BEUE+?
    The MAX1083BEUE+ operates from a single supply voltage ranging from +2.7V to +3.6V.
  3. What are the sampling rates available for the MAX1083BEUE+?
    The MAX1083BEUE+ supports sampling rates of 300ksps and 400ksps.
  4. Does the MAX1083BEUE+ have an internal reference voltage?
    Yes, the MAX1083BEUE+ includes an internal +2.5V reference voltage.
  5. What serial communication protocols does the MAX1083BEUE+ support?
    The MAX1083BEUE+ supports SPI, QSPI, MICROWIRE, and TMS320-compatible 4-wire serial interface.
  6. How many analog input channels does the MAX1083BEUE+ have?
    The MAX1083BEUE+ has 4 analog input channels.
  7. What is the typical power consumption of the MAX1083BEUE+ in normal operating mode?
    The typical power consumption in normal operating mode is 2.5mA at 400ksps.
  8. What is the package type of the MAX1083BEUE+?
    The MAX1083BEUE+ comes in a 16-Pin TSSOP package.
  9. Can the MAX1083BEUE+ be configured for unipolar or bipolar inputs?
    Yes, the MAX1083BEUE+ allows software-configurable unipolar or bipolar inputs.
  10. What are some common applications for the MAX1083BEUE+?
    The MAX1083BEUE+ is commonly used in industrial automation, medical devices, aerospace and defense systems, automotive systems, and data acquisition systems.

Product Attributes

Number of Bits:-
Sampling Rate (Per Second):-
Number of Inputs:-
Input Type:-
Data Interface:-
Configuration:-
Ratio - S/H:ADC:-
Number of A/D Converters:-
Architecture:-
Reference Type:-
Voltage - Supply, Analog:-
Voltage - Supply, Digital:-
Features:-
Operating Temperature:-
Package / Case:-
Supplier Device Package:-
Mounting Type:-
0 Remaining View Similar

In Stock

$12.46
22

Please send RFQ , we will respond immediately.
