MAX1066AEUP+
  • Share:

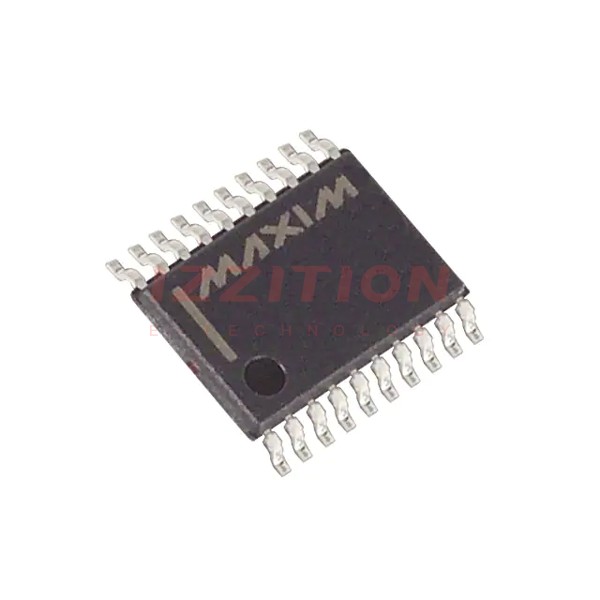

Analog Devices Inc./Maxim Integrated MAX1066AEUP+

Manufacturer No:
MAX1066AEUP+
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tube
Description:
IC ADC 14BIT 165KSPS 20TSSOP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MAX1066AEUP+ is a low-power, 14-bit analog-to-digital converter (ADC) produced by Analog Devices Inc./Maxim Integrated. This device is part of the MAX1065/MAX1066 series, which features successive approximation ADCs with high-speed and low-power consumption. The MAX1066 is particularly notable for its byte-wide parallel interface, making it suitable for a variety of data-acquisition applications, especially in battery-powered systems and space-constrained designs.

Key Specifications

Specification Value
Resolution 14 bits
Sample Rate Up to 165ksps
Analog Supply Voltage 4.75V to 5.25V
Digital Supply Voltage 2.7V to 5.25V
Internal Reference Voltage 4.096V
External Reference Range 3.8V to 5.25V
Power Consumption (External Reference) 1.8mA at 165ksps, 0.1mA in AutoShutdown mode
Power Consumption (Internal Reference) 2.7mA at 165ksps
Package Type 20-pin TSSOP
Operating Temperature Range 0°C to +70°C (commercial), -40°C to +85°C (extended)

Key Features

  • High-speed, byte-wide parallel interface
  • Low power consumption with automatic power-down and AutoShutdown™ mode
  • Factory-trimmed internal 4.096V reference or external reference option
  • High accuracy with ±1LSB DNL (max) and ±1LSB INL (max)
  • Small footprint in a 20-pin TSSOP package
  • Three-state digital data output
  • End-of-conversion (EOC) signal

Applications

The MAX1066AEUP+ is ideal for high-performance, battery-powered, and data-acquisition applications. It is particularly suited for:

  • Battery-powered systems where low power consumption is critical
  • Space-constrained designs due to its small footprint
  • High-speed data acquisition systems requiring accurate and reliable ADCs
  • Industrial and medical devices that require precise analog-to-digital conversion

Q & A

  1. What is the resolution of the MAX1066AEUP+ ADC?

    The MAX1066AEUP+ has a resolution of 14 bits.

  2. What is the maximum sample rate of the MAX1066AEUP+?

    The maximum sample rate is up to 165ksps.

  3. What are the supply voltage ranges for the MAX1066AEUP+?

    The analog supply voltage range is 4.75V to 5.25V, and the digital supply voltage range is 2.7V to 5.25V.

  4. What is the internal reference voltage of the MAX1066AEUP+?

    The internal reference voltage is 4.096V.

  5. How much power does the MAX1066AEUP+ consume during normal operation and in AutoShutdown mode?

    It consumes 1.8mA at 165ksps with an external reference and 2.7mA with an internal reference. In AutoShutdown mode, the power consumption is reduced to 0.1mA at 10ksps.

  6. What package type is the MAX1066AEUP+ available in?

    The MAX1066AEUP+ is available in a 20-pin TSSOP package.

  7. What are the operating temperature ranges for the MAX1066AEUP+?

    The operating temperature ranges are 0°C to +70°C (commercial) and -40°C to +85°C (extended).

  8. What is the significance of the AutoShutdown mode in the MAX1066AEUP+?

    The AutoShutdown mode significantly reduces the supply current to 0.1mA at 10ksps, which is beneficial for battery-powered applications.

  9. Can the MAX1066AEUP+ use an external reference voltage?
  10. What is the accuracy of the MAX1066AEUP+ ADC?

    The MAX1066AEUP+ has an accuracy of ±1LSB DNL (max) and ±1LSB INL (max).

Product Attributes

Number of Bits:-
Sampling Rate (Per Second):-
Number of Inputs:-
Input Type:-
Data Interface:-
Configuration:-
Ratio - S/H:ADC:-
Number of A/D Converters:-
Architecture:-
Reference Type:-
Voltage - Supply, Analog:-
Voltage - Supply, Digital:-
Features:-
Operating Temperature:-
Package / Case:-
Supplier Device Package:-
Mounting Type:-
0 Remaining View Similar

In Stock

$18.95
10

Please send RFQ , we will respond immediately.

Same Series
CBC46W4S10G0X/AA
CBC46W4S10G0X/AA
CONN D-SUB RCPT 46POS CRIMP
RD15S10HE0/AA
RD15S10HE0/AA
CONN D-SUB RCPT 15POS CRIMP
RD15S10HV50/AA
RD15S10HV50/AA
CONN D-SUB RCPT 15POS CRIMP
CBC47W1S10000
CBC47W1S10000
CONN D-SUB RCPT 47POS CRIMP
DD15S200ES/AA
DD15S200ES/AA
CONN D-SUB HD RCPT 15P SLDR CUP
CBC9W4S10HE2S/AA
CBC9W4S10HE2S/AA
CONN D-SUB RCPT 9POS CRIMP
CBC47W1S100V50
CBC47W1S100V50
CONN D-SUB RCPT 47POS CRIMP
DD26S200TX
DD26S200TX
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S50V50/AA
DD26S2S50V50/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD62M32S50V3S/AA
DD62M32S50V3S/AA
CONN D-SUB HD PLUG 62P VERT SLDR
DD44S3200T0
DD44S3200T0
CONN D-SUB HD RCPT 44P VERT SLDR
DD44S32S60T0
DD44S32S60T0
CONN D-SUB HD RCPT 44P VERT SLDR

Similar Products

Part Number MAX1066AEUP+ MAX1066BEUP+
Manufacturer Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated
Product Status Obsolete Obsolete
Number of Bits - 14
Sampling Rate (Per Second) - 165k
Number of Inputs - 1
Input Type - Single Ended
Data Interface - Parallel
Configuration - S/H-ADC
Ratio - S/H:ADC - 1:1
Number of A/D Converters - 1
Architecture - SAR
Reference Type - External, Internal
Voltage - Supply, Analog - 5V
Voltage - Supply, Digital - 2.7V ~ 5.25V
Features - -
Operating Temperature - -40°C ~ 85°C
Package / Case - 20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package - 20-TSSOP
Mounting Type - Surface Mount
