Overview
The LTC6994HS6-1#TRMPBF is a programmable delay block from Analog Devices Inc., part of the TimerBlox family of versatile silicon timing solutions. This component is designed to delay the rising or falling edge of an input signal, offering a delay range from 1 second to 33.6 seconds. It is particularly useful in applications requiring precise timing and delay adjustments.
Key Specifications
| Parameter | Value |
|---|---|
| Delay Range | 1 second to 33.6 seconds |
| Edge Delayed | Rising edge (LTC6994-1), Both rising and falling edges (LTC6994-2) |
| Output Inversion | Optional (LTC6994-2) |

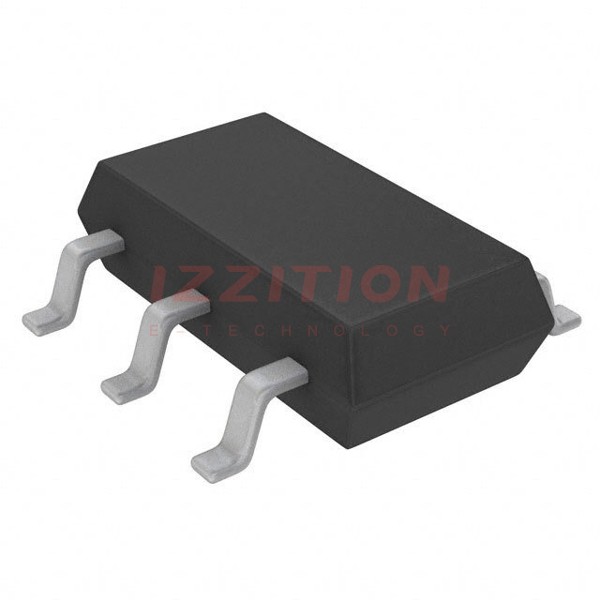

| Package Type | 6-Lead TSOT-23 |
| Operating Temperature | -40°C to 125°C (Industrial Grade) |
| Supply Voltage | 2.7V to 5.5V |
Key Features
- Programmable delay block with a wide delay range (1 second to 33.6 seconds)
- Dynamically adjustable delay time via a separate control voltage
- Option to delay rising or falling edges, or both (depending on the model)
- Optional output inversion (LTC6994-2)
- Compact 6-Lead TSOT-23 package
- Wide operating temperature range (-40°C to 125°C)
- Low supply voltage requirement (2.7V to 5.5V)
Applications
The LTC6994HS6-1#TRMPBF is suitable for various applications requiring precise timing and delay adjustments, such as:
- Industrial control systems
- Automotive systems
- Medical devices
- Aerospace and defense systems
- Telecommunications equipment
Q & A
- What is the delay range of the LTC6994HS6-1#TRMPBF?
The delay range is from 1 second to 33.6 seconds. - Which edges can be delayed by the LTC6994-1 and LTC6994-2?
The LTC6994-1 delays the rising or falling edge, while the LTC6994-2 delays both rising and falling edges. - Can the output be inverted?
Yes, the LTC6994-2 model offers the option to invert the output. - What is the package type of the LTC6994HS6-1#TRMPBF?
The package type is 6-Lead TSOT-23. - What is the operating temperature range of the LTC6994HS6-1#TRMPBF?
The operating temperature range is -40°C to 125°C. - What is the supply voltage range for the LTC6994HS6-1#TRMPBF?
The supply voltage range is 2.7V to 5.5V. - How can the delay time be adjusted?
The delay time can be dynamically adjusted via a separate control voltage. - What are some common applications for the LTC6994HS6-1#TRMPBF?
Common applications include industrial control systems, automotive systems, medical devices, aerospace and defense systems, and telecommunications equipment. - Where can I find more detailed specifications and documentation for the LTC6994HS6-1#TRMPBF?
You can find detailed specifications and documentation on the Analog Devices website or through distributors like Digi-Key and Mouser Electronics. - Is the LTC6994HS6-1#TRMPBF available in different temperature grades?
Yes, it is available in industrial grade (-40°C to 125°C).
