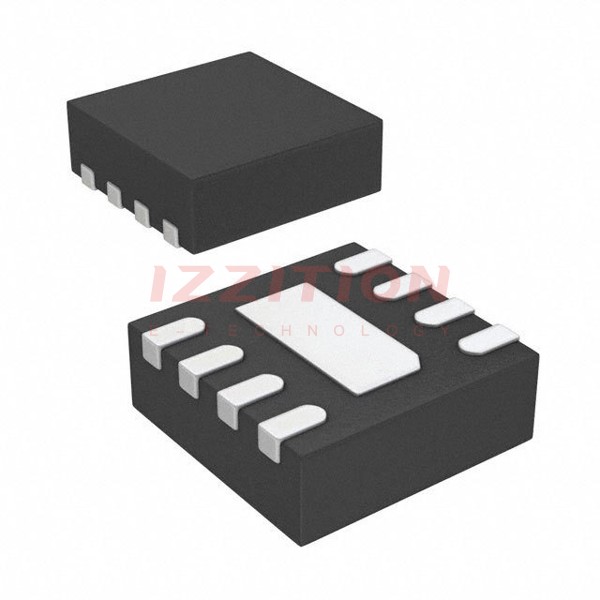

Analog Devices Inc. LTC6253IDC#TRMPBF

Manufacturer No:
LTC6253IDC#TRMPBF
Manufacturer:
Analog Devices Inc.
Package:
Tape & Reel (TR)
Description:
IC OPAMP GP 2 CIRCUIT 8DFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The LTC6253IDC#TRMPBF is a high-performance, dual operational amplifier (op amp) produced by Analog Devices Inc. This component is part of the LTC6253 family, known for its power efficiency, high bandwidth, and rail-to-rail input and output capabilities. It is designed to operate in a wide range of applications, including battery-powered equipment, high-speed data acquisition systems, and precision instrumentation.

Key Specifications

Parameter Conditions Min Typ Max Units
Supply Voltage Range 2.5 5.25 V
Input Offset Voltage (VOS) VCM = Half Supply -350 350 µV
Input Bias Current (IB) VCM = Half Supply -0.75 -1.15 0.75 µA
Common Mode Rejection Ratio (CMRR) VCM = 0V to 3.5V 85 82 105 dB
Power Supply Rejection Ratio (PSRR) VS = 2.5V to 5.25V, VCM = 1V 66.5 62 70 dB
Output Swing Low (VOL) No Load 25 40 65 mV
Bandwidth 720 MHz
Quiescent Current 3.5 mA

Key Features

  • High Bandwidth: 720MHz, making it suitable for high-speed applications.
  • Low Power Consumption: Quiescent current of 3.5mA per amplifier.
  • Rail-to-Rail Input and Output: Allows for full use of the supply voltage range.
  • High Common Mode Rejection Ratio (CMRR): Up to 105dB, ensuring good noise rejection.
  • Low Input Offset Voltage: As low as -350µV to 350µV, enhancing precision.
  • Low Input Bias Current: Typically -1.15µA, reducing the impact on input signals.

Applications

  • Battery-Powered Equipment: Ideal for portable and battery-powered devices due to its low power consumption.
  • High-Speed Data Acquisition Systems: Suitable for applications requiring high bandwidth and fast response times.
  • Precision Instrumentation: Used in precision measurement and control systems where low noise and high accuracy are critical.
  • Medical Devices: Can be used in medical equipment that requires high precision and reliability.

Q & A

  1. What is the bandwidth of the LTC6253IDC#TRMPBF?

    The bandwidth of the LTC6253IDC#TRMPBF is 720MHz.

  2. What is the quiescent current of the LTC6253IDC#TRMPBF?

    The quiescent current is 3.5mA per amplifier.

  3. What is the input offset voltage range of the LTC6253IDC#TRMPBF?

    The input offset voltage range is typically between -350µV and 350µV.

  4. What is the common mode rejection ratio (CMRR) of the LTC6253IDC#TRMPBF?

    The CMRR is up to 105dB.

  5. What is the power supply rejection ratio (PSRR) of the LTC6253IDC#TRMPBF?

    The PSRR is between 62dB and 70dB.

  6. What are the typical applications of the LTC6253IDC#TRMPBF?

    Typical applications include battery-powered equipment, high-speed data acquisition systems, precision instrumentation, and medical devices.

  7. What is the supply voltage range of the LTC6253IDC#TRMPBF?

    The supply voltage range is from 2.5V to 5.25V.

  8. What is the output swing low (VOL) of the LTC6253IDC#TRMPBF?

    The output swing low (VOL) is typically between 25mV and 65mV with no load.

  9. Is the LTC6253IDC#TRMPBF a rail-to-rail input and output amplifier?

    Yes, the LTC6253IDC#TRMPBF has rail-to-rail input and output capabilities.

  10. What is the input bias current of the LTC6253IDC#TRMPBF?

    The input bias current is typically -1.15µA.

Product Attributes

Amplifier Type:General Purpose
Number of Circuits:2
Output Type:Rail-to-Rail
Slew Rate:280V/µs
Gain Bandwidth Product:720 MHz
-3db Bandwidth:400 MHz
Current - Input Bias:1.4 µA
Voltage - Input Offset:100 µV
Current - Supply:4.25mA (x2 Channels)
Current - Output / Channel:100 mA
Voltage - Supply Span (Min):2.5 V
Voltage - Supply Span (Max):5.25 V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:8-WFDFN Exposed Pad
Supplier Device Package:8-DFN (2x2)
