Overview

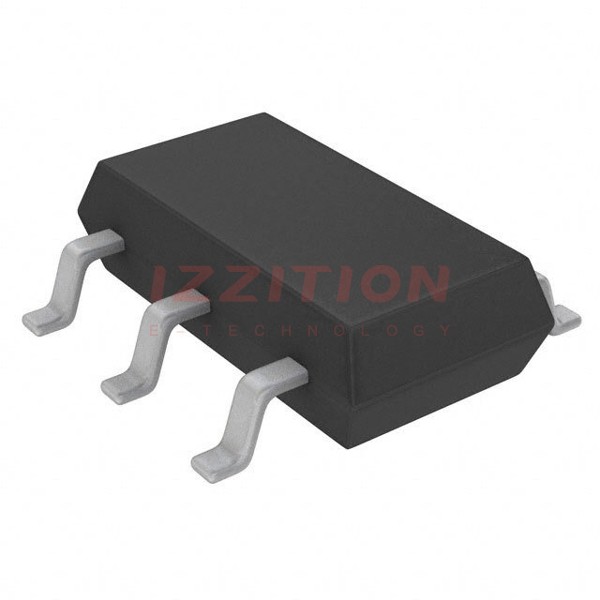

The LTC6252HS6#TRMPBF is a high-speed, low-power operational amplifier produced by Analog Devices Inc. This component is part of the LTC6252 family, known for its efficiency and performance. It is designed to operate with a low supply current of 3.5mA, making it suitable for battery-powered equipment and other low-power applications. The LTC6252HS6#TRMPBF offers rail-to-rail input and output capabilities, enhancing its versatility in various signal processing tasks.
Key Specifications
| Parameter | Conditions | Min | Typ | Max | Units | ||
|---|---|---|---|---|---|---|---|
| Input Offset Voltage (VOS) | VCM = Half Supply | -350 | -1000 | 50 | 350 | 1000 | µV |
| Input Bias Current (IB) | VCM = Half Supply | -0.75 | -1.15 | -0.1 | 0.75 | 1.15 | µA |
| Common Mode Rejection Ratio (CMRR) | VCM = 0V to 3.5V | 85 | 82 | 105 | dB | ||
| Power Supply Rejection Ratio (PSRR) | VS = 2.5V to 5.25V, VCM = 1V | 66.5 | 62 | 70 | dB | ||
| Supply Voltage Range | 2.5 | 5.25 | V | ||||
| Operating Temperature Range | -40°C | 125°C | °C | ||||
| Gain-Bandwidth Product (GBW) | f = 10MHz, RL = 1k to Half Supply | 0.9 | 0.67 | 2 | GHz | ||
| Slew Rate (SR) | AV = -6, 4V Output Step | 300 | 250 | 500 | V/µs |
Key Features
- Low Power Consumption: Operates with a supply current of 3.5mA, making it ideal for battery-powered equipment and low-power applications.
- Rail-to-Rail Input/Output: Provides full input and output swing, enhancing performance in a wide range of signal processing tasks.
- High Speed: Features a gain-bandwidth product of up to 2GHz and a slew rate of up to 500 V/µs.
- Independent Shutdown Pins: Available in some packages, allowing for individual channel shutdown.
- High Accuracy: Low input offset voltage and high common mode rejection ratio ensure precise signal processing.
Applications
- Battery Powered Equipment: Suitable for devices requiring low power consumption.
- Driving A/D Converters: Ideal for driving analog-to-digital converters due to its high speed and accuracy.
- Rail-to-Rail Buffer Amplifiers: Used in applications requiring full input and output swing.
- Active Filters: Utilized in active filter circuits due to its high frequency response.
- Low Voltage, High Frequency Signal Processing: Suitable for various high-frequency signal processing tasks.
Q & A
- What is the typical supply current of the LTC6252HS6#TRMPBF?
The typical supply current is 3.5mA.
- What is the operating temperature range of the LTC6252HS6#TRMPBF?
The operating temperature range is -40°C to 125°C.
- What is the gain-bandwidth product of the LTC6252HS6#TRMPBF?
The gain-bandwidth product is up to 2GHz.
- Does the LTC6252HS6#TRMPBF have rail-to-rail input/output capabilities?
Yes, it has rail-to-rail input and output capabilities.
- What is the typical slew rate of the LTC6252HS6#TRMPBF?
The typical slew rate is 250 V/µs.
- Can the LTC6252HS6#TRMPBF be used to drive A/D converters?
Yes, it is suitable for driving analog-to-digital converters.
- What is the common mode rejection ratio (CMRR) of the LTC6252HS6#TRMPBF?
The CMRR is typically 82 dB.
- What is the power supply rejection ratio (PSRR) of the LTC6252HS6#TRMPBF?
The PSRR is typically 62 dB.
- Does the LTC6252HS6#TRMPBF have independent shutdown pins?
Some packages of the LTC6252 family have independent shutdown pins, but this specific model may not; check the package details.
- What are the typical applications of the LTC6252HS6#TRMPBF?
Typical applications include battery-powered equipment, driving A/D converters, rail-to-rail buffer amplifiers, active filters, and low voltage, high frequency signal processing.
