Overview
The LTC2512IDKD-24#TRPBF is a high-performance, 24-bit Analog-to-Digital Converter (ADC) produced by Analog Devices Inc. This device is designed for low noise and low power consumption, making it suitable for a variety of applications, including industrial and medical equipment. The LTC2512IDKD-24#TRPBF features a fully differential input range and an integrated configurable digital filter, which enhances its precision and noise reduction capabilities.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Part Number | LTC2512IDKD-24#TRPBF |
| Resolution | 24 bits |
| Number of Channels | 1 Channel |
| Architecture | SAR (Successive Approximation Register) |
| Reference Type | Internal |
| Input Type | Differential |
| Interface Type | Serial (SPI) |
| Sampling Rate | Up to 400 kS/s |
| Analog Supply Voltage | 2.5V to 5.1V |
| Power Dissipation | 30 mW |
| Operating Temperature | -40°C to 85°C |

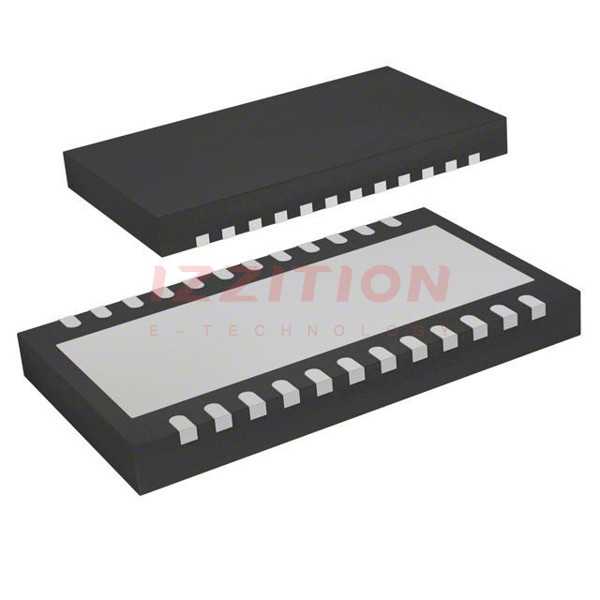

| Package / Case | 24-Lead DFN (7mm x 4mm w/ EP) |
| SFDR - Spurious Free Dynamic Range | 120 dB |
| SINAD - Signal to Noise and Distortion Ratio | 107 dB |
Key Features
- Integrated Configurable Digital Filter: Reduces measurement noise by lowpass filtering and down-sampling the data from the SAR ADC core, providing a 24-bit filtered output code and a 22-bit no latency composite code.
- Dual Output Codes: Provides both a 24-bit digitally filtered high precision low noise code and a 22-bit no latency composite code, which includes a 14-bit code for differential voltage and an 8-bit code for common mode voltage.
- Wide Common Mode Range: Supports a common mode range from 0V to VREF, simplifying analog signal conditioning requirements.
- Low Power Consumption: Operates with a power dissipation of 30 mW, making it energy-efficient.
- High Precision and Low Noise: Offers high precision and low noise performance, suitable for demanding applications).
- Synchronization Capability: Multiple devices can be easily synchronized using the SYNC pin).
Applications
- Industrial Equipment: Suitable for industrial control systems and monitoring applications due to its high precision and reliability).
- Medical Equipment: Used in medical devices requiring high resolution and low noise, such as medical imaging and diagnostic equipment).
- Automotive Systems: Can be used in automotive applications that require precise and reliable analog-to-digital conversion).
- Test and Measurement: Ideal for test and measurement equipment where high accuracy and low noise are critical).
Q & A
- What is the resolution of the LTC2512IDKD-24#TRPBF ADC?
The resolution of the LTC2512IDKD-24#TRPBF is 24 bits).
- What type of architecture does the LTC2512IDKD-24#TRPBF use?
The LTC2512IDKD-24#TRPBF uses a Successive Approximation Register (SAR) architecture).
- What is the sampling rate of the LTC2512IDKD-24#TRPBF?
The sampling rate of the LTC2512IDKD-24#TRPBF is up to 400 kS/s).
- What is the power dissipation of the LTC2512IDKD-24#TRPBF?
The power dissipation of the LTC2512IDKD-24#TRPBF is 30 mW).
- What type of input does the LTC2512IDKD-24#TRPBF support?
The LTC2512IDKD-24#TRPBF supports differential inputs).
- Can multiple LTC2512IDKD-24#TRPBF devices be synchronized?
Yes, multiple devices can be easily synchronized using the SYNC pin).
- What is the operating temperature range of the LTC2512IDKD-24#TRPBF?
The operating temperature range is -40°C to 85°C).
- What is the package type of the LTC2512IDKD-24#TRPBF?
The package type is a 24-Lead DFN (7mm x 4mm w/ EP)).
- What are the key features of the integrated digital filter in the LTC2512IDKD-24#TRPBF?
The integrated digital filter provides a 24-bit filtered output code and a 22-bit no latency composite code, and can be configured for different down-sampling factors).
- What are some common applications of the LTC2512IDKD-24#TRPBF?
Common applications include industrial equipment, medical equipment, automotive systems, and test and measurement equipment).
