Overview

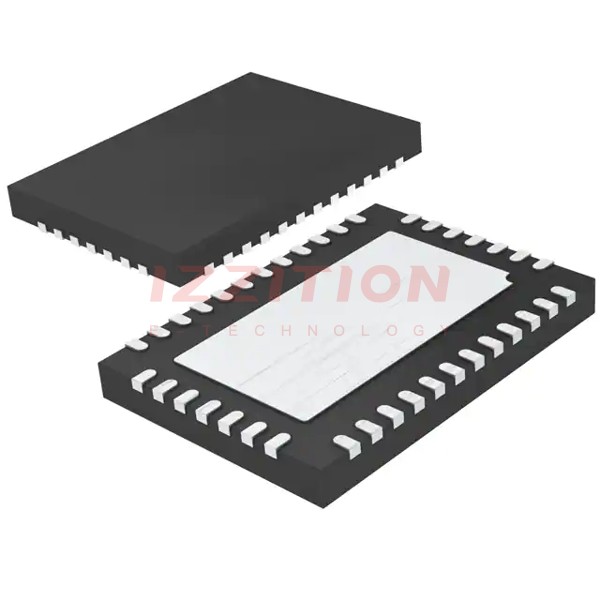

The LTC2448CUHF#TRPBF is a high-performance, 24-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. This device is part of the LTC2448 family and is known for its high speed and precision. It features a delta-sigma architecture, which provides excellent noise performance and high resolution. The ADC is packaged in a 38-lead QFN (5mm x 7mm with EP) package, making it suitable for a variety of applications where space is a concern.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 24 bits |
| Conversion Rate | Up to 8 ksamples/s |
| Input Type | Differential |
| Number of Channels | 8 (or 16 in pseudo-differential mode) |
| Package Type | 38-Lead QFN (5mm x 7mm with EP) |
| Operating Temperature Range | 0°C to 70°C |
| Supply Voltage | 2.7V to 5.25V |
Key Features
- High-resolution 24-bit delta-sigma ADC
- High conversion rate of up to 8 ksamples/s
- Differential input channels with pseudo-differential mode for 16 channels
- Low noise and high accuracy
- Compact 38-lead QFN package
- Wide operating temperature range from 0°C to 70°C
- Flexible supply voltage range from 2.7V to 5.25V
Applications
The LTC2448CUHF#TRPBF is suitable for a wide range of applications requiring high precision and speed, such as:
- Industrial automation and control systems
- Medical devices and diagnostic equipment
- Aerospace and defense systems
- Test and measurement instruments
- Automotive systems requiring high accuracy and reliability
Q & A
- What is the resolution of the LTC2448CUHF#TRPBF ADC?
The LTC2448CUHF#TRPBF has a resolution of 24 bits. - What is the maximum conversion rate of the LTC2448CUHF#TRPBF?
The maximum conversion rate is up to 8 ksamples/s. - What type of input does the LTC2448CUHF#TRPBF support?
The LTC2448CUHF#TRPBF supports differential input channels. - How many input channels does the LTC2448CUHF#TRPBF have?
The device has 8 differential input channels, or 16 channels in pseudo-differential mode. - What is the package type of the LTC2448CUHF#TRPBF?
The package type is a 38-lead QFN (5mm x 7mm with EP). - What is the operating temperature range of the LTC2448CUHF#TRPBF?
The operating temperature range is from 0°C to 70°C. - What is the supply voltage range for the LTC2448CUHF#TRPBF?
The supply voltage range is from 2.7V to 5.25V. - What are some common applications for the LTC2448CUHF#TRPBF?
Common applications include industrial automation, medical devices, aerospace and defense systems, test and measurement instruments, and automotive systems. - Where can I find detailed specifications for the LTC2448CUHF#TRPBF?
Detailed specifications can be found on the official Analog Devices website, as well as on distributor websites like Digi-Key and Mouser. - Is the LTC2448CUHF#TRPBF available in different package options?
No, the LTC2448CUHF#TRPBF is specifically available in a 38-lead QFN package.
