Overview

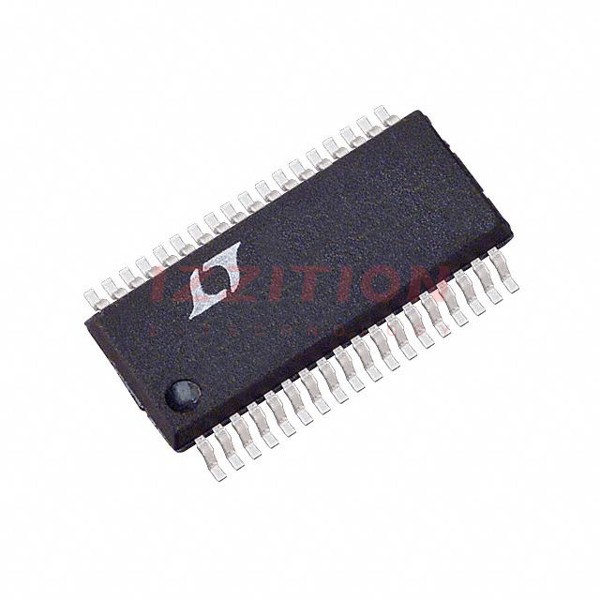

The LTC2442IG#PBF is a high-performance, 24-bit, delta-sigma analog-to-digital converter (ADC) produced by Analog Devices Inc. This device is known for its high accuracy and low noise, making it suitable for a variety of precision measurement applications. The LTC2442IG#PBF features a dual-channel configuration, allowing for simultaneous conversion of two analog input signals. It operates at a sampling rate of up to 8 ksps and communicates via a serial interface.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 24 bits |
| Number of Channels | 2 |
| Sampling Rate | Up to 8 ksps |
| Input Type | Differential |
| Interface | Serial (SPI-compatible) |
| Operating Voltage | 2.7V to 5.5V |
| Package Type | 36-pin SSOP |
| Temperature Range | -40°C to 85°C |
| RoHS Compliance | Yes |
Key Features
- High-resolution 24-bit delta-sigma ADC with low noise and high accuracy.
- Dual-channel operation for simultaneous conversion of two analog input signals.
- Sampling rates up to 8 ksps.
- Serial interface compatible with SPI.
- Wide operating voltage range of 2.7V to 5.5V.
- Compact 36-pin SSOP package.
- Operating temperature range from -40°C to 85°C.
- RoHS compliant.
Applications
- Precision measurement instruments.
- Industrial control systems.
- Medical devices requiring high accuracy.
- Aerospace and defense applications.
- Automotive systems needing reliable and precise data acquisition.
Q & A
- What is the resolution of the LTC2442IG#PBF ADC? The LTC2442IG#PBF has a resolution of 24 bits.
- How many channels does the LTC2442IG#PBF support? The LTC2442IG#PBF supports two channels.
- What is the maximum sampling rate of the LTC2442IG#PBF? The maximum sampling rate is up to 8 ksps.
- What type of interface does the LTC2442IG#PBF use? The LTC2442IG#PBF uses a serial interface compatible with SPI.
- What is the operating voltage range of the LTC2442IG#PBF? The operating voltage range is from 2.7V to 5.5V.
- What is the package type of the LTC2442IG#PBF? The package type is a 36-pin SSOP.
- Is the LTC2442IG#PBF RoHS compliant? Yes, the LTC2442IG#PBF is RoHS compliant.
- What is the operating temperature range of the LTC2442IG#PBF? The operating temperature range is from -40°C to 85°C.
- What are some common applications of the LTC2442IG#PBF? Common applications include precision measurement instruments, industrial control systems, medical devices, aerospace and defense, and automotive systems.
- Where can I find more detailed specifications and datasheets for the LTC2442IG#PBF? Detailed specifications and datasheets can be found on the official Analog Devices website or through distributors like Digi-Key, Mouser, and Heisener.
