Overview
The LTC2387IUH-18#TRPBF is a high-performance, 18-bit successive approximation register (SAR) analog-to-digital converter (ADC) produced by Analog Devices Inc. This device is renowned for its low noise, high speed, and excellent linearity, making it ideal for a wide range of applications including high-speed imaging, instrumentation, and communications. The ADC operates at a sample rate of up to 15 Msps and features no latency operation, which is particularly beneficial for high-speed control loop applications.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 18 bits |
| Sample Rate | Up to 15 Msps |
| Input Type | Differential |

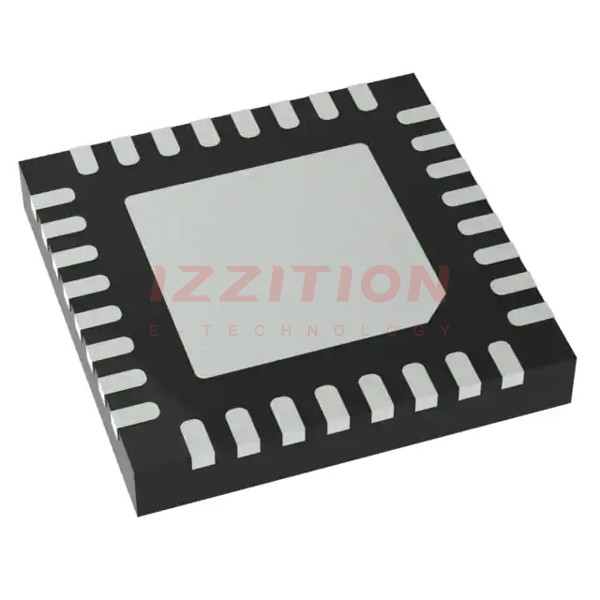

| Package | 32-Lead QFN (5mm x 5mm x 0.75mm w/ EP) |
| Reference | Internal 20ppm/°C |
| Interface | Serial LVDS |
| Operating Temperature | -40°C to 85°C (Industrial Grade) |
Key Features
- Low noise and high speed operation with up to 15 Msps sample rate.
- Excellent linearity and wide dynamic range.
- No latency operation, suitable for high-speed control loop applications.
- Internal 20ppm/°C reference.
- Serial LVDS interface.
- Differential input, single channel configuration.
- Available in a compact 32-Lead QFN package.
Applications
- High-speed imaging and medical imaging systems.
- Instrumentation and data acquisition systems.
- Communications systems requiring wide dynamic range and significant signal bandwidth.
- High-speed control loop applications.
- Industrial and automotive applications where high precision and speed are critical.
Q & A
- What is the resolution of the LTC2387IUH-18#TRPBF ADC? The resolution is 18 bits.
- What is the maximum sample rate of the LTC2387IUH-18#TRPBF? The maximum sample rate is up to 15 Msps.
- What type of input does the LTC2387IUH-18#TRPBF support? It supports differential inputs.
- What is the package type of the LTC2387IUH-18#TRPBF? It is available in a 32-Lead QFN package (5mm x 5mm x 0.75mm w/ EP).
- Does the LTC2387IUH-18#TRPBF have an internal reference? Yes, it has an internal 20ppm/°C reference.
- What interface does the LTC2387IUH-18#TRPBF use? It uses a serial LVDS interface.
- What are the typical applications of the LTC2387IUH-18#TRPBF? Typical applications include high-speed imaging, instrumentation, communications, and high-speed control loop applications.
- Is the LTC2387IUH-18#TRPBF suitable for industrial and automotive applications? Yes, it is suitable due to its high precision and speed.
- What is the operating temperature range of the LTC2387IUH-18#TRPBF? The operating temperature range is -40°C to 85°C (Industrial Grade).
- Does the LTC2387IUH-18#TRPBF have any latency in its operation? No, it operates with no latency.
