Overview

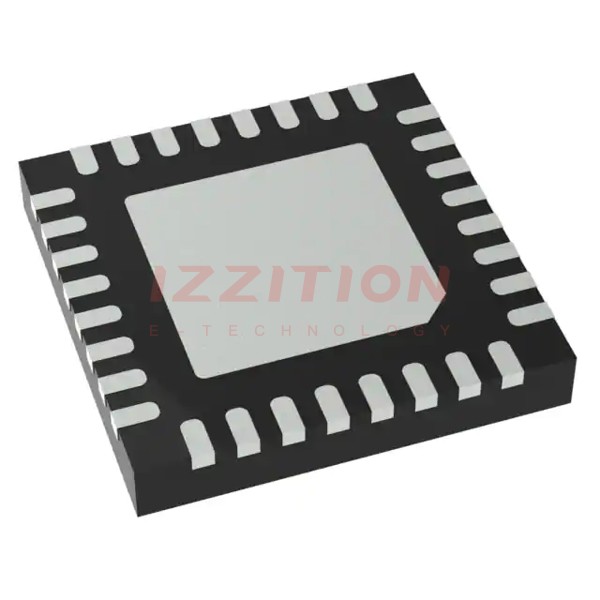

The LTC2387IUH-16#PBF is a high-performance, 16-bit successive approximation register (SAR) analog-to-digital converter (ADC) produced by Analog Devices Inc. This component is designed for applications requiring high accuracy and speed, making it suitable for a variety of industrial, medical, and automotive uses. The ADC features a compact 32-lead QFN package, enhancing its usability in space-constrained designs.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Bits | 16 |
| Number of Inputs | 1 |
| Resolution | 16 bits |
| Sampling Rate | 15 MSPS |
| Package | 32-QFN (5x5) |
| Minimum Operating Temperature | -40°C |
| Minimum Supply Voltage | 4.75V |
Key Features
- High-Speed Conversion: The LTC2387IUH-16#PBF operates at a sampling rate of 15 MSPS, making it ideal for high-speed data acquisition applications.
- High Resolution: With a 16-bit resolution, this ADC provides precise digital representations of analog signals.
- Compact Package: The 32-lead QFN package is designed to save board space, making it suitable for compact designs.
- Low Power Consumption: The component is optimized for low power consumption, which is beneficial for battery-powered devices and energy-efficient systems.
Applications
- Industrial Automation: Used in control systems, data acquisition, and monitoring applications.
- Medical Devices: Suitable for medical imaging, patient monitoring, and diagnostic equipment.
- Automotive Systems: Applied in vehicle control systems, safety features, and infotainment systems.
- Aerospace and Defense: Used in various military and aerospace applications requiring high reliability and precision.
Q & A
- What is the resolution of the LTC2387IUH-16#PBF ADC?
The resolution of the LTC2387IUH-16#PBF is 16 bits. - What is the sampling rate of the LTC2387IUH-16#PBF?
The sampling rate is 15 MSPS. - What is the minimum operating temperature for the LTC2387IUH-16#PBF?
The minimum operating temperature is -40°C. - What is the package type of the LTC2387IUH-16#PBF?
The package type is 32-QFN (5x5). - What is the minimum supply voltage for the LTC2387IUH-16#PBF?
The minimum supply voltage is 4.75V. - Is the LTC2387IUH-16#PBF suitable for high-speed applications?
Yes, it is suitable for high-speed applications due to its 15 MSPS sampling rate. - What are some common applications of the LTC2387IUH-16#PBF?
Common applications include industrial automation, medical devices, automotive systems, and aerospace and defense. - How many inputs does the LTC2387IUH-16#PBF have?
The LTC2387IUH-16#PBF has one input. - Is the LTC2387IUH-16#PBF available in different package options?
No, the specified model is available in a 32-QFN package. - Where can I find detailed specifications and datasheets for the LTC2387IUH-16#PBF?
Detailed specifications and datasheets can be found on the official Analog Devices website, as well as on distributor sites like Digi-Key and Mouser.
