Overview
The LTC2386IUH-18#PBF is a high-performance, 18-bit successive approximation register (SAR) analog-to-digital converter (ADC) produced by Analog Devices Inc. This device is known for its high accuracy, low power consumption, and compact design, making it suitable for a variety of applications requiring precise analog-to-digital conversion.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 18 bits |
| Number of Inputs | 1 |
| Conversion Type | SAR (Successive Approximation Register) |

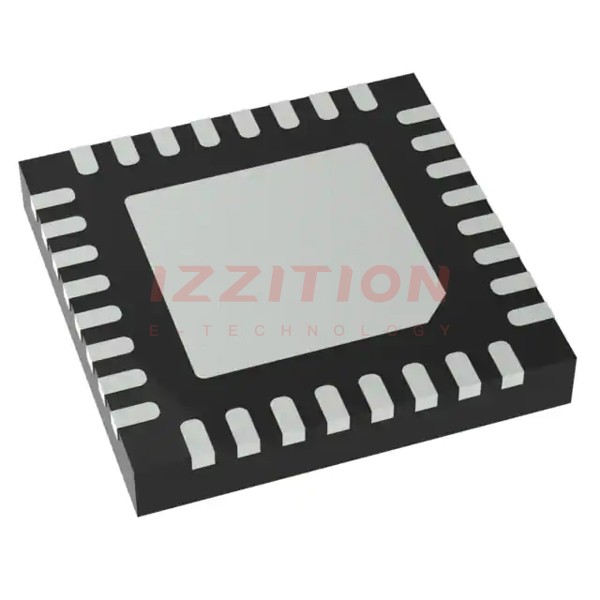

| Package Type | 32-QFN (5x5 mm) |
| Operating Temperature Range | -40°C to 85°C |
| Supply Voltage | 2.5V or 5V |
| Power Consumption | Typically 3.5 mW at 2.5V supply |
| Sampling Rate | Up to 1.5 Msps |
Key Features
- High resolution of 18 bits, providing high accuracy in analog-to-digital conversion.
- Low power consumption, making it suitable for battery-powered devices.
- Compact 32-QFN package, ideal for space-constrained applications.
- Wide operating temperature range from -40°C to 85°C.
- Flexible supply voltage options of 2.5V or 5V.
- High sampling rate of up to 1.5 Msps.
Applications
The LTC2386IUH-18#PBF is versatile and can be used in various applications, including:
- Industrial automation and control systems.
- Medical devices requiring high precision and low power consumption.
- Aerospace and defense systems where reliability and accuracy are critical.
- Automotive systems, particularly in safety and control applications.
- Test and measurement equipment.
Q & A
- What is the resolution of the LTC2386IUH-18#PBF ADC? The resolution is 18 bits.
- What type of conversion does the LTC2386IUH-18#PBF use? It uses successive approximation register (SAR) conversion.
- What is the package type of the LTC2386IUH-18#PBF? It is packaged in a 32-QFN (5x5 mm).
- What is the operating temperature range of the LTC2386IUH-18#PBF? The operating temperature range is from -40°C to 85°C.
- What are the supply voltage options for the LTC2386IUH-18#PBF? The supply voltage options are 2.5V or 5V.
- What is the typical power consumption of the LTC2386IUH-18#PBF? The typical power consumption is 3.5 mW at a 2.5V supply.
- What is the maximum sampling rate of the LTC2386IUH-18#PBF? The maximum sampling rate is up to 1.5 Msps.
- In what types of applications is the LTC2386IUH-18#PBF commonly used? It is commonly used in industrial automation, medical devices, aerospace and defense, automotive systems, and test and measurement equipment.
- Where can I find detailed specifications and datasheets for the LTC2386IUH-18#PBF? Detailed specifications and datasheets can be found on the official Analog Devices website and through distributors like Digi-Key and Mouser.
- Is the LTC2386IUH-18#PBF available for immediate shipment? Yes, it is available for immediate shipment from various distributors.
