Description:

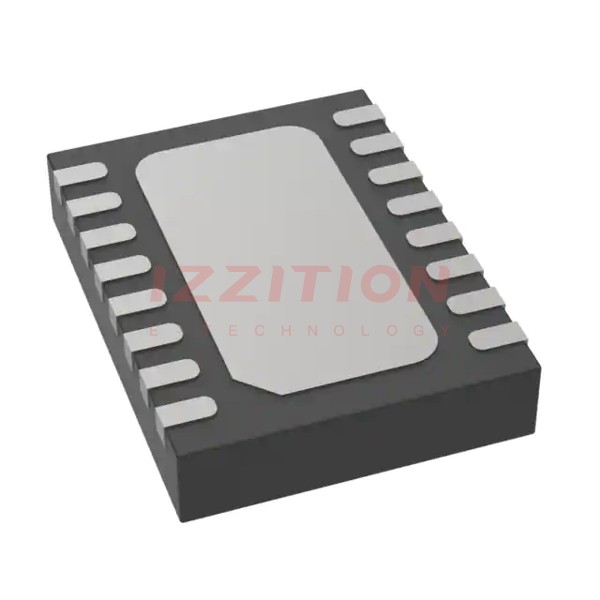

IC ADC 16BIT SAR 16DFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The LTC2381IDE-16#PBF is a 16-bit, 1-channel analog-to-digital converter (ADC) produced by Analog Devices Inc. This device is part of the LTC2381 series and is known for its high accuracy and reliability. It features a successive approximation register (SAR) architecture, which provides a balance between speed and power efficiency. The ADC operates at a sampling rate of 250 kSPS and is packaged in a 16-lead DFN (4x3) package with an exposed pad, making it suitable for a variety of applications requiring precise analog-to-digital conversion.

Key Specifications

ParameterValue
Number of Bits16
Number of Channels1
Sampling Rate250 kSPS
Supply Voltage (Digital and Analog)2.375 V ~ 2.625 V
Reference TypeExternal
Input TypeDifferential
Operating Temperature-40°C ~ 85°C
Package Type16-DFN (4x3) with Exposed Pad
Lead Free Status / RoHS StatusLead free / RoHS Compliant
Moisture Sensitivity Level (MSL)1 (Unlimited)

Key Features

  • SAR Architecture: Successive approximation register architecture for high accuracy and efficiency.
  • High Resolution: 16-bit resolution for precise analog-to-digital conversion.
  • Single Channel: Single-channel operation for focused application needs.
  • External Reference: Supports an external reference for flexible system design.
  • Differential Input: Differential input type for improved noise rejection and signal integrity.
  • SPI Interface: Serial peripheral interface (SPI) for easy communication with microcontrollers and other digital systems.
  • Compact Packaging: 16-lead DFN (4x3) package with an exposed pad, suitable for space-constrained designs.

Applications

The LTC2381IDE-16#PBF is versatile and can be used in a variety of applications, including:

  • Industrial Automation: For precise measurement and control in industrial environments.
  • Medical Devices: In medical equipment requiring high accuracy and reliability, such as patient monitoring systems.
  • Aerospace and Defense: For applications demanding high precision and robustness.
  • Automotive Systems: In automotive sensors and control systems where accuracy and reliability are crucial.
  • Test and Measurement Equipment: For building high-precision test and measurement instruments.

Q & A

  1. What is the resolution of the LTC2381IDE-16#PBF ADC?
    The LTC2381IDE-16#PBF has a resolution of 16 bits.
  2. What is the sampling rate of the LTC2381IDE-16#PBF?
    The sampling rate is 250 kSPS.
  3. What type of package does the LTC2381IDE-16#PBF come in?
    The device is packaged in a 16-lead DFN (4x3) package with an exposed pad.
  4. Is the LTC2381IDE-16#PBF RoHS compliant?
    Yes, the LTC2381IDE-16#PBF is lead free and RoHS compliant.
  5. What is the operating temperature range of the LTC2381IDE-16#PBF?
    The operating temperature range is -40°C to 85°C.
  6. What type of input does the LTC2381IDE-16#PBF support?
    The device supports differential inputs.
  7. What is the architecture of the LTC2381IDE-16#PBF ADC?
    The ADC uses a successive approximation register (SAR) architecture.
  8. Does the LTC2381IDE-16#PBF support an external reference?
    Yes, it supports an external reference.
  9. What interface does the LTC2381IDE-16#PBF use for communication?
    The device uses a serial peripheral interface (SPI) for communication.
  10. What is the moisture sensitivity level (MSL) of the LTC2381IDE-16#PBF?
    The MSL is 1 (Unlimited).

Product Attributes

Number of Bits:16
Sampling Rate (Per Second):250k
Number of Inputs:1
Input Type:Differential
Data Interface:SPI
Configuration:S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:SAR
Reference Type:External
Voltage - Supply, Analog:2.375V ~ 2.625V
Voltage - Supply, Digital:2.375V ~ 2.625V
Features:-
Operating Temperature:-40°C ~ 85°C
Package / Case:16-WFDFN Exposed Pad
Supplier Device Package:16-DFN (4x3)
Mounting Type:Surface Mount
