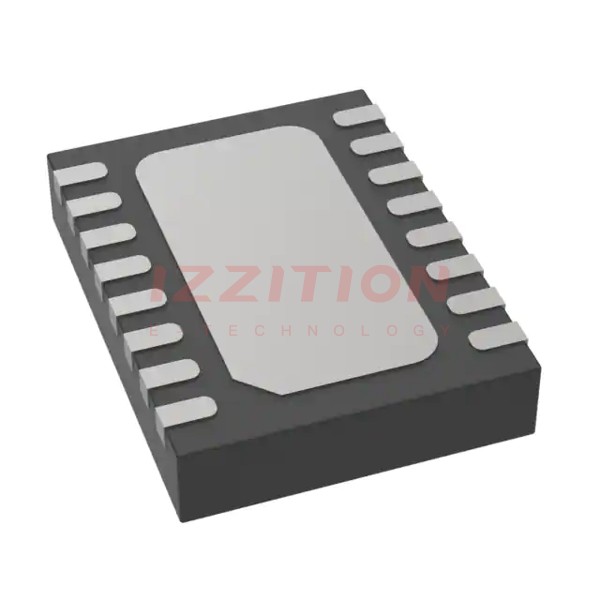

Analog Devices Inc. LTC2368CDE-24#PBF

Manufacturer No:
LTC2368CDE-24#PBF
Manufacturer:
Analog Devices Inc.
Package:
Tube
Description:
IC ADC 24BIT SAR 16DFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The LTC2368CDE-24#PBF is a high-performance, 24-bit successive approximation register (SAR) analog-to-digital converter (ADC) produced by Analog Devices Inc. This component operates from a single 2.5V supply and is known for its low noise, low power consumption, and high speed. It features a pseudo-differential unipolar input range and an integrated digital averaging filter, which significantly enhances dynamic range and signal quality.

Key Specifications

Parameter Value
Resolution 24 bits
Sampling Rate 1 Msps (Mega samples per second)
Supply Voltage 2.5V (2.375V to 2.625V)
Input Type Pseudo-differential unipolar
Reference Voltage Range 2.5V to 5.1V
Power Consumption 21mW (Typical)
Integral Nonlinearity (INL) ±4.5ppm maximum
No Missing Codes At 24 bits
Package 16-DFN (4x3) Exposed Pad
Interface SPI-compatible serial interface (1.8V, 2.5V, 3.3V, 5V logic)

Key Features

  • Low noise and low power consumption, making it suitable for power-sensitive applications.
  • Integrated digital averaging filter that can average 1 to 65536 conversion results in real-time, significantly improving dynamic range.
  • High speed SPI-compatible serial interface with daisy-chain mode support.
  • Automatic power-down between conversions to reduce power dissipation at lower sampling rates.
  • No separate programming interface or configuration register required for the digital averaging filter.

Applications

  • High-precision data acquisition systems.
  • Medical devices requiring high accuracy and low noise.
  • Aerospace and defense applications where high resolution and reliability are critical.
  • Industrial automation and control systems.
  • Test and measurement equipment.

Q & A

  1. What is the resolution of the LTC2368CDE-24#PBF ADC?

    The resolution is 24 bits.

  2. What is the sampling rate of the LTC2368CDE-24#PBF?

    The sampling rate is 1 Msps (Mega samples per second).

  3. What is the supply voltage range for the LTC2368CDE-24#PBF?

    The supply voltage range is 2.375V to 2.625V.

  4. What type of input does the LTC2368CDE-24#PBF support?

    The input type is pseudo-differential unipolar.

  5. What is the power consumption of the LTC2368CDE-24#PBF?

    The typical power consumption is 21mW.

  6. Does the LTC2368CDE-24#PBF have an integrated digital averaging filter?

    Yes, it has an integrated digital averaging filter.

  7. What is the interface type of the LTC2368CDE-24#PBF?

    The interface is SPI-compatible serial interface supporting 1.8V, 2.5V, 3.3V, and 5V logic.

  8. Does the LTC2368CDE-24#PBF support daisy-chain mode?

    Yes, it supports daisy-chain mode.

  9. How does the LTC2368CDE-24#PBF manage power consumption at lower sampling rates?

    The component automatically powers down between conversions to reduce power dissipation.

  10. Is any separate programming required for the digital averaging filter?

    No, separate programming or configuration register is not required.

Product Attributes

Number of Bits:24
Sampling Rate (Per Second):1M
Number of Inputs:1
Input Type:Pseudo-Differential
Data Interface:SPI
Configuration:S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:SAR
Reference Type:External
Voltage - Supply, Analog:2.375V ~ 2.625V
Voltage - Supply, Digital:2.375V ~ 2.625V
Features:-
Operating Temperature:0°C ~ 70°C
Package / Case:16-WFDFN Exposed Pad
Supplier Device Package:16-DFN (4x3)
Mounting Type:Surface Mount
