Overview
The LTC2367IDE-16#PBF is a 16-bit, high-speed successive approximation register (SAR) analog-to-digital converter (ADC) produced by Analog Devices Inc. This device operates from a single 2.5V supply and supports a pseudo-differential unipolar input range from 0V to VREF, where VREF can range from 2.5V to 5.1V. It is designed for low noise and low power consumption, making it suitable for a variety of high-speed applications.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 16 bits |
| Sampling Rate | 500 ksps |
| Supply Voltage | 2.5V |
| Input Range | 0V to VREF (2.5V to 5.1V) |
| Power Consumption | 6.8 mW |
| Integral Nonlinearity (INL) | ±0.75 LSB |
| Signal-to-Noise Ratio (SNR) | 94.7 dB |
| Interface | SPI-compatible serial interface (1.8V, 2.5V, 3.3V, 5V logic) |

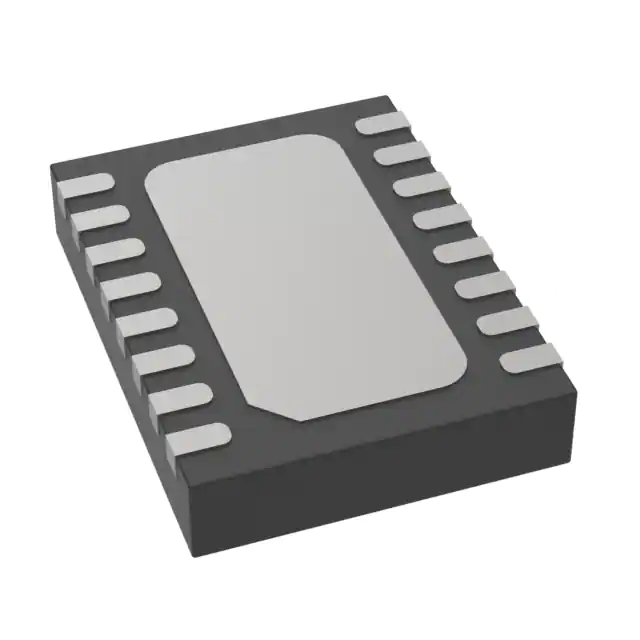

| Package | 16-lead DFN |
Key Features
- Low noise and low power consumption
- Pseudo-differential unipolar input structure to reduce common-mode noise
- High-speed SPI-compatible serial interface with daisy-chain mode
- No cycle latency and fast 500 ksps throughput
- Internal oscillator for setting conversion time
- ESD protection diodes at the input
- Supports multiple logic levels (1.8V, 2.5V, 3.3V, 5V)
Applications
The LTC2367IDE-16#PBF is ideally suited for a wide range of high-speed applications, including:
- Industrial automation and control systems
- Medical devices and diagnostic equipment
- Aerospace and defense systems
- High-speed data acquisition systems
- Automotive and transportation systems
Q & A
- What is the resolution of the LTC2367IDE-16#PBF ADC?
The resolution of the LTC2367IDE-16#PBF is 16 bits.
- What is the sampling rate of the LTC2367IDE-16#PBF?
The sampling rate is 500 ksps.
- What is the supply voltage for the LTC2367IDE-16#PBF?
The supply voltage is 2.5V.
- What is the input range of the LTC2367IDE-16#PBF?
The input range is from 0V to VREF, where VREF can range from 2.5V to 5.1V.
- How much power does the LTC2367IDE-16#PBF consume?
The power consumption is 6.8 mW.
- What is the integral nonlinearity (INL) of the LTC2367IDE-16#PBF?
The INL is ±0.75 LSB.
- What is the signal-to-noise ratio (SNR) of the LTC2367IDE-16#PBF?
The SNR is 94.7 dB.
- What type of interface does the LTC2367IDE-16#PBF support?
The LTC2367IDE-16#PBF supports an SPI-compatible serial interface with multiple logic levels (1.8V, 2.5V, 3.3V, 5V).
- Does the LTC2367IDE-16#PBF have any ESD protection?
Yes, the LTC2367IDE-16#PBF has ESD protection diodes at the input.
- What is the package type of the LTC2367IDE-16#PBF?
The package type is a 16-lead DFN.
