Overview
The LTC2345CUK-18#PBF is a high-performance, 18-bit, octal analog-to-digital converter (ADC) produced by Analog Devices Inc. This device is part of the LTC2345 family and is known for its high accuracy and low noise performance. It features a successive approximation register (SAR) architecture, making it suitable for a wide range of applications requiring precise analog-to-digital conversion.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 18 bits |
| Number of Channels | 8 |
| Conversion Rate | 1.8 Msps |

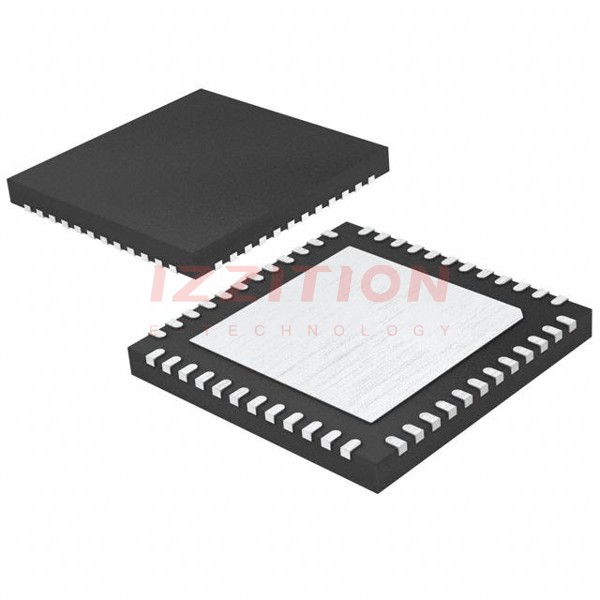

| Package Type | 48-Lead QFN (7mm x 7mm x 0.75mm) |
| Interface | Parallel, SPI |
| Operating Voltage Range | 2.97 V to 3.3 V |
| Operating Temperature Range | 0°C to 70°C |
Key Features
- High-resolution 18-bit ADC with low noise and high accuracy.
- Octal channel configuration, allowing for simultaneous sampling of eight analog inputs.
- Successive approximation register (SAR) architecture for fast and efficient conversions.
- Parallel and SPI interface options for flexible data transfer.
- Compact 48-lead QFN package with an exposed pad for improved thermal performance.
Applications
The LTC2345CUK-18#PBF is suitable for various applications that require high-precision analog-to-digital conversion, including:
- Industrial automation and control systems.
- Medical devices and diagnostic equipment.
- Aerospace and defense systems.
- High-end data acquisition systems.
- Automotive safety and control systems.
Q & A
- What is the resolution of the LTC2345CUK-18#PBF ADC?
The LTC2345CUK-18#PBF has a resolution of 18 bits. - How many analog input channels does the LTC2345CUK-18#PBF have?
The device has 8 analog input channels. - What is the conversion rate of the LTC2345CUK-18#PBF?
The conversion rate is 1.8 Msps (mega-samples per second). - What package type is the LTC2345CUK-18#PBF available in?
The device is available in a 48-Lead QFN package. - What are the interface options for the LTC2345CUK-18#PBF?
The device supports both parallel and SPI interfaces. - What is the operating voltage range for the LTC2345CUK-18#PBF?
The operating voltage range is from 2.97 V to 3.3 V. - What is the operating temperature range for the LTC2345CUK-18#PBF?
The operating temperature range is from 0°C to 70°C. - What architecture does the LTC2345CUK-18#PBF use for analog-to-digital conversion?
The device uses a successive approximation register (SAR) architecture. - Is the LTC2345CUK-18#PBF suitable for high-precision applications?
Yes, the LTC2345CUK-18#PBF is designed for high-precision applications due to its low noise and high accuracy. - Where can I find detailed specifications and datasheets for the LTC2345CUK-18#PBF?
Detailed specifications and datasheets can be found on the Analog Devices website and through distributors like Digi-Key and Mouser.
